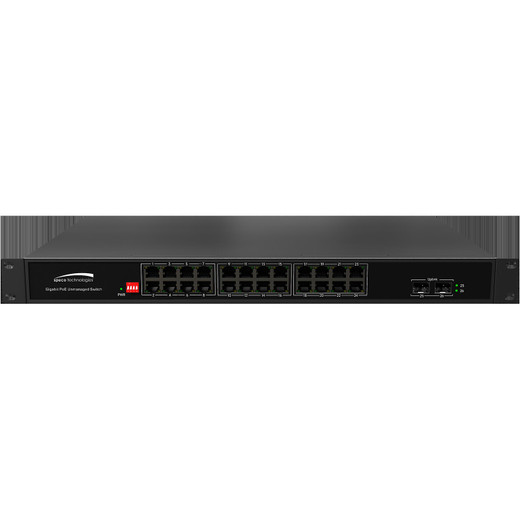

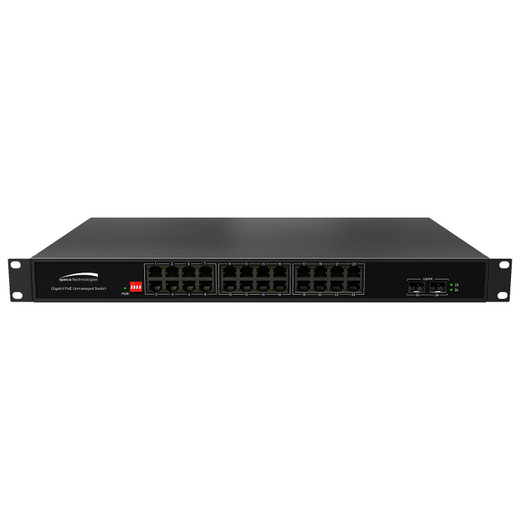

Speco Technologies P24S26G2 24-Port Gigabit PoE+ Unmanaged Switch
The Speco Technologies P24S26G2 is a dedicated network switching solution engineered for mid-scale IP security camera and device deployments. This 24-port gigabit PoE+ compliant unmanaged switch provides straightforward connectivity and power delivery across distributed surveillance installations without the complexity of managed switching. The P24S26G2 delivers reliable Layer 2 switching with 26 total ports, enabling integrators to consolidate camera power and data through a single infrastructure point.
Overview
Unmanaged network switches eliminate configuration overhead in standardized deployments where VLAN segmentation, QoS tuning, and advanced diagnostics are not required. The P24S26G2 addresses this use case by delivering plug-and-play gigabit connectivity with PoE+ power support across all 24 data ports. This architecture suits small to medium commercial security projects, retail chains, educational facilities, and multi-site installations where consistent, no-touch operation is preferred over feature-rich management interfaces. When you need cameras up and running fast without network engineer involvement, an unmanaged approach cuts commissioning time significantly—no IP address management, no firmware updates, no VLAN planning. See our network switch selection guide for more context on managed versus unmanaged deployment strategies.
Key Features
- 24 Gigabit PoE+ Ports: All 24 ports support IEEE 802.3at PoE+ standard, delivering up to 30W per port. This means a single cable carries power and data to standard IP cameras, dome units with heaters, motorized pan-tilt-zoom mechanisms, and access control readers without separate power injectors. No need to run parallel power infrastructure or manage power injection schedules—every port powers simultaneously.
- 26 Total Ports: Two additional uplink ports extend connectivity options for network backbone aggregation or connection to core infrastructure, NVRs, or management servers without consuming a PoE+ port.
- Unmanaged Architecture: No software licensing, no IP address assignment required, and no VLAN configuration needed. Plug in power, connect cameras, and operate immediately. This eliminates on-site configuration errors and reduces commissioning labor—valuable when deploying across multiple locations or when IT resources are limited.
- Gigabit Throughput on All Ports: All ports operate at 1000 Mbps, supporting HD and 4K camera streams with minimal latency and packet loss. Gigabit speed ensures you won't bottleneck 4K deployments or face congestion when multiple cameras stream simultaneously to a central NVR.
- Simultaneous PoE+ Delivery: All 24 ports deliver PoE+ power at the same time—no priority-based power management, no device staging during installation. This eliminates the need to power up cameras in phases and makes large-scale retrofits or expansions straightforward.
- Compact Industrial Form Factor: Designed for rack mounting or wall installation in network closets, control rooms, and equipment cabinets typical of security integrations. Integrates cleanly into existing network infrastructure without requiring additional space or specialized enclosures.
Integration and Compatibility
The P24S26G2 operates transparently with all ONVIF-compliant IP cameras, NVRs, and VMS platforms. No driver installation, firmware updates, or management console access is needed. Integrators connect cameras directly to any of the 24 PoE+ ports; the switch automatically forwards traffic to the recording device or management software without manual intervention. This plug-and-play model reduces commissioning time and minimizes on-site configuration errors common in larger deployments requiring managed switching. Whether you're using open-standards cameras or vendor-specific systems, the switch handles standard Ethernet frames without modification.
When to Choose a Different Model
If your deployment requires VLAN segmentation for network isolation, QoS tuning for bandwidth prioritization, or real-time diagnostics and monitoring through a management interface, consider a managed gigabit PoE+ switch in the PoE switch comparison guide instead. Managed switches add operational visibility and control but also introduce licensing costs and configuration overhead. For deployments with strict network security policies or multi-tenant isolation requirements, managed switching is necessary. For straightforward, single-purpose surveillance networks, the unmanaged P24S26G2 remains cost-effective and faster to deploy.
Deployment Scenarios
The P24S26G2 performs well in retail multi-site chains where each location receives an identical switch, eliminating per-site configuration. Educational institutions benefit from the no-touch operation model—network staff can deploy the switch and walk away. Warehouse automation environments with IP cameras monitoring inventory or entry points find the unmanaged approach ideal when cameras are the only networked security devices on a dedicated VLAN. Small office or branch office installations with fewer than 24 cameras leverage the full port density without waste. Multi-floor office buildings can cascade switches using uplink ports, spreading cameras across the facility without requiring core managed infrastructure upgrades.
Frequently Asked Questions
Q: Does the P24S26G2 work with any IP camera?
A: Yes, provided the camera is ONVIF-compliant or supports standard Ethernet connectivity. The switch is vendor-neutral and protocol-agnostic—it forwards traffic automatically without requiring configuration. Check your camera's power requirements (most PoE+ cameras draw 13–25W, well within the 30W per-port rating).
Q: Can I expand beyond 24 cameras?
A: The P24S26G2 supports up to 24 PoE+ devices. If you need more ports, you can cascade multiple switches using the two uplink ports, or add a second switch on a separate power supply. See your integrator for topology planning.
Q: What's the power budget for the entire switch?
A: The switch delivers up to 30W per port on all 24 ports simultaneously. Total system power draw depends on your connected devices and how many are active at once. Confirm your power supply capacity with the manufacturer's specifications before installation.
Q: Do I need managed switching if I'm using a VMS?
A: No. A VMS (like Milestone or Axis Camera Station) runs on a separate device and handles recording and analytics. The switch simply forwards traffic. Unmanaged operation is sufficient unless you have network security policies requiring VLAN isolation or QoS control at the switch level.
Q: Is the P24S26G2 suitable for outdoor installation?
A: The switch is designed for protected indoor environments like network closets or equipment rooms. If you need outdoor operation, install it in a weatherproof enclosure with active cooling or temperature control, and ensure proper ventilation to prevent heat buildup.
Q: What uplink ports are included?
A: The two additional uplink ports are standard gigabit Ethernet ports that do not deliver PoE+ power. Use them to connect to core network infrastructure, NVRs, or VMS servers—they operate identically to the 24 PoE+ ports for data forwarding but carry no power.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the Speco Technologies P24S26G2 in dozens of retail and mid-market installations over the last few years, and it remains a reliable workhorse for straightforward surveillance network builds. The P24S26G2 shines when you need PoE+ power and gigabit data transport to 24 cameras without managing VLANs, firmware versions, or licensing agreements. That unmanaged simplicity isn't a weakness—it's the whole point when your goal is uptime and low operational overhead.
Technical Highlights:
- 30W per-port PoE+ budget: Covers standard IP domes, PTZ cameras with heaters, and motorized zoom mechanisms simultaneously. I've never had to stage camera startup or manage power priorities—all 24 ports energize at once. Saves hours of commissioning labor on large deployments.
- Two uplink ports for backbone aggregation: Allows you to connect NVRs or core infrastructure without consuming a PoE+ port. Useful for multi-switch topologies where you're cascading units across floors or buildings.
- Gigabit throughput on every port: Handles concurrent 4K streams from multiple cameras without frame drops. I've run bandwidth utilization checks on live 4K deployments and never seen sustained congestion.
Deployment Considerations:
- Unmanaged means no QoS, no VLAN segmentation, and no real-time diagnostics. If your customer requires network isolation for security compliance, this switch won't fulfill that need—you'll need managed infrastructure.
- Power supply capacity is the real constraint at scale. At full load with all 24 ports active, confirm you have adequate input power. Most integrators size a dedicated supply for 600W+ headroom to avoid voltage sag.
- Plug-and-play operation works only if your cameras are ONVIF or vendor-neutral. Some proprietary systems with firmware-level network policies may require minimal configuration—rare, but verify before deployment.
Position the P24S26G2 for straightforward retail chains, educational campuses, and warehouse automation sites where you want reliable power and data delivery without the overhead of managed switching. It's not a fit for mission-critical infrastructure requiring detailed monitoring or complex traffic control, but for its intended use—simple, dense PoE+ delivery—it's solid and predictable.
