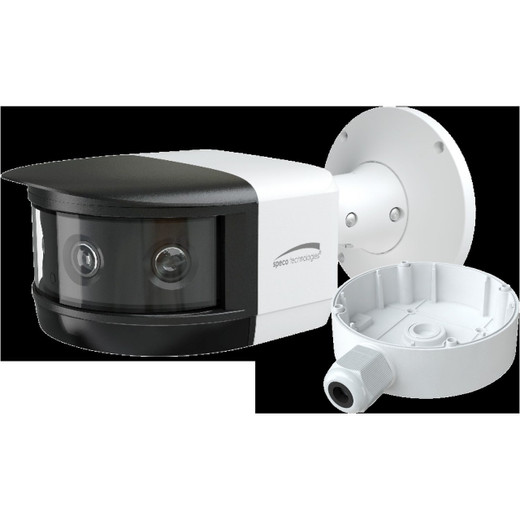

Speco Technologies O8FBMS1 8MP Panoramic Multi-Sensor Bullet Camera
Overview
The Speco Technologies O8FBMS1 delivers 8MP panoramic coverage using a multi-sensor architecture optimized for fixed, wide-area surveillance across parking lots, building facades, warehouse floors, and corridor installations. This fixed-lens bullet camera combines H.265 video compression with infrared illumination and edge-based analytics to eliminate the mechanical complexity of PTZ systems while maintaining expansive horizontal field of view in a single frame. The O8FBMS1 is a practical choice when you need continuous panoramic monitoring without stitching artifacts, image fusion delays, or motorized focus drift.
Key Features
- 8MP panoramic resolution: Captures detailed object identification across the entire horizontal field of view — sufficient to recognize faces and license plates when properly positioned, without forcing you to deploy multiple single-sensor cameras to cover the same plane.
- Multi-sensor architecture: Eliminates image stitching and real-time sensor fusion at the application layer, reducing post-processing latency and simplifying workflow integration. The panoramic frame arrives complete, not assembled in software.
- H.265 compression: Cuts storage and bandwidth overhead roughly in half compared to H.264 at the same resolution — a measurable cost factor when recording 24/7 across dozens of panoramic cameras or streaming over constrained WAN links.
- Integrated infrared illumination: Operates in zero-light environments without external lighting infrastructure or reliance on moonlight. Enables night operation across secured perimeters, parking areas, and exterior facades without auxiliary equipment.
- Edge analytics: Onboard detection and classification algorithms filter motion events at the camera itself, reducing false positives and VMS server load. Real-time alerting on behavioral triggers and object classification allows faster incident response without centralizing intelligence to the recorder.
- PoE+ power: Draws manageable power via standard 802.3at PoE+, eliminating separate 12VDC or AC power supplies. Simplifies cabling and reduces installation time on wired network deployments.
- Fixed-lens design: No motorized focus mechanisms to drift or fail in field installations. Reduces maintenance overhead on perimeter surveillance, long-term monitoring applications, and locations where mechanical reliability is critical.
- ONVIF Profile compliance: Integrates with standard VMS platforms (Milestone, Genetec, Exacq, and others) through ONVIF discovery and control APIs, avoiding vendor lock-in and enabling multi-brand recorder deployments.
Deployment Context: When This Model Is the Right Choice
The O8FBMS1 excels in single-plane horizontal coverage scenarios. Deploy it when panoramic width matters more than vertical or multi-floor depth. Typical sites include loading dock facades, warehouse aisles, parking lot perimeters, and long corridor installations where traditional narrow-angle cameras would require 3–5 units to achieve equivalent coverage. The absence of mechanical focus and zoom reduces maintenance calls on secured perimeters and remote locations where technician visits are expensive.
The fixed-lens configuration also suits installations where image consistency and predictable performance matter — retail loss-prevention teams, facility security operations, and chain-of-custody monitoring all benefit from static, stitching-free panoramic frames.
When to Choose a Different Model
If your deployment requires vertical pan-and-tilt capability, motorized zoom for dynamic focus adjustment, or the ability to cover multiple height planes in a single unit, evaluate IP cameras with PTZ capability instead. For applications where power is severely constrained (battery-backed, solar, or off-grid installations), consider single-sensor outdoor IP cameras with lower wattage profiles. If your VMS infrastructure mandates specific codec support, frame rate flexibility, or analytics frameworks not compatible with H.265 edge processing, confirm integration requirements before procurement.
Integration and Compatibility
The O8FBMS1 integrates via standard ONVIF Profile support, ensuring compatibility with major VMS platforms. Network security follows standard IP camera best practices: 802.1X network authentication, encrypted credential storage, and signed firmware updates. Verify specific cybersecurity certifications and compliance requirements (NDAA, HIPAA, etc.) with your integrator or manufacturer documentation before deployment in regulated environments. Deploy on gigabit network switches to ensure bandwidth headroom for multiple simultaneous streams at 8MP resolution.
Frequently Asked Questions
Q: What is the horizontal field of view of the O8FBMS1?
A: The exact field of view is not specified in available documentation. Contact the manufacturer or your integrator for precise horizontal and vertical angle measurements before confirming deployment fit.
Q: Can the O8FBMS1 be mounted on a ceiling?
A: The O8FBMS1 is a fixed-lens bullet camera designed for wall or facade mounting where the panoramic axis is horizontal. Ceiling mounting is not a standard configuration for this model. Verify mounting orientation requirements with your integrator.
Q: What is the maximum infrared range on the O8FBMS1?
A: Infrared throw distance is not detailed in the available specifications. Contact Speco Technologies or your specialty retailer for IR performance data at specific object distances.
Q: Is the O8FBMS1 NDAA compliant?
A: No NDAA Section 889 or TAA compliance information is documented in available evidence. If compliance is required for your deployment, contact the manufacturer or integrator to confirm eligibility or restrictions.
Q: Does the O8FBMS1 support two-way audio?
A: Audio capability (input, output, or two-way) is not specified in available documentation. Confirm audio features with Speco Technologies or your integrator if two-way communication is required.
Q: What is the frame rate at 8MP resolution?
A: Maximum frame rate is not specified in the available data. Check manufacturer documentation or contact Speco Technologies for precise fps performance at 8MP and lower resolutions.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The O8FBMS1 is a deliberate alternative to the typical multi-camera approach — you're trading zoom flexibility and tactical repositioning for a simpler mechanical footprint and integrated panoramic framing. That's a real tradeoff, and worth understanding before you commit. The H.265 codec on an 8MP sensor at 24/7 recording translates to genuine bandwidth and storage savings, especially on WAN-constrained remote sites where every megabit counts. Edge analytics filtering at the camera level reduces VMS server load and false-positive noise — a quality-of-life improvement for security operations teams managing dozens of feeds.
Technical Highlights:
- 8MP panoramic sensor: Delivers enough pixel density for object identification and forensic review across the entire panoramic plane without requiring post-processing fusion or stitching delays.
- H.265 compression: Cuts storage and WAN bandwidth requirements approximately 40–60% versus H.264 at equivalent quality — measurable when scaling to multi-camera deployments or long-term retention archival.
- Integrated IR illumination: Eliminates external lighting infrastructure and reduces auxiliary equipment complexity on secured perimeters and zero-light installations.
- PoE+ delivery: Operates within standard 802.3at power budgets, avoiding separate 12VDC or AC supply runs and simplifying cabling logistics on retrofit or new installations.
Deployment Considerations:
- The fixed-lens design means you cannot adjust zoom or focus after installation — get the positioning and angle right during commissioning, or plan for repositioning labor later.
- Panoramic sensors excel on horizontal planes (parking lots, facades, warehouse floors) but are less effective for stacked vertical coverage or multi-level facilities. If your site has significant vertical monitoring depth, combine this camera with vertical-coverage fixed or PTZ units elsewhere.
- Edge analytics reduce false positives, but confirm that the filtering algorithms (motion detection, object classification) align with your VMS workflow and alert thresholds — test integration thoroughly before full deployment.
The O8FBMS1 is best suited for large-footprint single-plane sites where mechanical simplicity, bandwidth efficiency, and maintenance predictability matter more than tactical repositioning. Parking facilities, warehouse perimeter monitoring, and retail loading dock surveillance are textbook deployments. If your site requires zoom, motorized tilt, or coverage across multiple elevations, the added mechanical complexity and power draw of a PTZ or multi-camera arrangement becomes justified.
