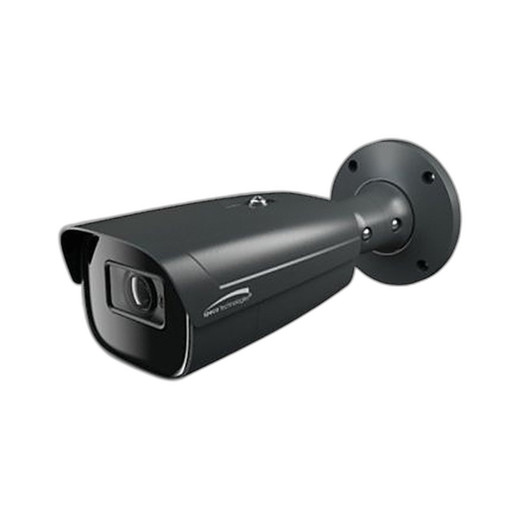

Speco Technologies O8FB1M 8MP AI IP Bullet Camera Motorized Lens

Speco Technologies O8FB1M 8MP AI IP Bullet Camera with Motorized Lens

Overview

The Speco O8FB1M is a wired 8MP outdoor IP bullet camera engineered for perimeter surveillance, parking areas, and industrial access points where motorized lens flexibility and built-in AI analytics reduce deployment complexity. The camera pairs a motorized varifocal 2.8–12mm lens with Flexible Intensifier low-light technology and true Wide Dynamic Range (WDR) to handle day/night cycles and high-contrast lighting without external processing. At 8MP (3840×2160) resolution, 30fps, and H.265+ codec efficiency, the O8FB1M delivers the image clarity needed for forensic identification while cutting storage and bandwidth demands roughly in half compared to H.264—a real factor when scaling across multi-camera deployments.

Key Features

• Motorized Varifocal Lens (2.8–12mm): Frame adjustments happen remotely over the network without climbing a ladder or repositioning hardware. Wider framing at 2.8mm covers general perimeter; tighter 12mm zoom isolates distant subjects for detail work. Motor operation is powered by PoE, eliminating a separate control circuit.
• 230ft Infrared Range: Extended IR illumination ensures monitoring in complete darkness. This distance is meaningful for sprawling outdoor sites—parking lots, warehouses, fence lines—where standard 30–50ft IR falls short. User-selectable IR override lets you suppress reflection on rain, fog, or reflective surfaces when needed.
• 8MP Resolution at 30fps: Captures 3840×2160 pixels per frame, sufficient for license-plate reading, facial feature capture, and vehicle type/color identification when paired with appropriate lens zoom. 30fps is the standard for surveillance; no frame-rate penalties.
• H.265+ and H.264+ Compression: H.265+ yields ~50% file reduction at equivalent quality, cutting storage costs and network load. H.264+ provides backward compatibility with older NVRs and VMS platforms. MJPEG available for legacy integrations.
• True WDR (Wide Dynamic Range): Backlighting and high-contrast scenes—bright doorways against dark interiors, parking lot entry gates at sunset—are handled without blown-out or crushed blacks. WDR preserves detail across the full tonal range in a single frame.
• Flexible Intensifier + Day/Night: Proprietary low-light amplification maintains color rendition in twilight and overcast conditions. Automatic day/night switching shifts to black-and-white and activates IR when light drops below a user-configurable threshold. No manual intervention required across 24-hour cycles.
• Edge-Based AI Analytics: Motion detection, line-crossing alerts, intrusion detection, face detection, and vehicle detection execute on the camera itself. No external analytics server, no cloud dependency, no extra latency. Triggered clips and alerts integrate directly with your VMS or alert management system.
• IP67 Weatherproofing: Fully sealed housing resists rain, dust, and spray. Rated for -40°F to 140°F operation—surviving freeze-thaw cycles and desert heat without degradation. Mount outdoors on eaves, poles, or walls without conduit.
• PoE Power (802.3af, ~13W max): Single Ethernet cable delivers power and network connectivity. Does not strain a managed PoE switch; standard 60W switches handle dozens of these cameras. No separate 12V DC runs or power injectors required.
• MicroSD Local Recording (up to 256GB): On-board storage provides backup during brief network interruptions. Edge recording continues even if your NVR loses connectivity, reducing footage gaps in volatile network environments.
• ONVIF Profile G Compliance: Integrates with mainstream VMS platforms—Milestone XProtect, Genetec Security Center, Axis Camera Station, and dozens of third-party systems. No proprietary controllers or vendor lock-in.
• Two-Way Audio Output: Built-in speaker enables remote communication over the network—useful for access-point intercoms, parking lot warnings, or facility announcements.

When This is the Right Choice

Deploy the O8FB1M when outdoor surveillance requires extended IR reach, motorized lens zoom without manual intervention, and on-camera AI to avoid backend analytics overhead. Ideal for: perimeter fencing, parking lots, building entries, industrial yards, and warehouse loading areas. If your site spans a large footprint and focal length varies by camera location—some watching entry gates, others monitoring open lot—the motorized lens adapts to each position. Edge analytics are particularly valuable on sites with poor or latency-prone network backhaul; motion and intrusion triggers execute locally and fire alerts instantly.

When to Consider Alternatives

If your budget is tight and focal length is fixed (all cameras watching the same type of scene), a fixed-lens outdoor camera reduces cost. If you need pan-tilt-zoom control beyond varifocal adjustment—360° continuous pan with preset tour patterns—a dedicated PTZ camera is required. For indoor-only deployments, smaller form-factor dome or box cameras may be more aesthetic. If your network cannot supply 802.3af PoE, budget for a PoE midspan or outdoor power injector; the O8FB1M will not operate on passive 12V injectors or unpowered Ethernet runs.

Integration and Compatibility

The O8FB1M connects to any standard managed or unmanaged Ethernet switch. ONVIF Profile G support ensures broad VMS compatibility. Firmware updates are provided by Speco and roll out through your VMS management interface. IP-based installation means no coax runs, no baluns, and no analog camera limitations—leverage your existing Ethernet backbone.

Frequently Asked Questions

Q: What is the maximum effective IR range, and does it work through windows or glass?

A: The O8FB1M delivers 230 feet of infrared illumination in clear air and darkness. IR does not penetrate glass or acrylic; if you need to monitor through a window, glass-transparent IR cameras (rare and expensive) or external window-facing supplemental lighting are required. Outdoor mounting with clear sight lines maximizes IR performance.

Q: Does the O8FB1M support H.265 streaming to all major VMS platforms?

A: H.265+ encoding is supported, but VMS compatibility depends on your platform. Newer versions of Milestone, Genetec, and others support H.265 decoding. Older systems may fall back to H.264+ or MJPEG. Verify your VMS version supports H.265 before deploying at scale, or configure the O8FB1M to stream H.264+ for universal compatibility.

Q: Can I power the motorized lens and IR over 802.3af PoE?

A: Yes. The O8FB1M draws approximately 13W maximum, well within the 15.4W delivery of 802.3af. Motor movement, IR operation, and video encoding all run on the same PoE budget. Standard enterprise PoE switches supply sufficient power.

Q: Does the O8FB1M work with Milestone XProtect or Genetec?

A: Yes. ONVIF Profile G compliance means the O8FB1M integrates with any ONVIF-compatible VMS. Milestone, Genetec, Axis Camera Station, and most third-party systems recognize and manage the camera through standard ONVIF APIs. No special drivers or plugins required.

Q: What is the operating temperature range, and will the camera survive freezing conditions?

A: The O8FB1M operates from -40°F to 140°F (-40°C to 60°C). This range covers harsh winter climates and desert heat. Freeze-thaw cycling does not degrade the IP67 seal. For installations in extreme cold, ensure heater-equipped junction boxes are used if you terminate external cabling outdoors.

Q: How much local storage does the microSD slot provide, and can I record 24/7?

A: The O8FB1M supports microSD cards up to 256GB. At 8MP 30fps H.265+ (roughly 1.5–2 Mbps average), 256GB stores approximately 30–40 days of continuous video. Local recording acts as failsafe backup during network interruptions, not primary storage. Use an NVR or network-attached storage for long-term retention.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Speco O8FB1M lands in a sweet spot for integrators deploying large outdoor footprints where manual lens adjustment is impractical. The 230ft IR range and motorized 2.8–12mm varifocal optics handle sprawling sites—parking lots, industrial perimeter, warehouse yards—without forcing you to pre-define focal length at design time. The H.265+ compression cuts your storage footprint in half, and that matters when you're funding multi-year retention across a dozen outdoor cameras.

Technical Highlights:

• 230ft Infrared Reach: Far exceeds typical 30–50ft IR on budget outdoor cameras. Meaningful for open-lot surveillance where subjects are 150+ feet distant. Extended range reduces the number of cameras needed to cover large perimeters.
• H.265+ Compression (~50% file reduction vs. H.264+): At 8MP 30fps, H.265+ typically runs 1.5–2 Mbps average bitrate. Over 24/7 operation, a single O8FB1M generates roughly 13–17 TB per year. H.264+ doubles that footprint. Storage and bandwidth savings compound across 5–10 camera systems.
• PoE Budget (~13W at max): Motorized lens actuation, IR illumination, and video encoding all draw under 15.4W 802.3af delivery. You won't need PoE+ or DC injectors. A single managed 60W PoE switch can handle 4–5 O8FB1M cameras and still leave headroom.
• Edge AI Analytics (Face, Vehicle, Line-Cross, Intrusion): Executes on-camera; no backend appliance required. Useful on sites with latency-prone or bandwidth-constrained backhaul. Alerts fire instantly; no lag waiting for cloud processing.

Deployment Considerations:

• Varifocal Motor Adds Complexity: The motorized lens is a convenience and a minor liability. Network configuration must be correct for motor commands to reach the camera; incorrect routing or firewall rules leave the lens stuck at its powered-on position. Test remote focus adjustment in the lab before field installation.
• H.265 VMS Compatibility: Newer Milestone and Genetec releases support H.265 decode, but older systems (pre-2020) fall back to H.264+ or MJPEG and lose compression gains. Audit your VMS version; if you're stuck on legacy software, configure the O8FB1M for H.264+ from day one.
• IR Bleed on Rain and Fog: Extended IR is excellent in clear air, but heavy rain and dense fog scatter IR light, washing out contrast. In regions with frequent fog or coastal spray, reduce IR intensity or disable it when ambient light is adequate.
• MicroSD as Failsafe Only: The 256GB slot backs up local video during brief network outages, not full 24/7 retention. Use NVR or NAS for primary storage; the on-camera card is insurance, not the archive.

The O8FB1M is a strong choice for outdoor sites larger than 2–3 acres where variable focal length and long-range IR eliminate repositioning and reduce total camera count. Pair it with a managed PoE switch and a modern VMS supporting H.265, and you reduce both capital (fewer cameras) and operating cost (smaller storage footprint). Skip this if your budget cannot absorb motorized lens complexity or if your VMS is locked on legacy H.264-only decode.
