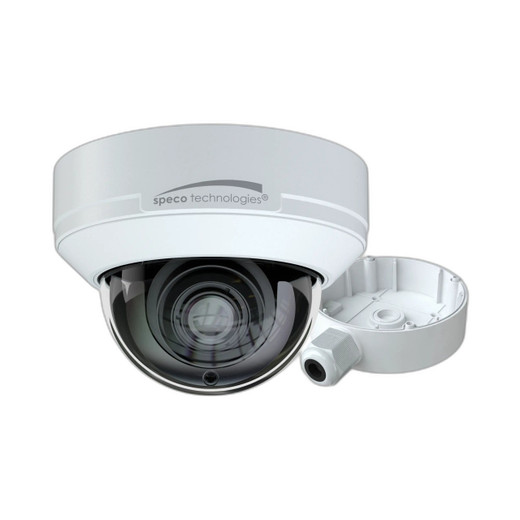

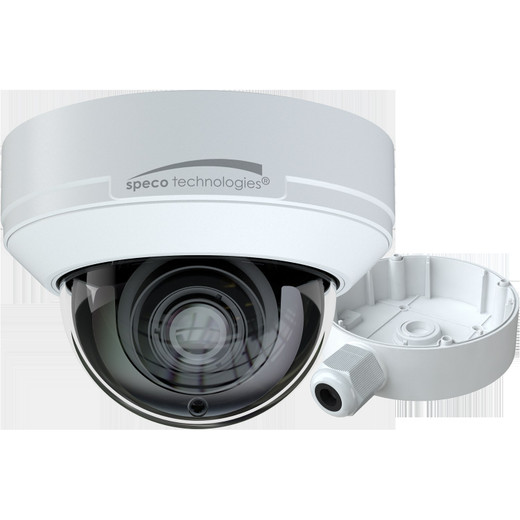

Speco Technologies O8D9M 8MP Outdoor Network Dome Camera
The Speco O8D9M is a fixed outdoor network dome engineered for high-resolution perimeter and facility surveillance where environmental durability and forensic-quality detail matter. It delivers 3840×2160 resolution (8MP) at 30 fps, pairing a 1/2.8" CMOS sensor with fixed optics optimized for typical surveillance distances. True day/night operation with infrared cut filter switching and passive infrared enhancement handles daylight and low-light scenes without manual intervention. IP67 sealing and IK10 vandal resistance qualify it for outdoor mounting on ceilings or walls where rain, dust, and impact are expected.
Key Features
- 8MP resolution (3840×2160 @ 30 fps): Captures sufficient detail for facial identification and forensic review in well-lit conditions. At 30 fps fixed frame rate, motion is smooth enough for tracking and event correlation, and the frame rate remains constant across all resolution and compression modes — no surprises in deployment.
- H.265 and H.264 compression: H.265 (HEVC) cuts storage and bandwidth roughly in half compared to H.264 at equivalent quality. On a 24/7 multi-camera recorder, this difference compounds quickly; H.264 is available for broad VMS compatibility if bandwidth efficiency is less critical. MJPEG is also supported for simple streaming applications.
- True WDR (Wide Dynamic Range): Manages scenes with mixed bright and dark areas — windows, reflective surfaces, or parking lot shadows — without washing out highlights or losing shadow detail. Particularly useful in retail and facility entrances where direct sunlight and interior lighting clash.
- IP67 and IK10 ratings: IP67 means complete dust sealing and temporary immersion protection (suitable for direct rain and minor flooding, but not sustained submersion). IK10 vandal resistance withstands deliberate impact, reducing replacement costs in high-traffic or exposed areas. Together, these ratings enable installation in uncovered outdoor spaces without additional protective housings.
- Day/night operation with infrared (IR): The camera switches between color (daylight) and black-and-white (night) modes automatically. Passive infrared enhancement activates in low-light scenes; true IR illumination is not specified, so performance in complete darkness depends on ambient light or external IR sources. Suitable for facilities with some ambient lighting.
- Edge-based analytics — line crossing and face detection: Both run on the camera itself, reducing server load and enabling rule-based alerting without external analytics appliances. Line crossing triggers when motion crosses a user-defined boundary; face detection flags frames containing faces. These capabilities support event-driven recording workflows, cutting unnecessary storage on quiet cameras.
- ONVIF Profile P compliance: Integrates with major VMS platforms including Milestone XProtect, Axis Camera Station, and other ONVIF-compliant systems. Profile P ensures predictable discovery, configuration, and streaming across different VMS vendors — critical for multi-brand deployments.
- Wired Ethernet connectivity only: No Wi-Fi option. Eliminates wireless latency and interference concerns common in dense RF environments, ensuring deterministic frame delivery. Ethernet is the only network interface, so Wi-Fi-dependent installations should look elsewhere.
- PoE power: Draws power via standard 802.3af PoE, requiring under 13W, so it won't strain switch power budgets on larger installations. No separate 12VDC supply needed; a single Ethernet cable delivers both data and power to the dome.
- Fixed dome form factor: No pan/tilt/zoom. Mounting is permanent and unobstructed views must be planned during installation. The tradeoff: lower cost and simpler deployment than PTZ alternatives, and no moving parts to wear or maintain.
Integration & Compatibility
The O8D9M conforms to ONVIF Profile P, enabling plug-and-play integration with network video recorders (NVRs) and VMS platforms from Milestone, Axis, and other mainstream vendors. H.264 and MJPEG fallback options support legacy systems lacking H.265 decode. Wired Ethernet only; if your deployment requires wireless bridging, plan an external wireless access point or switch to a Wi-Fi capable model from the same Speco catalog.
When This Is the Correct Choice
Select the O8D9M for outdoor fixed-dome deployments where 8MP detail, environmental durability, and vandal resistance are non-negotiable. Perimeter monitoring, facility entrances, parking structures, and retail outdoor areas are common fits. If PoE power and standard Ethernet are available on-site, and your VMS supports ONVIF, the installation path is straightforward. The H.265 option makes sense on high-megapixel multi-camera systems where storage or bandwidth is tight.
When to Choose a Different Model
If pan/tilt/zoom coverage is required, evaluate a PTZ dome from the Speco lineup instead. For indoor-only applications without vandal exposure, a standard indoor dome may deliver better cost efficiency. If extreme low-light performance (0 lux) is mandatory, or if wireless connectivity is essential, review alternative sensor sizes or specialized platforms before committing. Speco's product family includes variants optimized for each scenario.
Frequently Asked Questions
Q: Does the O8D9M work with Milestone XProtect?
A: Yes. ONVIF Profile P compliance ensures interoperability with Milestone and other major VMS platforms. H.264 streaming is recommended for Milestone compatibility; H.265 support depends on your XProtect version and available codec licenses.
Q: What is the infrared range on the O8D9M?
A: The O8D9M does not have true active infrared illumination. It uses passive infrared enhancement (image amplification) in low-light scenes. Night vision capability depends on ambient light; complete darkness requires external IR lighting or pre-existing ambient illumination.
Q: Can the O8D9M be wall-mounted, or is it ceiling-only?
A: The dome form factor supports both ceiling and wall mounting. The sensor orientation and lens positioning are designed for flexible mounting; consult the installation documentation for your intended mounting angle to confirm adequate coverage.
Q: How much power does the O8D9M draw?
A: The camera draws approximately 12.95W maximum via PoE (802.3af). This is well within the 15.4W budget of standard 802.3af injectors and switches, so no high-power PoE+ infrastructure is needed.
Q: What is the difference between H.265 and H.264 compression on the O8D9M?
A: H.265 typically reduces file size and bandwidth by 40–60% compared to H.264 at equivalent visual quality. For 24/7 recording on multi-camera systems, H.265 savings compound quickly. H.264 is available for VMS platforms that lack H.265 decoders or for legacy systems requiring broad compatibility.
Q: Is the O8D9M NDAA Section 889 compliant?
A: Evidence does not specify NDAA compliance. Confirm with the manufacturer or specialty retailer if this is a deployment requirement.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The O8D9M is a straightforward, no-nonsense outdoor dome that does one job well: deliver 8MP forensic-quality stills in outdoor environments where weather and vandalism are real problems. It's not a star-light low-light beast, and it won't zoom or pan. But if you're installing perimeter or facility-entrance surveillance in a location with decent ambient light and you need solid resolution, durability, and VMS portability, the Speco O8D9M hits the mark without overselling itself.
Technical Highlights:
- H.265 compression: Cuts storage and bandwidth by roughly 50% versus H.264 on a 24/7 recorder — measurable savings on multi-camera deployments. Standard H.264 fallback for legacy VMS systems ensures broad compatibility without hardware surprises.
- IP67 + IK10 ratings together: Complete dust sealing, rain/temp immersion tolerance, and impact resistance eliminate the need for outdoor protective housings in most climates. A single mounting bracket is all you need; no junction boxes or weather covers inflate project cost.
- Edge analytics (line crossing, face detection): Both run on-camera, so you don't need a separate analytics server just to detect people crossing a line or appearing in-frame. Real-time rule-based alerting with minimal latency — useful for event-driven recording workflows where you don't want to record 24/7 on every camera.
- PoE 802.3af draw (~13W): Light enough that standard PoE switches won't choke. On large deployments with 16, 24, or 32 ports, you're not burning injectors or paying for PoE+ upgrades.
Deployment Considerations:
- No active IR: Passive infrared enhancement only. If your installation site has zero ambient light at night (true darkness), you'll need external IR floods or accept reduced night-time clarity. Don't spec this camera expecting 40m IR range; it simply doesn't have it. Verify ambient light conditions on-site before committing.
- Fixed optics, permanent mounting: Lens focal length is locked. Plan your mounting height and angle carefully during site survey. Zoom or pan adjustments after installation require rewiring or a completely different camera model.
- Wired Ethernet only: No Wi-Fi. If your site has marginal cabling infrastructure, you may face trenching or conduit work. Wireless-dependent sites should look for a Wi-Fi alternative or budget for hardened Ethernet runs.
- 30 fps ceiling: Smooth motion and event tracking, but not high-speed action detail. Parking-lot vehicle identification works; ballistic-speed motion analysis doesn't. This is a surveillance camera, not a high-speed analytics platform.
The O8D9M is the right choice for a municipality parking structure, a retail building perimeter, or a warehouse entrance where you need proven durability, 8MP detail, and vendor-neutral ONVIF integration. Spec it where ambient light is present, cabling is feasible, and fixed coverage angles work. Avoid it in zero-light sites or deployments demanding PTZ flexibility.
