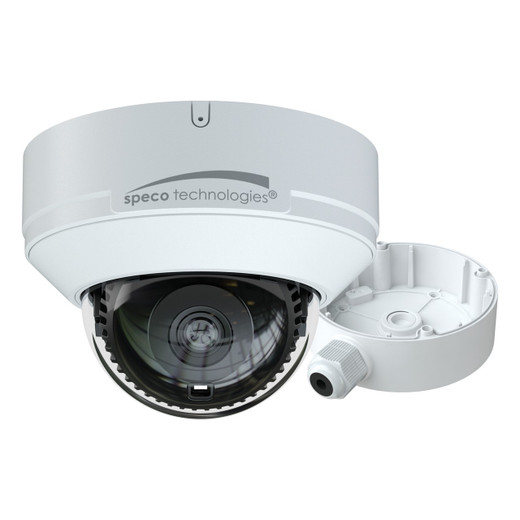

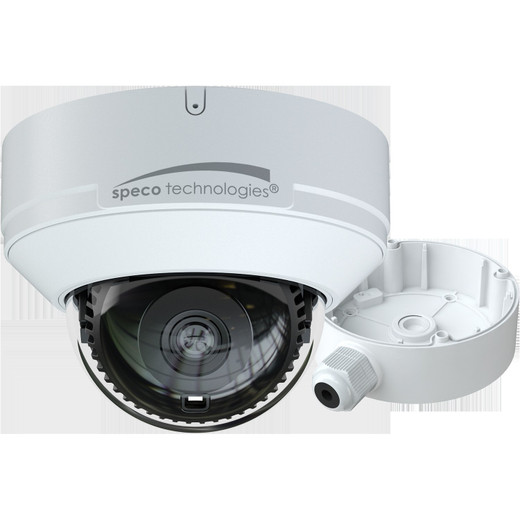

Speco Technologies O8D9 8MP Outdoor Network Dome Camera

Speco Technologies O8D9 8MP Outdoor Network Dome Camera

The O8D9 is a fixed-lens, outdoor-hardened network dome from Speco Technologies IP cameras engineered for weather-exposed deployments where durability and image fidelity matter equally. Built on a 1/2.8" CMOS sensor delivering native 3840×2160 resolution (8MP), the O8D9 captures forensically useful detail in daylight, twilight, and low-light scenes without manual lens swaps or thermal imaging fallbacks. The IP67 environmental rating means complete dust and water ingress protection—applicable to rooftop mounts, parking structure perimeters, and loading-dock overhangs where rain, spray, and humidity are constant. The IK10 vandal rating withstands 20 joules of direct impact, making the O8D9 suitable for public-facing installations where intentional or accidental physical contact is a real risk.

Power delivery via PoE (802.3af) draws under 13W, eliminating the need for dedicated 12V DC runs or AC adapters—a significant advantage when consolidating power infrastructure across dozens of cameras on a single switch. ONVIF Profile P compliance ensures plug-and-play integration with standard VMS platforms and network video recorders without vendor lock-in.

Key Features

• 8MP resolution (3840×2160) at 30 fps: Delivers enough pixel density for facial recognition and license plate capture in forensic reviews, without requiring sub-megapixel binning or post-processing zoom artifacts.
• True Day/Night imaging: Mechanical IR cut filter transitions automatically between color daylight and monochrome night modes, eliminating the need for separate thermal sensors or manual daytime/nighttime configuration.
• H.265 (HEVC) compression: Reduces per-stream bandwidth to 4–6 Mbps at 8MP/30fps depending on scene motion and complexity. H.265 cuts storage footprint roughly in half compared to H.264—a measurable cost saving on 24/7 multi-camera NVR builds. Backward-compatible H.264 and MJPEG options ensure integration with legacy VMS deployments.
• True WDR (Wide Dynamic Range): Compresses the tonal range between bright backlit areas (windows, reflections) and shadowed foreground zones into a single exposable frame. Essential for entry vestibules, parking gates, and perimeter coverage where backlighting would otherwise blow out faces or license plates.
• Edge-based video analytics: Built-in line crossing detection, face detection, and vehicle detection run at the camera without offloading to external GPU servers. Real-time alerting and reduced latency come as standard, cutting dependency on backend compute and network bandwidth.
• IP67 + IK10 environmental hardening: Complete dust and water immersion resistance plus impact resistance to direct strikes and tampering attempts. Rated for continuous operation across −40°F to 140°F, handling arctic freeze-thaw cycles and desert heat without thermal degradation.
• PoE (802.3af) power: Low wattage draw avoids power-budget strain on standard switches, allowing longer cable runs and simpler infrastructure.
• Dome form factor with fixed lens: Compact, low-profile housing deters casual tamper attempts and blends into architectural surfaces. Fixed optics mean no motorized zoom mechanism to maintain or fail in harsh weather.
• ONVIF Profile P interoperability: Works with Axis Camera Station, Milestone Xprotect, and other ONVIF-compliant VMS platforms—no proprietary licensing or closed-ecosystem risk.

When This Is the Right Choice

The O8D9 is the correct selection for outdoor perimeter security, facility entry points, parking areas, and public spaces where 8MP resolution provides sufficient detail for identity forensics and object identification. Schools, municipalities, retail parking lots, and transportation hubs benefit from the combination of weatherproofing, vandal resistance, and True Day/Night capability. If your deployment demands edge-based analytics—line crossing for perimeter alerts, face detection for exception reporting, vehicle detection for lot management—without reliance on external servers, the O8D9 delivers these functions natively. Organizations with constrained power infrastructure (limited PoE capacity on existing switches) will appreciate the sub-13W draw.

When to Consider Alternatives

If your application requires panoramic or multi-directional coverage, or if PTZ (pan-tilt-zoom) capability is essential, explore alternative form factors in the outdoor IP cameras category. The O8D9's fixed optics mean zoom must be handled in post-processing or VMS software cropping. For indoor-only environments where vandal resistance is not a concern, lower-cost indoor domes may provide better cost-per-camera economics. If your facility uses AC power exclusively and cannot support 12V DC backup or PoE infrastructure, check whether AC-powered alternatives better suit your power design.

Integration and Compatibility

The O8D9 supports ONVIF Profile P, ensuring compatibility with mainstream VMS platforms and network video recorders without proprietary software or licensing. Codec support includes H.265, H.264, and MJPEG, allowing backward compatibility with legacy NVR hardware that may not yet support HEVC. When planning edge-based alerting and video storage, consider a PoE switch with sufficient power budget and uplink bandwidth to handle multiple 8MP streams. For facilities requiring forensic-grade recording retention and real-time alerting orchestration, consult a VMS deployment guide to ensure your chosen platform supports H.265 playback and the O8D9's native analytics outputs (line crossing, face detection, vehicle detection events).

Field of View and Optics

The O8D9 does not specify a user-adjustable lens or precise field of view in current documentation. Integrators should request FOV and focal length specifications from Speco directly before final site planning and placement calculations.

Night Vision and Low-Light Performance

True Day/Night operation ensures seamless transition from daylight to darkness without manual filter adjustments. The 1/2.8" CMOS sensor captures full 8MP resolution at 30 fps in standard daylight. Night vision capability is confirmed, though infrared range and minimum illumination specifications are not documented in available evidence. Consult the manufacturer datasheet or pre-sales engineering for precise IR throw distance and low-lux performance thresholds if your deployment includes unlit areas or extends into twilight hours.

Storage and Bandwidth Considerations

At 8MP and 30 fps, H.265 encoding typically consumes 4–6 Mbps per stream depending on scene complexity and motion. Over a 24-hour cycle, expect roughly 43–65 GB per day per camera in H.265. Standard PoE switches with 1 Gbps uplinks can support 20–30 concurrent O8D9 streams without saturation. For larger deployments, account for NVR storage capacity, retention policy (7, 14, or 30 days), and bandwidth overhead for simultaneous playback and live viewing.

Frequently Asked Questions

Q: What is the IR range on the O8D9?

A: Infrared range is not specified in current documentation. Contact Speco or your systems integrator for precise IR throw distance and illumination specifications.

Q: Does the O8D9 support two-way audio?

A: Audio capability is not mentioned in available product evidence. Consult the manufacturer datasheet to confirm microphone, speaker, or audio input support.

Q: What is the maximum PoE power draw for the O8D9?

A: The O8D9 draws under 13W via standard 802.3af PoE, well within the 15.4W per-port budget of entry-level switches and leaving headroom for longer cable runs.

Q: Can the O8D9 integrate with Milestone Xprotect or Axis Camera Station?

A: Yes. ONVIF Profile P compliance ensures integration with any ONVIF-compatible VMS platform, including Milestone Xprotect, Axis Camera Station, and other standard systems without proprietary licensing.

Q: Is the lens field of view adjustable on the O8D9?

A: The O8D9 is a fixed-lens dome with no motorized zoom or lens adjustment. Precise field of view specifications are not documented; contact Speco for focal length and coverage details before site planning.

Q: What compression standards does the O8D9 support?

A: H.265 (HEVC), H.264 (AVC), and MJPEG. H.265 is recommended for bandwidth-constrained networks; H.264 and MJPEG ensure compatibility with older VMS hardware.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The O8D9 lands in a crowded outdoor dome segment, but its combination of sub-13W PoE draw, H.265 native encoding, and edge analytics makes it a solid fit for cost-conscious integrators building multi-camera perimeter systems. The fixed lens means no motorized complexity to fail in freeze-thaw cycles, and the 8MP/30fps baseline gives forensic detail without overloading storage on 24/7 retention policies.

Technical Highlights:

• H.265 compression: 4–6 Mbps per stream at 8MP/30fps cuts 24-hour storage footprint to roughly 43–65 GB per camera—meaningful when scaling to 20+ cameras on a single NVR. H.264 fallback ensures no VMS interoperability headaches.
• PoE (802.3af) under 13W: Low power draw avoids straining switch power budgets and allows longer cable runs without active injectors. Standard 15.4W PoE ports handle the O8D9 with headroom for future expansion.
• True WDR + True Day/Night: Automatic IR filter switchover and tonal range compression handle backlit scenes (windows, reflections, sunlit surfaces) without blown highlights or crushed shadows. Avoids the thermal imaging cost and complexity many sites assume is necessary.
• Edge analytics (line crossing, face detection, vehicle detection): Real-time alerting at the camera means lower latency and reduced backend server load. No GPU cluster required to trigger perimeter breach or lot-occupancy alerts.
• IP67 + IK10 rating: Full environmental sealing plus 20J impact resistance. Practical for high-traffic perimeters, loading docks, and public spaces where casual or intentional tampering is a real threat.

Deployment Considerations:

• Fixed lens—no zoom: Plan coverage carefully. If your site requires variable focal lengths or multi-directional scanning, factor in post-processing crop/zoom or specify a PTZ variant instead. FOV is not documented; confirm focal length with Speco before final placement.
• IR range unknown: The datasheet does not specify infrared throw distance or minimum illumination thresholds. Unlit perimeters may require supplemental IR infrastructure or lighting design review. Get IR specs from the manufacturer before committing to night-vision-only coverage areas.
• H.265 VMS support: Verify your chosen NMS platform supports H.265 playback and real-time decoding. Older systems may force fallback to H.264, negating storage savings.
• Audio absent: If two-way audio or microphone input is a requirement, the O8D9 does not appear to support it. Choose an audio-capable variant or add separate intercom infrastructure.

Position the O8D9 for mid-to-large parking structures, municipal perimeter security, school entry gates, and retail loading docks where vandal resistance, weather hardening, and cost-per-megapixel matter more than zoom range or panoramic coverage. The True WDR and edge analytics reduce the need for external lighting design and backend server sprawl—a practical win for integrators under tight CapEx and OpEx budgets.
