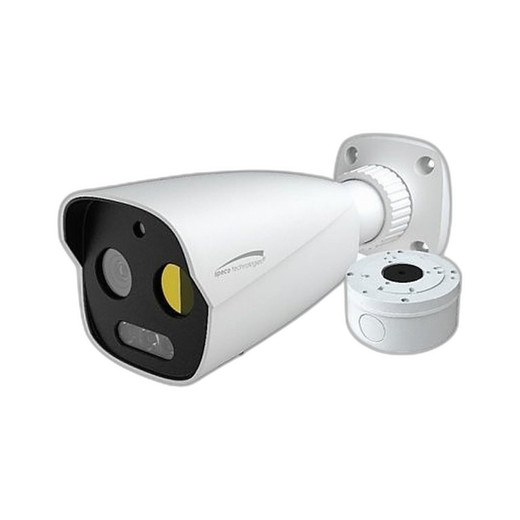

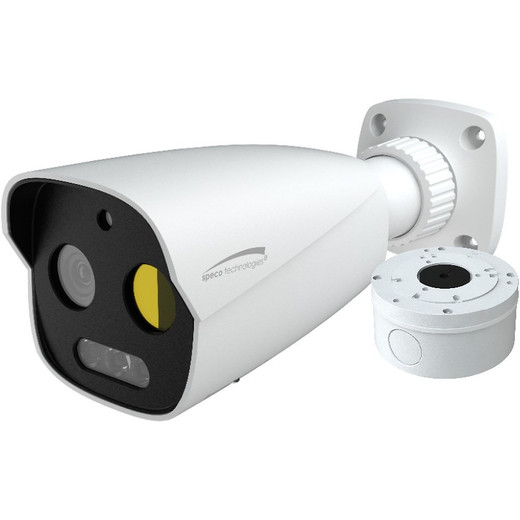

Speco Technologies O5TMLB1 5MP Dual Lens AI Thermal Camera
Overview
The Speco Technologies O5TMLB1 is a 5MP dual lens thermal imaging camera designed for security integrators requiring simultaneous visible and thermal detection in a single compact form factor. This camera combines a 5MP visible sensor with integrated thermal imaging, delivering 2592x1944 resolution at 30fps. The O5TMLB1 operates on PoE (802.3af) or DC 12V power, consuming 9W, making it suitable for both networked and legacy installations. With IP67 environmental rating and operating temperature range of -22°F to 140°F, this camera performs across demanding indoor and outdoor deployments.
When this is the correct choice
Deploy the O5TMLB1 when you need simultaneous thermal and visible imaging without multiple cameras. This dual-lens approach is ideal for perimeter security, equipment monitoring, and facilities where thermal anomaly detection complements visible analytics. The digital deterrent feature provides active security response. Choose this camera for environments where both temperature-based threat detection and traditional motion/intrusion monitoring are required, such as critical infrastructure, server rooms, industrial facilities, and outdoor secure perimeters.
When to choose a different model
If your deployment requires PTZ capability, panoramic coverage, or facial recognition as the primary function, consider alternative Speco offerings. The O5TMLB1 is optimized for thermal + visible integration; if thermal imaging alone is sufficient, a single-spectrum thermal camera may reduce cost. Deployments requiring higher power budgets or specialized mounting (pendant, gang box) may benefit from different form factors.
Optics and field of view
The O5TMLB1 features a fixed 3.2mm lens delivering a defined field of view suitable for mid-range monitoring applications. The 1/2.7" CMOS sensor paired with this lens provides balanced coverage for typical security zones. The dual-lens architecture maintains optical separation between thermal and visible sensors, eliminating optical artifacts common in single-lens thermal/visible hybrids.
Imaging performance and low light
The visible channel delivers 5MP resolution (2592x1944) at 30fps with True WDR (Wide Dynamic Range) for scenes containing both bright and dark areas. The thermal imaging component operates independently, providing temperature-based detection and visualization. Infrared illumination extends visible low-light performance to 98 feet, while thermal imaging provides zero-light detection capability. Combined, these sensors create redundant detection layers: thermal for heat signature anomalies, visible for traditional motion and intrusion analytics.
Analytics and edge capabilities
The O5TMLB1 integrates AI analytics including motion detection, intrusion detection, and face detection. These edge-based analytics reduce backend processing load and enable real-time alerting without cloud dependency. Digital deterrent functionality provides active warning capability. Analytics operate on both visible and thermal streams, allowing rule-based triggers on either thermal thresholds or visible object behavior.
Video encoding and streaming
Multi-codec support includes H.265 (HEVC), H.264 (AVC), and MJPEG encoding, enabling bandwidth optimization across legacy and modern VMS platforms. H.265 compression reduces storage requirements by approximately 50% compared to H.264 at equivalent quality. 30fps maximum frame rate supports smooth motion capture and forensic review. Dual streams allow simultaneous high-quality recording and lower-bandwidth live view.
Network and security
The O5TMLB1 operates as a standard ONVIF-compatible network camera, integrating with VMS platforms supporting ONVIF Profile S. Built-in microphone and speaker enable two-way audio communication. Network security features are standard across enterprise surveillance deployments; integrators should verify specific cybersecurity requirements with Speco's technical documentation.
Environmental and durability ratings
IP67 rating provides dust-tight and water-jet-resistant protection for outdoor and wet-environment mounting. Operating temperature range spans -22°F to 140°F, supporting arctic through desert deployments without thermal management modifications. The 1 lb weight allows flexible mounting on standard brackets and arms without structural reinforcement.
Power and installation notes
PoE (802.3af) power delivery at 9W consumption allows single-cable installation using standard PoE injectors or PoE switches. The 802.3af compliance ensures compatibility with legacy PoE infrastructure. DC 12V auxiliary input provides failover or remote location power options. Fixed 3.2mm lens requires no focus adjustment, reducing on-site commissioning time. Mount type compatibility includes standard wall and ceiling brackets.
What is included
Contact us for package details.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the O5TMLB1 during deployments requiring simultaneous thermal and visible detection without payload penalties. The dual-lens architecture delivers genuine redundancy—thermal detects anomalies based on heat signature, while the 5MP visible channel runs traditional analytics. This separation eliminates optical trade-offs common in fused thermal-visible designs. At 9W PoE consumption, integration is straightforward across standard enterprise switch infrastructure.
Technical Highlights:
- Dual-sensor architecture: Independent thermal and 5MP visible imaging eliminates optical compromises and allows simultaneous detection rules on both spectra.
- H.265 encoding: HEVC compression reduces storage overhead by ~50% versus H.264, critical for long-term thermal logging deployments.
- 98-foot IR range: Visible infrared reach extends low-light coverage; thermal operates at zero-light, creating layered detection for perimeter security.
- PoE efficiency: 9W draw at 802.3af compliance simplifies power budgeting and uses existing PoE infrastructure without upgrades to PoE+ or PoE++.
Deployment Considerations:
- Fixed 3.2mm lens provides mid-range coverage; verify field of view matches your site geometry before installation to avoid focal distance surprises.
- Thermal data requires appropriate VMS analytics backend to leverage heat signature rules; ensure your recording platform supports thermal event flagging.
- Digital deterrent requires speaker integration and audio path configuration; test two-way audio during commissioning to confirm deterrent messages are audible at detection range.
- IP67 rating supports outdoor mounting, but thermal imaging performance degrades behind obstructed lenses; maintain optical surface cleanliness for consistent thermal contrast.
The O5TMLB1 is a solid choice for integrators building perimeter or facility monitoring systems where thermal anomaly detection adds genuine security value beyond motion-based analytics. Thermal and visible separation prevents image degradation, and the PoE power model keeps installation costs low. Verify your VMS thermal event handling before deployment to maximize this camera's detection redundancy.
Available in White.
