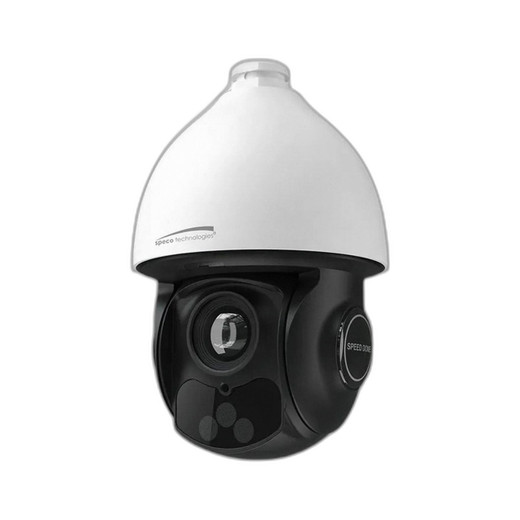

Speco Technologies O4P25X2 4MP Indoor/Outdoor IP PTZ Camera

The Speco Technologies O4P25X2 is a 4MP pan-tilt-zoom IP camera engineered for demanding indoor and outdoor surveillance environments. Built on a 1/2.7" CMOS sensor, this PTZ delivers 2560x1440 resolution at 30fps with professional-grade optics, delivering exceptional detail over expansive coverage areas. The camera's 4.8-120mm lens provides 25x optical zoom capability, enabling operators to capture wide-area monitoring and then zoom into critical details without resolution loss.

Key Features

• 4MP Resolution: Captures 2560x1440 video at 30fps for clear identification over extended viewing distances
• 25x Optical Zoom: 4.8-120mm varifocal lens with motorized zoom and focus; no digital interpolation required for detail acquisition
• 400ft Infrared Range: Advanced IR illumination extends night vision capability to 400 feet, enabling 24/7 surveillance in zero-light conditions
• IP66 Weatherproofing: Sealed against dust and high-pressure water jets; rated for outdoor mounting in harsh environments including rain, snow, and coastal salt spray
• True Day/Night: Automatic IR cut filter switching ensures color reproduction in daylight and monochrome sensitivity at night
• True WDR: Wide Dynamic Range processing preserves detail in scenes with extreme brightness variation—critical for backlit outdoor deployments
• H.265 Primary Compression: HEVC encoding reduces bandwidth and storage by up to 50% compared to H.264; also supports H.264 and MJPEG for legacy system integration
• PoE++ (802.3bt) Powered: 34W power consumption supplied via single twisted-pair cable; also supports 24VDC auxiliary input for redundant power scenarios
• Line Crossing, Face Detection, Vehicle Detection: On-board analytics enable rule-based alerting without external servers; reduces false alarms through intelligent event filtering
• Two-Way Audio: Integrated microphone and speaker enable remote communication with personnel in monitored areas
• ONVIF Profile G Compliance: Full interoperability with standards-based VMS platforms and third-party IP security systems

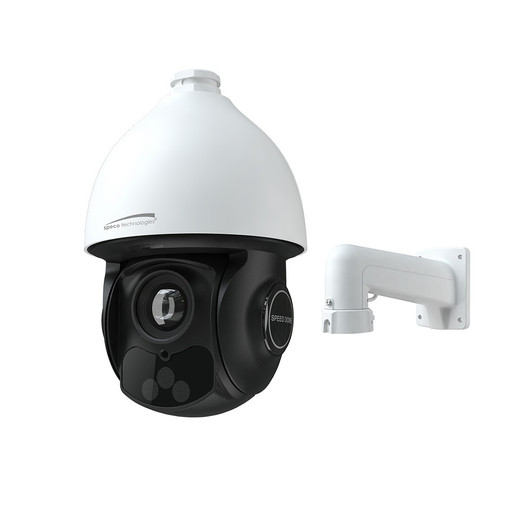

• Included Wall Mount: Professional-grade bracket rated for outdoor installation; simplifies deployment in retail, parking, perimeter, and facility-access scenarios

Integration & Compatibility

The O4P25X2 conforms to ONVIF Profile G, ensuring plug-and-play compatibility with major VMS platforms including Milestone XProtect, Genetec Security Center, and open-source NVR solutions. The camera's dual-codec support—H.265 as primary codec with H.264 and MJPEG fallbacks—accommodates both modern storage-optimized deployments and legacy network environments. PoE++ (802.3bt) power delivery simplifies installation by eliminating dedicated power infrastructure; standard PoE+ switches will not support the 34W draw, so integrators should verify injector or switch-port capability during design phase.

Environmental Specifications

Operating temperature range of -22°F to 140°F (-30°C to 60°C) supports deployment in freezers, unheated warehouses, and sun-exposed outdoor locations. IP66 rating guarantees dust and water ingress protection. The camera weighs 8.31 lbs and ships in white housing, standard for outdoor institutional and commercial installations. NDAA compliance is certified, meeting federal procurement requirements for U.S. government and regulated-industry buyers.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the O4P25X2 during planning cycles for mixed-use deployments where integrators need PTZ coverage without the complexity and cost of true pan-tilt-zoom heads. The 25x zoom on a fixed pedestal mount strikes a practical balance—you get focal-length flexibility for wide-to-telephoto transitions, but you're trading continuous 360° pan for reliability and simplicity. The Speco O4P25X2 performs well in this role.

Technical Highlights:

• Zoom-and-Zoom Efficiency: The 4.8-120mm lens covers ultra-wide entrance views down to 50+ meter detail capture; varifocal automation (motorized focus and zoom) eliminates manual lens adjustment on-site. H.265 compression keeps bitrate reasonable even during high-motion zoom transitions.
• IR Reach: 400ft infrared distance is genuinely useful in perimeter and parking scenarios. At 400 feet, you're capturing identifying detail on vehicles and personnel in total darkness—essential for incident reconstruction and forensic review.
• Weatherproofing Maturity: IP66 rating plus -22°F operating floor means this camera doesn't require heated enclosures in most North American climates. The white housing reflects solar heat, extending runtime in extreme summer conditions.

Deployment Considerations:

• Verify PoE++ injector availability before final design sign-off; 34W consumption exceeds standard PoE+ infrastructure. Budget for Cisco Catalyst switches or dedicated 802.3bt midspan injectors if upgrading older cabling plants.
• The two-way audio is useful for access-point and parking-garage applications but requires careful mic placement to avoid feedback loops in high-ambient-noise environments like loading docks.
• Analytics (line crossing, vehicle, face detection) run locally on the camera. Test detection sensitivity during commissioning—outdoor sunlight glint and moving shadows can trigger false positives if thresholds are not tuned to your specific site geometry.

For integrators handling outdoor perimeter, parking, and facility-access projects, the O4P25X2 delivers practical IP66 durability, extended IR reach, and zoom flexibility without requiring motorized pan-tilt infrastructure. Pair it with a modern ONVIF-compliant NVR and you have a straightforward, standards-based system suitable for mid-market and enterprise deployments.
