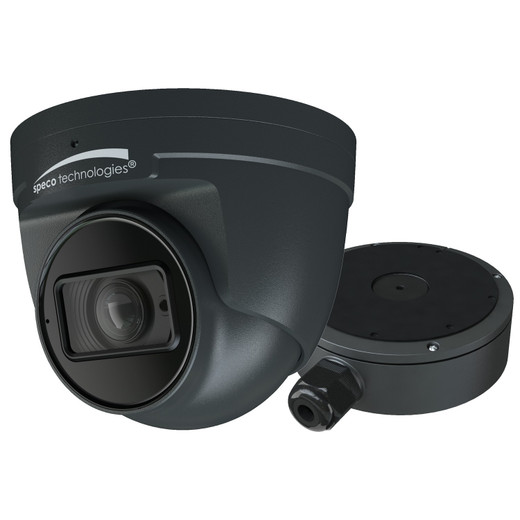

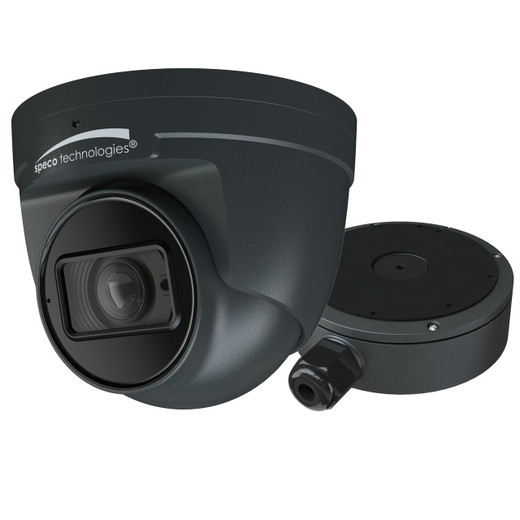

Speco Technologies O4FT2M 4MP Flexible Intensifier AI IP Turret Camera
Overview
The Speco Technologies O4FT2M is a 4MP flexible intensifier AI-enabled IP turret camera designed for security integrators and IT managers requiring robust surveillance in mixed lighting environments. This model combines a 2.8-12mm motorized varifocal lens with integrated junction box installation for streamlined deployment. The O4FT2M delivers 4 megapixel resolution with AI-powered analytics capabilities, making it suitable for perimeter monitoring, facility surveillance, and multi-zone coverage scenarios where flexible field-of-view adjustment is essential.
When this is the correct choice
The O4FT2M is ideal when you need:
- Flexible focal length adjustment without camera repositioning—the 2.8-12mm motorized lens eliminates fixed-lens constraints.
- AI-powered object detection and behavioral analytics at the edge, reducing server bandwidth and enabling real-time alerts.
- Compact turret form factor that accommodates corner-mount and ceiling-surface installations in retail, hospitality, or industrial environments.
- NDAA-compliant procurement for federal projects and government-funded security deployments.
- Low-light performance with intensifier technology supporting extended operational hours.
When to choose a different model
Consider alternative solutions if your deployment requires:
- Fixed ultra-wide or ultra-narrow field of view—a single-focal-length turret may be more cost-effective.
- Extreme long-range IR performance beyond intensifier capability—PTZ or dedicated IR bullet cameras offer greater throw distances.
- Standalone edge storage and local processing without network dependency.
- Weatherproof IP67 rating for submersion or heavy washdown environments—verify environmental ratings for your specific deployment zone.
Optics and field of view
The O4FT2M incorporates a 2.8-12mm motorized varifocal lens, providing approximately 110° horizontal field of view at 2.8mm wide angle and 28° at 12mm telephoto. Motorized focus and zoom control via network interface allow integrators to adjust framing post-installation without site revisits. This flexibility is particularly valuable in retrofit deployments where precise mounting height may be constrained.
Imaging performance and low light
At 4 megapixels, the O4FT2M delivers 2688×1520 resolution across 16:9 aspect ratio, suitable for facial recognition at moderate distances and license plate capture in parking areas. The flexible intensifier technology enhances low-light sensitivity without introducing excessive noise, extending operational effectiveness into twilight and overcast conditions. The combination of intensifier and motorized lens zoom enables operators to enlarge critical detail in dim environments while preserving overall scene awareness.
Analytics and edge capabilities
AI-enabled analytics processing occurs on the camera itself, supporting real-time object classification, motion detection, and behavioral rule triggers. This edge-processing architecture reduces WAN bandwidth consumption and server load, critical in multi-camera deployments. Integration with standard VMS platforms via ONVIF allows seamless incorporation into existing Milestone, Genetec, or other ONVIF-compatible systems.
Video encoding and streaming
The O4FT2M supports H.264 and H.265 compression modes, allowing integrators to balance image quality against bandwidth requirements. Configurable bitrate and frame rate deliver flexibility for bandwidth-constrained networks and high-utilization surveillance grids. MJPEG streaming is available for real-time review and forensic playback.
Network and security
The camera operates over standard Ethernet with PoE (802.3af/at) power delivery, eliminating separate 12VDC runs. ONVIF Profile S support ensures vendor-agnostic integration. Network security features include firmware signing, secure boot, and optional 802.1X authentication for enterprise environments. NDAA compliance ensures no restricted components from designated suppliers.
Environmental and durability ratings
The turret form factor with included junction box provides environmental sealing suitable for indoor and covered outdoor installations. Verify specific IP and IK ratings for your deployment zone—turrets typically offer moderate vandal resistance suitable for general-access areas rather than high-risk exterior mounting.
Power and installation notes
PoE power delivery simplifies infrastructure; the O4FT2M operates within standard PoE+ allocations. The integrated junction box streamlines wiring and reduces installation time at camera terminus. Motorized lens control requires network configuration via integrator tools or VMS interface. Ensure PoE switch and cabling meet 802.3at minimum specifications.
What is included
Contact us for complete package details.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
During integration planning for a multi-site retail deployment, the Speco O4FT2M proved particularly valuable when mounting locations were finalized after infrastructure buildout. The motorized 2.8-12mm lens allowed us to optimize zoom framing post-installation without pulling additional cabling or repositioning cameras. The O4FT2M's flexible intensifier technology delivered consistent image quality through opening hours and into evening operations without requiring separate low-light camera models.
Technical Highlights:
- Motorized varifocal lens: 2.8-12mm motorized adjustment via network eliminates fixed-lens constraints and supports post-installation field-of-view optimization.
- AI analytics at edge: On-camera object detection and behavioral analysis reduce server bandwidth and enable real-time rule-based triggers without external processing overhead.
- Flexible intensifier: Low-light imaging technology extends operational effectiveness into twilight and overcast conditions without excessive noise penalty.
- PoE-powered: Standard 802.3af/at delivery simplifies power infrastructure and reduces installation complexity across multi-camera grids.
Deployment Considerations:
- Plan network configuration for motorized lens control—VMS or integrator tools must be available for post-install zoom adjustment.
- Verify PoE switch capacity when deploying multiple O4FT2M units; ensure 802.3at minimum to support motorized lens draw during operation.
- Intensifier performance is optimized for twilight and low-ambient environments; in absolute darkness, external IR supplementation may be required depending on scene requirements.
- NDAA compliance streamlines federal and government procurement workflows; verify documentation chain during tender response.
The O4FT2M is a pragmatic choice for integrators balancing flexibility, edge analytics, and federal compliance in mid-scale deployments. The motorized lens eliminates post-installation repositioning and the AI analytics reduce VMS server load—meaningful operational benefits that justify the investment in environments where remote zoom adjustment and real-time alerting are operational requirements.
