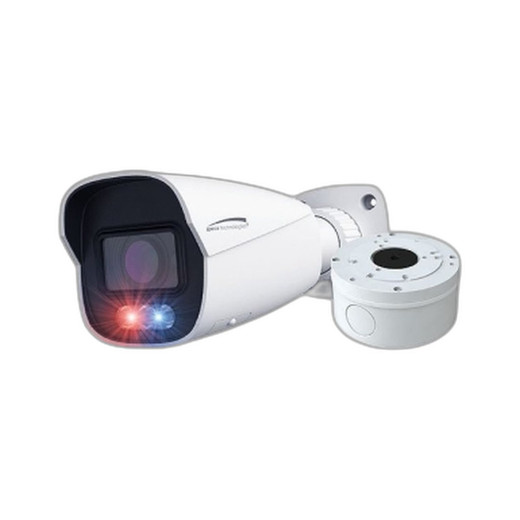

Speco Technologies O4BDD1M 4MP AI Bullet Camera with Motorized Zoom
Overview
The Speco Technologies O4BDD1M is a 4MP outdoor IP bullet camera built for security integrators deploying fixed surveillance on perimeters, parking areas, and building entries where motorized lens adjustment saves installation labor. This model combines 2592x1520 resolution at 30 fps with integrated AI analytics—motion detection, line crossing, intrusion detection, and vehicle detection—all running on-camera to minimize bandwidth and storage overhead. The motorized 2.8-12mm varifocal lens lets you adjust field of view post-install without repositioning the camera, a meaningful advantage in sites where physical access changes or mounting height is constrained. IP66 environmental rating and PoE power delivery make this a practical choice for distributed outdoor networks in government, critical infrastructure, and enterprise environments where IP cameras must withstand weather and integrate into existing PoE infrastructure.
Key Features
- Motorized 2.8-12mm varifocal lens: Delivers variable horizontal field of view from 108° (wide angle) to 28° (telephoto), allowing you to adjust zoom and focus remotely or on-site without physical camera repositioning—a major labor saver on retrofit jobs or when mounting height limits initial field-of-view prediction.
- 4MP resolution (2592x1520) at 30 fps: Sufficient detail for vehicle identification and license plate recognition at moderate distances (50–100 feet depending on lens position); stepping up to 8MP+ is warranted only if you need facial recognition or extreme long-distance clarity beyond 150 feet.
- H.265+ compression: Cuts bandwidth and storage requirements roughly in half versus H.264—a tangible cost saving on 24/7 recording across multiple-camera sites, especially over slower WAN links.
- True Wide Dynamic Range (WDR): Preserves detail in both bright sunlit areas and dark shadows simultaneously, essential for outdoor mixed-light scenes (e.g., building entrances with morning sun and overhang shade) where standard dynamic range would blow out or crush detail.
- Integrated AI analytics at the edge: Motion detection, line crossing, intrusion detection, and vehicle detection run on-camera rather than on a central NVR—reduces false alarms, enables event-driven recording, and lowers VMS CPU load. Vehicle detection specifically helps parking and loading-dock applications by filtering pedestrian noise.
- PoE power (802.3af): Draws under 13W, so standard PoE switches supply power without a separate 12VDC supply; one cable carries both video and power, simplifying rough-in and reducing conduit congestion on dense deployments.
- IP66 environmental rating: Direct rain and dust won't penetrate; suitable for outdoor mounting without an enclosure. Note: IP66 stops spray and temporary submersion, but skip this model if you need full underwater operation (IP67+) or explosive-atmosphere ATEX certification.
- Day/night operation with mechanical IR cut filter: Switches automatically between color (daylight) and infrared (night) sensitivity; integrated IR illumination supports viewing in complete darkness, though range depends on scene reflectance and lens aperture.
- NDAA Section 889 compliant: Eligible for U.S. government and critical infrastructure deployments where Chinese-origin components are prohibited.
Integration and Compatibility
The O4BDD1M supports network video recorders and video management systems via ONVIF and standard IP protocols, making it compatible with Milestone XProtect, Genetec, and other mainstream platforms. Network administrators should confirm PoE switch capacity; at under 13W per camera, a standard 48-port PoE+ switch can handle 20–30 units depending on uplink and other loads. For sites with longer cable runs (100+ meters), use PoE+ or Cat6a to maintain voltage headroom.
When This Is the Right Choice
Deploy the O4BDD1M where motorized zoom eliminates a site visit to adjust field of view, where 4MP detail suffices for vehicle tracking and plate reading at 50–100 feet, and where on-camera AI analytics reduce false alerts. Parking lots, building perimeters, and loading docks are ideal. NDAA compliance is a win for government contracts. PoE power eliminates 12VDC wiring labor.
When to Consider an Alternative
Choose a fixed-lens bullet if motorized zoom isn't needed—you'll save cost and simplify the setup. Select an 8MP or higher model if long-distance facial recognition or extreme detail is required. For active monitoring or extended object tracking, a PTZ camera is necessary. Extreme low-light environments (below 0.01 lux) demand specialized low-light sensors or thermal imaging. Indoor dome applications require a form-factor change.
Frequently Asked Questions
Q: Is the O4BDD1M NDAA Section 889 compliant?
A: Yes, the O4BDD1M is NDAA-compliant and eligible for U.S. government and critical infrastructure deployments.
Q: What is the maximum infrared (night vision) range on the O4BDD1M?
A: Integrated IR illumination supports night vision, though exact range depends on scene reflectance, lens aperture at the selected zoom level, and target size. At 2.8mm wide angle, range is longer; at 12mm telephoto, range is reduced due to narrower field of view.
Q: Can I adjust the O4BDD1M's zoom remotely after installation?
A: Yes, the motorized 2.8-12mm lens allows remote zoom and focus adjustment via compatible VMS or directly on-site without physical camera repositioning.
Q: What is the power consumption of the O4BDD1M?
A: The O4BDD1M draws under 13W via standard PoE (802.3af), eliminating the need for a separate DC power supply.
Q: Does the O4BDD1M work with Milestone XProtect and other third-party VMS platforms?
A: Yes, the O4BDD1M supports ONVIF and standard IP protocols, making it compatible with Milestone XProtect, Genetec, and other mainstream video management systems.
Q: What compression formats does the O4BDD1M support?
A: The O4BDD1M uses H.265+ compression, which cuts storage and bandwidth roughly in half compared to H.264.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The O4BDD1M hits a practical sweet spot for outdoor surveillance networks where budget and integration speed matter. The motorized 2.8-12mm lens is the real differentiator here—field adjustments without site revisits save labor on jobs where initial zoom placement isn't obvious. The 4MP at 30 fps covers plate reading and vehicle identification to roughly 75–100 feet depending on zoom position; beyond that, you need higher resolution.
Technical Highlights:
- Motorized 2.8–12mm lens (108° to 28° FOV): Post-install zoom and focus adjustment eliminates a trip back to the pole. Useful on retrofit jobs where you can't predict optimal zoom until footage rolls.
- H.265+ compression: Real-world savings of 40–60% storage vs. H.264 across a 10-camera site recording 24/7 adds up fast—especially on 30-day retention policies.
- True WDR (day/night with mechanical IR cutoff): Mixed-light outdoor scenes (sun + shadow) stay balanced without clipping highlights or crushing shadow detail. Mechanical IR cutoff is more reliable than electronic switching for long-term outdoor durability.
- On-camera AI (motion, line crossing, intrusion, vehicle detection): Vehicle detection specifically cuts false alarms in parking and loading-dock scenarios. Edge analytics also reduce NVR CPU load on dense multi-camera deployments.
- Sub-13W PoE draw: Negligible switch footprint—a 48-port PoE+ switch handles 25–30 units comfortably, assuming balanced load and adequate uplink.
Deployment Considerations:
- Zoom range is modest at 4.3x: This is not a PTZ. At 12mm telephoto, you get 28° FOV—useful for narrow entry points or long hallways, but you'll need multiple cameras to cover a wide parking lot from a single pole.
- 4MP is the ceiling for plate reading: License plate OCR is marginal beyond 100 feet with 4MP at 12mm zoom. If your spec demands plate capture at 150+ feet, jump to 8MP or higher-resolution siblings in the Speco line.
- IR range is distance-dependent on zoom: At 2.8mm wide, IR reach is good; at 12mm telephoto, you lose a third of the range because the zoom narrows the field. Plan night-vision coverage carefully on perimeters longer than 200 feet.
- NDAA compliance is baked in: No gotchas here—deploy on federal contracts without component-origin review.
Best fit: outdoor perimeter and parking lots where motorized zoom saves labor, where 4MP detail suffices, and where on-camera AI analytics reduce false alerts. NDAA-eligible government and critical infrastructure sites are natural targets. Skip this model if you need extreme low-light performance, facial recognition, or pan-tilt-zoom tracking.
