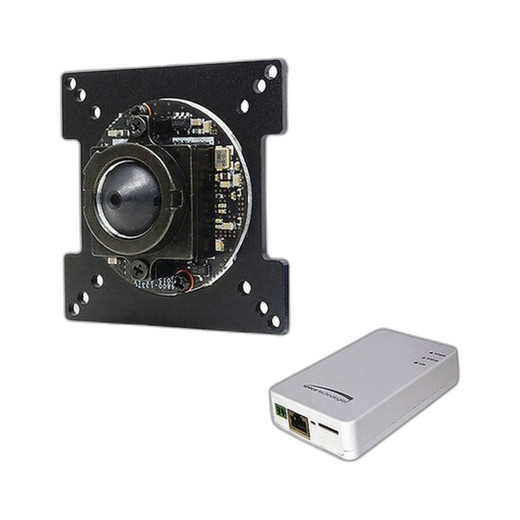

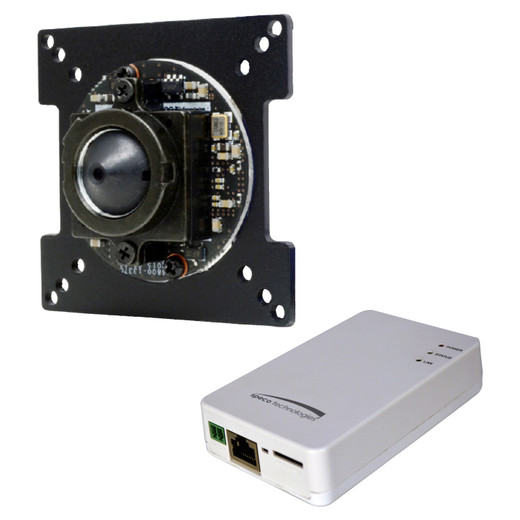

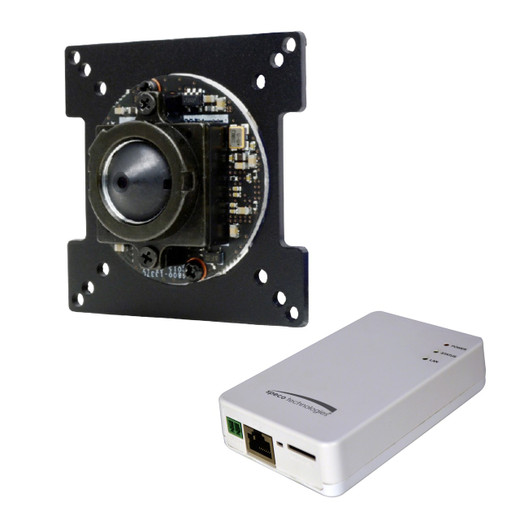

Speco Technologies O2IBD3 2MP Board IP Camera
Overview
The Speco Technologies O2IBD3 is a 2MP board-form IP camera designed for compact surveillance deployments where space constraints or aesthetic considerations demand a minimal footprint. This fixed camera delivers 2-megapixel resolution in a board-style form factor, suitable for integration into custom enclosures, kiosks, or OEM applications. The O2IBD3 represents a practical choice for integrators building cost-effective surveillance systems where resolution requirements are moderate and installation flexibility is essential.
When this is the correct choice
The O2IBD3 excels in scenarios requiring a compact, board-level camera module. Consider this model when:
- Space limitations prevent traditional dome or bullet camera installation
- Integration into custom enclosures or specialized mounting is necessary
- OEM or reseller applications demand a modular camera component
- Budget-conscious deployments prioritize 2MP resolution adequacy
- Flexibility in housing and lens configuration is a design requirement
When to choose a different model
The O2IBD3 may not be optimal if your deployment requires weatherproof outdoor IP ratings, built-in vandal resistance housings, motorized zoom lenses, thermal imaging, or higher megapixel counts for detailed wide-area coverage. Organizations requiring pre-integrated dome, turret, or bullet cameras with certified IP66/IP67 ratings should evaluate Speco's enclosed camera lines instead.
Optics and field of view
The O2IBD3 features a fixed 2.8mm lens, delivering a wide field of view suitable for general surveillance and monitoring applications. The 2.8mm focal length provides a broader perspective than 4mm or 6mm options, making it ideal for close-range monitoring, entrance areas, or retail environments where wide coverage from a compact source is beneficial. The fixed lens design eliminates motorized zoom complexity, reducing power consumption and simplifying installation.
Imaging performance and low light
Operating at 2-megapixel resolution, the O2IBD3 provides 1920×1080 (1080p) or equivalent detail for identification and monitoring tasks. Board cameras in this class prioritize cost and integration flexibility over extreme low-light performance; integrators should evaluate illumination conditions on site and plan supplemental lighting or IR illumination as needed. The sensor and lens combination support day/night operation with appropriate environmental lighting or external IR sources.
Analytics and edge capabilities
The O2IBD3 operates as a straightforward imaging sensor and does not include embedded video analytics, object detection, or deep learning processing. Analytics tasks are delegated to the VMS or edge appliance layer, allowing system designers to centralize intelligence and scale processing across multiple cameras without per-camera licensing overhead.
Video encoding and streaming
As a board camera component, the O2IBD3 integrates with IP-based video servers, encoders, or NVR platforms. Video format support and streaming parameters depend on the encoding appliance or NVR to which the sensor is connected. Integrators should verify codec support (H.264, H.265, MJPEG) and frame rate capability with the target VMS platform.
Network and security
The O2IBD3 is designed for network integration via Ethernet connectivity through a video encoder or server module. Network security depends on the encoder or NVR appliance handling the camera signal. Ensure the encoding device supports HTTPS, secure credential storage, and current firmware updates. IP-based deployments benefit from network segmentation and standard IT security practices such as VLANs, 802.1X authentication, and encrypted management channels.
Environmental and durability ratings
As a bare board camera, the O2IBD3 lacks inherent environmental sealing and must be housed in a protective enclosure for any application beyond clean, controlled indoor environments. Integrators are responsible for selecting or designing appropriate housings that meet target IP ratings (IP66 for splash/dust protection, IP67 for temporary submersion, etc.). Housing material selection—aluminum, stainless steel, or polycarbonate—should align with corrosion resistance and vandalism concerns in the deployment location.
Power and installation notes
Power delivery to the O2IBD3 depends on the video encoder or server module into which it is integrated. Consult the encoding appliance documentation for voltage and current specifications. Installation requires mechanical mounting within the selected enclosure and electrical connection to the encoder. Board-level cameras offer flexibility for OEM and custom integrations but demand careful attention to connector compatibility and mechanical fitment during design and deployment phases.
What is included
Contact us for package details.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've worked with board-form cameras like the Speco O2IBD3 in several integration projects where standard enclosures were impractical or cost-prohibitive. Board cameras demand more engineering upfront—housing selection, connector validation, and thermal management all fall to the integrator—but they unlock flexibility that pre-packaged cameras cannot match. The 2MP, 2.8mm configuration works well for mid-range identification tasks in indoor or controlled environments.
Technical Highlights:
- Compact Board Form Factor: Minimal footprint allows integration into custom enclosures, kiosks, and OEM applications without the constraints of traditional dome or bullet camera dimensions.
- 2MP Resolution: 1080p-equivalent detail suitable for monitoring, entrance coverage, and retail loss prevention where higher megapixel counts are not required.
- 2.8mm Fixed Lens: Wide field of view optimized for close-range and broad-area surveillance; fixed design minimizes power draw and mechanical complexity.
Deployment Considerations:
- Housing responsibility lies with the integrator; plan for appropriate IP ratings and material durability based on environment (indoor vs. splash/dust/corrosion exposure).
- Encoder or NVR appliance must be selected and validated for video codec support, streaming parameters, and network security features before camera integration.
- Confirm connector compatibility and mechanical fitment with your encoding platform during design phase to avoid installation delays.
The O2IBD3 is a solid choice for integrators with the design capability to house and power the sensor appropriately. Pair it with a robust encoder and secure VMS backbone, and you'll deliver a cost-effective surveillance solution tailored to your customer's specific constraints.
