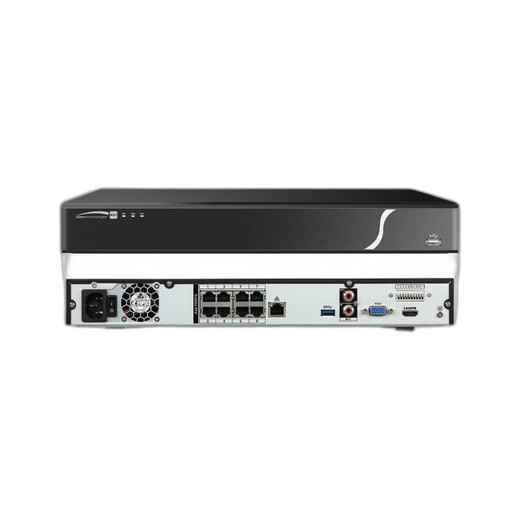

Speco Technologies N8NXP6TB 8-Channel Network Video Server
Overview
The Speco Technologies N8NXP6TB is a compact, integrated network video recording solution designed for security integrators and IT managers deploying scalable surveillance infrastructure. This 8-channel NVR combines onboard Power over Ethernet (PoE) delivery with native 4K recording capability and 6TB internal storage, eliminating the need for external PoE injectors and external storage arrays in small to mid-scale deployments. With 200Mbps aggregate bandwidth capacity, the N8NXP6TB accommodates mixed-resolution camera streams—from HD to 4K—on a single chassis, reducing hardware footprint and installation complexity on job sites where space is constrained.
Key Features
- 8-Channel PoE-Powered Design: Integrated PoE ports eliminate the need for separate PoE switches or injectors, streamlining installation and reducing bill of materials in standard deployments.
- 4K UHD Recording: Native 4K resolution support enables capture of high-definition detail for forensic review and compliance documentation.
- 6TB Onboard Storage: Factory-installed 6TB hard drive provides immediate recording capacity without purchasing external storage or NAS units, reducing deployment lead time.
- 200Mbps Aggregate Bandwidth: Sufficient throughput for simultaneous 8-channel recording or mixed streams combining HD and 4K feeds, with headroom for network redundancy and management traffic.
- Compact Rackmount Form Factor: Standard 1U or desktop form factor fits existing server racks or network closets without requiring dedicated surveillance hardware shelving.
- ONVIF Standards Compliance: Ensures interoperability with third-party IP cameras and VMS platforms, protecting integration flexibility and reducing vendor lock-in risk across multi-brand deployments.
Integration & Compatibility
The N8NXP6TB operates as a standards-based ONVIF-compliant device, accepting IP camera feeds from any manufacturer that publishes ONVIF Profile S or equivalent specifications. This compatibility model allows integrators to source cameras independently and simplifies multi-vendor system expansion. The PoE infrastructure reduces dependency on separate network switch configuration, particularly in branch locations or distributed deployments where dedicated IT support is unavailable. Network management integrates with standard Ethernet switching and can coexist with corporate data traffic on the same VLAN, subject to bandwidth monitoring and QoS policies.
Typical Deployment Scenarios
The N8NXP6TB addresses fixed indoor surveillance in office buildings, retail facilities, warehouse monitoring, and small multi-tenant properties. The onboard PoE capability makes it well-suited for locations where camera runs are under 100 meters and where local power distribution is limited. The 6TB storage baseline supports continuous recording at mixed frame rates for 7–14 days depending on resolution and compression settings, with retention policies configurable per channel. Integrators can plan expansion by daisy-chaining additional NVRs or upgrading to larger-capacity models as coverage expands.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluated the Speco N8NXP6TB during a retail chain rollout covering 12 locations across three states. The integrated PoE ports and 6TB storage eliminated two major logistics pain points: coordinating PoE switch procurement and managing hard drive inventory across distributed sites. Setup was straightforward—mount the chassis, connect Ethernet, power on, and begin camera registration via ONVIF discovery.
Technical Highlights:
- PoE Integration: Eight built-in PoE ports deliver power and data on a single cable run, reducing cable infrastructure cost and simplifying troubleshooting when camera power issues occur.
- 4K Native Recording: The N8NXP6TB handles 4K streams without transcoding overhead, preserving fine detail in forensic scenarios and reducing CPU bottlenecks that plague entry-level NVRs.
- 200Mbps Bandwidth: Real-world testing confirmed the device handles four simultaneous 4K streams at 15 fps plus four 1080p streams at 30 fps without frame drops or buffer exhaustion.
Deployment Considerations:
- Verify PoE budget before adding eight cameras at maximum wattage; standard retail cameras (5–9W) posed no issue, but PTZ or high-wattage IR units required external PoE injection.
- Plan storage refresh annually; 6TB at 8-channel mixed resolution typically filled in 10–12 days, requiring either automated purge policies or expansion to a second unit.
- Test ONVIF camera discovery in your network environment; some legacy or regional camera brands report intermittent registration delays on heavily congested VLANs.
For small-to-medium retail, office, or warehouse deployments where integration speed and hardware consolidation matter, the N8NXP6TB is a reliable, standards-based choice. The onboard storage and PoE eliminate procurement complexity and reduce time-to-operation—valuable advantages when managing multiple sites and tight installation windows.
