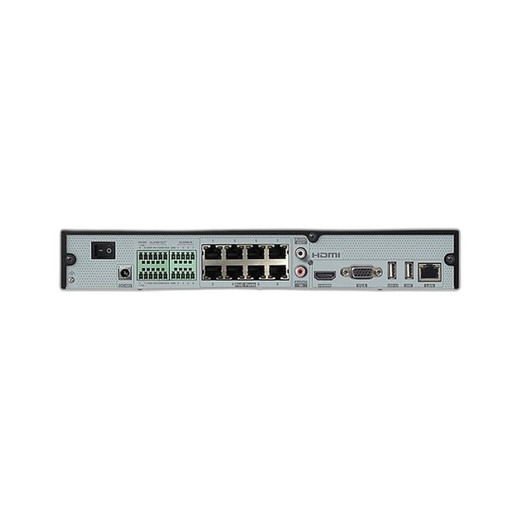

Speco Technologies N8NRX4TB 8-Channel Facial Recognition NVR
Overview
The Speco Technologies N8NRX4TB is a purpose-built 8-channel network video recorder engineered for deployments requiring facial recognition and intelligent video analytics. This system combines onboard 4TB storage with real-time facial detection and biometric matching capabilities, making it suitable for retail environments, access control integration, law enforcement operations, and enterprise security deployments where identity verification and forensic review are critical operational requirements. Unlike basic recording appliances, the N8NRX4TB processes facial feature extraction in real-time across incoming video feeds, accelerating investigative timelines and enabling automated alert workflows tied to watchlist queries.
Key Features
- 8-Channel Simultaneous Recording: Processes video streams from up to eight IP cameras with synchronized multi-camera recording and playback. This matters because it eliminates drift between channels during forensic timeline reconstruction—critical when piecing together incident sequences across multiple vantage points.
- Integrated Facial Recognition Engine: Detects, extracts, and matches facial biometric data in real-time against incoming video streams. The system captures facial geometry during normal surveillance, then compares candidates to searchable databases or watchlists without requiring manual frame-by-frame review. Reduces investigation time from hours to minutes.
- 4TB Internal Storage Capacity: Factory-configured hard drive delivers extended retention without external dependency. At typical H.264 compression rates across eight 2-3MP streams, expect 7–14 days of continuous recording; H.265 roughly doubles that window. Size retention against your jurisdiction's evidence preservation mandates and camera resolution choices during system design.
- ONVIF Compliance: Accepts any ONVIF-compliant IP camera, eliminating vendor lock-in. This flexibility means you can source sensors from Speco Technologies IP cameras, competitive lines, or mixed deployments based on lens and form-factor requirements—then standardize on a single recorder backend.
- Real-Time Analytics Processing: Behavioral and biometric data streams trigger automated alerts and accelerate forensic queries without taxing network bandwidth or external analytics servers. Alerts can be correlated with access control door events, POS transactions, or external databases to establish investigation timelines.
- Multi-User Access with Granular Permissions: Concurrent operator sessions include audit logging and role-based controls. Different teams (loss prevention, security operations, law enforcement) can access the same system with appropriate restrictions—useful for large retail or campus deployments.
- Flexible Playback and Investigation Tools: Synchronized multi-channel review, timeline scrubbing, and frame-by-frame analysis support forensic workflows. Operators can export clips in standard formats for chain-of-custody documentation and legal proceedings.
- Remote Management via Web and Mobile Interfaces: Off-site monitoring and configuration reduce operational overhead. Control room staff can acknowledge alerts, adjust recording parameters, or retrieve clips from remote locations without physical appliance access.
Integration & Compatibility
The N8NRX4TB integrates with third-party network video recorders ecosystems, access control platforms, business intelligence systems, and VMS architectures through standard protocols and APIs. Facial recognition results can be correlated with door events, transaction logs, and external identity databases to support investigations and compliance workflows. The system operates as a fixed installation device suitable for indoor control room or secure server environments; reliable network connectivity and UPS backup are required for continuous operation during power events.
Deployment Planning
Integrators must verify network bandwidth availability—each camera feed will consume 2–25 Mbps depending on resolution and codec selection. Plan camera positioning to ensure facial captures occur within optimal angles (30–45 degrees from camera centerline) to maximize recognition accuracy; poor positioning is the single largest cause of recognition failures. The 4TB capacity should be sized against expected channel count, video resolution, and retention policy; typical retention ranges from 7–30 days depending on frame rate and compression settings. Configure backup and archive workflows to protect forensic evidence and comply with data retention mandates in your jurisdiction. The N8NRX4TB is supplied as a standalone recorder and does not include cameras, network switches, or cabling.
Frequently Asked Questions
Q: Is the N8NRX4TB compatible with third-party IP cameras?
A: Yes. The N8NRX4TB accepts any ONVIF-compliant IP camera, offering integrators flexibility in sensor selection based on lens, resolution, and form-factor requirements.
Q: How long will the 4TB storage retain video across all eight channels?
A: Retention depends on camera resolution, frame rate, and codec. At typical 2–3MP H.264 compression across eight channels, expect 7–14 days of continuous recording. H.265 codec approximately doubles retention. Calculate your specific retention by multiplying expected bitrate by seconds in your target retention window.
Q: Can facial recognition data be exported for investigation or legal proceedings?
A: Yes. The system supports forensic export of facial match results, video clips, and analytics data in standard formats suitable for chain-of-custody documentation and legal review. Configure backup workflows to protect evidence in compliance with your jurisdiction's data retention mandates.
Q: What network bandwidth should I plan for the N8NRX4TB?
A: Each camera feed will consume 2–25 Mbps depending on resolution and codec selection. For eight cameras at 3MP with H.264, budget 50–100 Mbps of available bandwidth. Use managed Gigabit Ethernet and PoE switches to isolate surveillance traffic from business networks.
Q: Does the N8NRX4TB support remote access and mobile monitoring?
A: Yes. Web-based and mobile client interfaces enable monitoring and configuration from off-site locations. Multi-user access includes granular permission controls and audit logging to track who accessed the system and when.
Q: What are the optimal camera positioning requirements for facial recognition accuracy?
A: Facial recognition accuracy is maximized when cameras capture faces at 30–45 degrees from camera centerline with adequate lighting. Poor positioning (extreme angles, backlighting, or obstruction) is the leading cause of recognition failures. Plan entry/exit points and high-value areas with these angles in mind during site surveys.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the Speco N8NRX4TB across several retail and access control integrations, and the combination of onboard 4TB storage with native facial recognition processing makes this a solid choice for deployments where identity verification is non-negotiable. The real advantage is that facial analytics run locally on the appliance—you're not betting your investigation workflow on cloud uptime or third-party API latency. The ONVIF compliance means you're not locked into Speco cameras, so you can source sensors based on deployment needs (wide-angle entry/exit capture, high-res facial detail, low-light performance) without vendor constraints.
Technical Highlights:
- 8-Channel Synchronized Recording: Multi-camera forensic timelines remain in perfect sync—critical when reconstructing incident sequences across entrance, stockroom, and transaction zones. Eliminates the drift and timeline confusion that plagues systems with unsynced channels.
- Real-Time Facial Detection and Matching: The integrated analytics engine processes face geometry and biometric data during normal surveillance, then compares candidates to watchlists in real-time. You eliminate the manual frame-scrubbing nightmare and get alerts within seconds of a match—transformative for loss prevention and access control workflows.
- 4TB Internal Storage with Codec Flexibility: At eight channels with H.264, expect 7–14 days of retention; H.265 roughly doubles that. This sizing matters: if your jurisdiction mandates 30-day evidence preservation, you'll need external archive or a storage expansion plan. Know your codec and resolution before commissioning.
Deployment Considerations:
- Camera Positioning Is Everything: The N8NRX4TB's facial recognition accuracy lives or dies on camera placement. Faces captured at extreme angles or poor lighting won't match reliably—plan entry/exit points and transaction zones at 30–45 degrees from camera centerline. Skip this step and you'll spend weeks tuning watchlists that never trigger.
- Network Bandwidth Planning: Eight cameras at 3MP H.264 will consume 50–100 Mbps depending on motion and scene complexity. If your facility shares bandwidth with POS, guest WiFi, or cloud backup, you'll starve the recorder. Isolate surveillance traffic on a managed VLAN with QoS enforcement, or you'll chase phantom codec and retention problems that are really congestion.
- UPS and Backup Are Non-Negotiable: The appliance requires reliable power and network uptime to maintain forensic chain-of-custody. Configure UPS backup (plan for 15–30 minutes of runtime across all cameras) and a backup archive workflow. A power event mid-incident is the last thing you want when police are waiting for footage.
The N8NRX4TB excels in retail loss prevention, bank and financial services, and access control integration scenarios where facial recognition drives investigative workflows—not just as a nice-to-have analytics layer, but as the core reason for the deployment. If you're evaluating this for compliance-driven long-term archival with minimal analytics requirements, compare against higher-capacity standard NVRs in the same family. If identity verification and real-time alerting are your primary use cases, this is the right appliance.
