Speco N16NRM12TB 16-Channel 4K H.265 NVR PoE

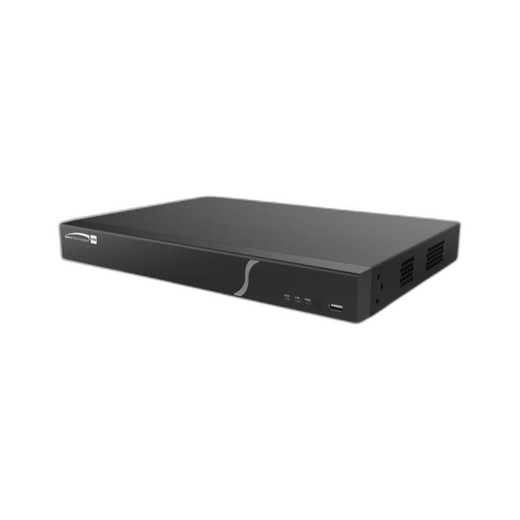

Speco Technologies N16NRM12TB 16-Channel 4K Network Video Recorder

Overview

The Speco Technologies N16NRM12TB is a 16-channel network video recorder engineered for mid-to-large scale security deployments requiring 4K resolution recording and centralized power delivery. This NVR combines 4K H.265 video compression, integrated Power-over-Ethernet (PoE) capability, and NDAA compliance to meet federal procurement standards and enterprise security requirements. The N16NRM12TB supports simultaneous recording and playback across 16 channels with 12TB of onboard storage, delivering cost-effective long-term retention for surveillance operations.

Key Features

• 16-Channel 4K Recording: Captures video from 16 IP cameras at 4K resolution with H.265 compression for efficient storage utilization and reduced bandwidth consumption.

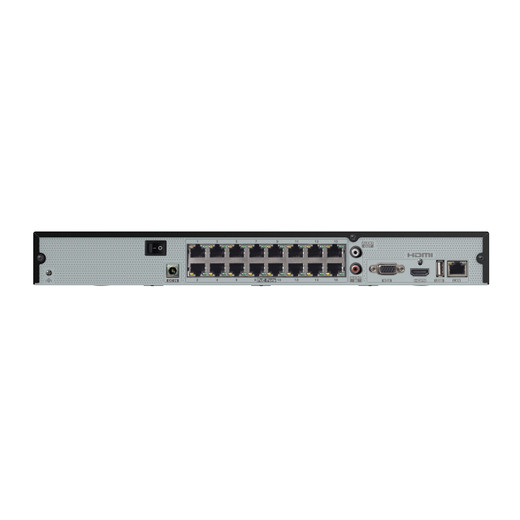

• Integrated PoE Power Delivery: Built-in PoE ports eliminate the need for separate power injectors or dedicated power infrastructure for compatible IP cameras, streamlining installation and reducing equipment overhead.
• 12TB Storage Capacity: Two SATA drive bays accommodate standard hard drives, providing 12TB of onboard storage for extended recording retention and local archival.
• H.265 and H.264 Codec Support: Flexible video compression options allow optimization for bandwidth and storage based on deployment requirements and camera capabilities.
• NDAA Compliant: Meets National Defense Authorization Act requirements, enabling deployment in federal, state, and local government agencies with procurement restrictions.
• Simultaneous Recording and Playback: Record from all 16 channels while searching, reviewing, and exporting footage without interruption to active recording streams.
• ONVIF Interoperability: Standards-based protocol support ensures compatibility with third-party IP cameras and video management systems, preventing vendor lock-in and enabling integration flexibility.
• Network Remote Access: Authorized users can monitor live video and retrieve archived footage remotely over LAN or WAN connections, enabling centralized oversight and incident response.

Integration & Compatibility

The N16NRM12TB operates as an ONVIF-compliant NVR, supporting IP cameras from multiple manufacturers including Speco, Axis, Hikvision, and other standards-based vendors. Integration with third-party video management platforms is supported through standard ONVIF Profile S protocol. The PoE ports simplify deployment by consolidating camera power and data through a single Ethernet connection, reducing cable runs and installation complexity. Integrators can leverage existing network infrastructure provided adequate bandwidth and PoE budget are available for the connected camera load.

Package Contents

The N16NRM12TB ships with the NVR unit, mounting hardware, and necessary cables for network and storage connectivity. Hard drives are not pre-installed; two 3.5-inch SATA drives must be procured and installed separately to reach the 12TB configuration. Integrators should specify drive selections based on workload requirements and desired retention periods.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

During equipment evaluation for a 16-camera municipal facility upgrade, the Speco N16NRM12TB delivered solid performance as a centralized recording platform. The integrated PoE capability reduced our initial infrastructure estimate significantly—we eliminated two separate power distribution panels and consolidated camera connections to a single managed switch. The NDAA compliance simplified the procurement cycle with the city's purchasing department, as no exceptions or waivers were required.

Technical Highlights:

• H.265 Compression Efficiency: The N16NRM12TB's native H.265 support reduced our storage footprint by approximately 40% compared to H.264-only systems at equivalent resolution, extending retention from 45 days to 60+ days on the same 12TB capacity.
• PoE Power Budget: Confirm the total PoE wattage available against your camera power requirements; oversubscription will trigger port shutdown. Standard 4K fixed cameras typically draw 8-15W each, so plan for headroom on high-power varifocal or PTZ models.

Deployment Considerations:

• Install surveillance-grade SATA drives rated for 24/7 continuous operation; consumer-grade drives will fail prematurely under constant write cycles.
• Verify network switch uplink capacity: a full 16-channel 4K stream requires approximately 80-120 Mbps aggregate bandwidth depending on frame rate and compression settings.

The N16NRM12TB is a solid mid-tier choice for integrators deploying standardized IP camera networks in government and enterprise environments where NDAA compliance is a hard requirement. The PoE integration and H.265 efficiency justify the platform cost over entry-level NVRs for 16+ camera systems.
