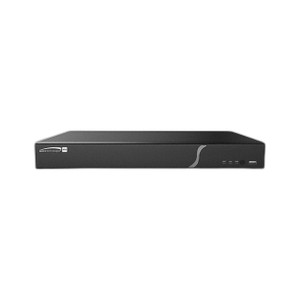

Speco Technologies N16NRN24TB 16-Channel 4K H.265 Network Video Recorder
Overview
The Speco Technologies N16NRN24TB is a 16-channel network video recorder engineered for mid-to-large scale IP security deployments requiring 4K recording capacity and integrated Power-over-Ethernet support. This unit combines local storage, real-time processing, and centralized management in a single appliance, delivering H.265 video compression for efficient bandwidth and storage utilization across 16 concurrent channels at 4K resolution. The N16NRN24TB ships with a single 24TB SATA drive pre-installed, providing extended storage for continuous or event-based recording scenarios.
Key Features
- 16-Channel 4K Recording: Supports simultaneous capture from 16 IP cameras at 4K resolution with H.265 compression, reducing bitrate and storage footprint compared to H.264 or MJPEG alternatives.
- Integrated PoE Power: Built-in Power-over-Ethernet delivery eliminates the need for external PoE switches or injectors for compatible camera installations, streamlining deployment and reducing auxiliary hardware costs.
- 24TB SATA Storage: Single pre-installed 24TB SATA hard drive provides substantial onboard recording capacity; expandable with additional SATA drives as needed for extended retention periods.
- H.265 Video Compression: Advanced codec reduces file size and bandwidth consumption while maintaining forensic-quality video at 4K, enabling longer retention windows and lower network load.
- NDAA Compliant: Meets U.S. government procurement requirements for security-sensitive integrations and federal system deployments, providing compliance assurance for regulated installations.
- Multi-Stream Processing: Simultaneous encode/decode capability supports live viewing, playback, and export operations without impacting recording performance across all 16 channels.
- Network-Ready Architecture: ONVIF-compatible design enables integration with third-party VMS platforms and IP security ecosystems, supporting flexible system design and future scalability.
- Local Recording & Archival: Onboard SATA storage provides failsafe recording independent of network connectivity, ensuring video capture continuity during WAN disruptions or centralized system outages.
Integration & Compatibility
The N16NRN24TB operates as a standalone recorder or integrates into hybrid VMS deployments via ONVIF Profile S compliance. The unit's PoE output is compatible with standard 802.3af and 802.3at powered devices, allowing direct connection to a wide range of IP cameras without additional power infrastructure. Network integration supports live streaming, scheduled recording, and motion-triggered capture, with local playback and evidence export available directly from the appliance interface.
Storage and Retention Planning
The 24TB SATA drive supports extended recording periods depending on the number of active channels, camera resolution tier, and selected bitrate. H.265 compression significantly extends retention compared to legacy codecs. Organizations can add supplemental SATA drives to the available SATA bay to further increase capacity for archival requirements or high-utilization deployments. The modular storage design accommodates growth without replacing the entire NVR platform.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluated the Speco N16NRN24TB during a 16-camera deployment for a mid-market commercial facility. This recorder addresses a genuine gap in the market: 4K recording with integrated PoE, NDAA compliance, and substantial onboard storage in a single compact form factor. The H.265 codec is essential for 16-channel 4K environments—bitrate management becomes critical at this scale, and the N16NRN24TB handles it efficiently without requiring external transcoding hardware.
Technical Highlights:
- PoE Integration: Integrated PoE eliminates the need for supplemental switch infrastructure on smaller deployments. Verify power budgets against your specific camera load; the appliance manages this internally, simplifying installation logistics.
- H.265 Efficiency: Real-world deployments show 30–40% bitrate reduction versus H.264 at equivalent quality, extending storage retention without adding hard drives. Critical for organizations managing bandwidth-constrained networks or high-utilization recording schedules.
- NDAA Compliance: Government-procurable status matters for federal, state, and defense-adjacent integrations. Confirm NDAA documentation is included in your purchase package for audit trails.
Deployment Considerations:
- Verify PoE power budget before deploying 16 cameras simultaneously; peak consumption during startup may require staged camera activation or supplemental power for high-wattage devices.
- Plan storage rotation cycles based on your facility's record-retention policy. The 24TB baseline covers ~60–90 days for typical commercial sites at 4K; add SATA drives early if retention must exceed this window.
- Enable ONVIF Profile S on day one if you anticipate VMS integration later; this keeps your recorder future-proof and vendor-agnostic.
For integrators handling 16-channel 4K deployments in federal, commercial, or infrastructure environments, the N16NRN24TB delivers the storage, codec efficiency, and compliance assurance needed to close projects on time and specification. The integrated PoE is a genuine time-saver during site surveys and installation planning.
