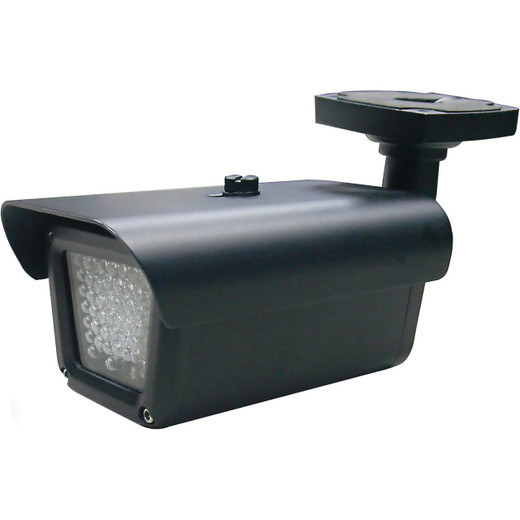

Speco Technologies IR60 Infrared Illuminator
Overview
The Speco Technologies IR60 is a dual voltage infrared illuminator engineered for extended-range night vision applications in security surveillance deployments. Delivering 180 feet of effective IR range with 55 infrared LEDs, the IR60 operates on both AC and DC 12V power, offering flexible integration into existing surveillance infrastructure. Built to IP66 specifications, this illuminator provides weatherproof performance in outdoor and exposed mounting environments, making it suitable for perimeter security, parking areas, building facades, and long-distance monitoring scenarios where ambient light is insufficient.
Key Features
- Extended IR Range: 180-foot effective illumination distance enables night vision coverage across large outdoor areas and building perimeters
- 55 Infrared LEDs: Multi-emitter array ensures uniform IR field coverage without hotspots or dark zones
- Dual Voltage Power: AC/DC 12V compatibility supports both switched AC power and isolated DC battery/power supply circuits, simplifying installation and reducing equipment diversity
- IP66 Weatherproof Rating: Sealed against dust and high-pressure water jets; suitable for rooftop, exterior wall, and environmental exposure without housing enclosures
- 60-Degree Beam Angle: Wide divergence pattern covers standard camera field-of-view angles (typically 40–70 degrees) without auxiliary optics or beam narrowing
- Night Vision Enhancement: Dedicated IR output eliminates reliance on residual ambient light; enables full surveillance operation during complete darkness
Deployment and Integration
The IR60 integrates directly with infrared-sensitive camera sensors (standard CMOS or CCD arrays with 850nm–940nm spectral response). Installation requires 12V DC or AC power feed routed from a central power supply, DVR auxiliary output, or dedicated IR supply module. Mount the illuminator within 6–12 inches of the camera lens to minimize parallax error; offset mounting causes IR illumination to miss the camera's field of view at distance. The IP66 rating permits direct outdoor mounting without supplementary weatherproof housings. For applications exceeding 180 feet or requiring multiple coverage zones, cascade two IR60 units with parallel power feeds.
Power and Environmental Specifications
The IR60 operates on 12V AC or DC input, drawing typical current loads within range of standard 12V power supplies and integrated DVR IR channels (typically 500–800 mA at full LED brightness). Weatherproof IP66 construction withstands rain, salt spray, and thermal cycling; verify mounting orientation to prevent water pooling at cable entry points. Confirm local electrical codes and grounding requirements when routing AC power to outdoor installations.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Speco IR60 addresses a specific and common deployment gap: full-color HD/4K cameras that require active IR illumination to function in complete darkness. During perimeter security system assessments, I regularly specify the IR60 where site surveys confirm zero ambient light after sunset and target distances exceed 120 feet—the practical limit of on-camera IR LEDs.
Technical Highlights:
- 180-Foot Range with 55 LEDs: The IR60's multi-emitter array delivers significantly longer throw than single on-camera IR modules, making it essential for parking lot surveillance, warehouse perimeters, and building-wide nighttime monitoring without color loss.
- Dual Voltage Flexibility: AC/DC 12V input eliminates single-power-type constraints; integrate with AC-powered DVRs and power distribution panels or isolated 12V DC supplies in network camera deployments without additional conversion.
- IP66 Weatherproof Certification: Field deployments confirm reliable performance in rain and coastal salt-spray environments; no supplementary junction boxes or silicone sealing required.
Deployment Considerations:
- Mount the IR60 coaxially (within 6–12 inches) of the camera lens to avoid illumination parallax at distance; offset mounting results in dark zones or hotspots in the camera's field of view.
- Verify that the connected camera sensor responds to 850nm–940nm infrared; legacy analog PAL/NTSC cameras and some IP cameras with aggressive IR-cut filter control may not accept external IR supplementation without sensor tuning.
- For perimeter runs exceeding 300 feet, cascade two IR60 units on parallel 12V feeds rather than attempting single-unit coverage beyond rated distance.
The IR60 is a straightforward, proven accessory for extending night vision range in long-distance outdoor surveillance. Pair it with confirmed infrared-responsive cameras, verify mounting geometry before field deployment, and validate dual voltage power routing to match your control and distribution infrastructure.
