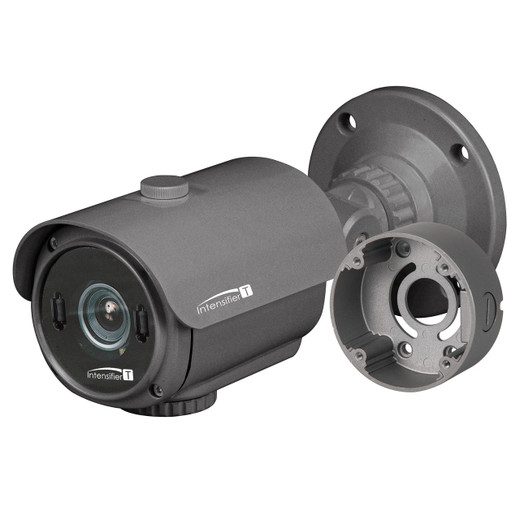

Speco Technologies HTINT702T HD-TVI 1080p Bullet Intensifier T Camera
Overview
The Speco Technologies HTINT702T is an HD-TVI bullet camera designed for outdoor surveillance deployments requiring robust 1080p video capture in variable lighting conditions. This model combines a motorized 5-50mm lens with Intensifier T technology to deliver detailed imaging across a wide field of view. The grey powder-coated housing provides environmental durability for fixed outdoor installations. HD-TVI transmission delivers uncompressed or lightly compressed video over standard coaxial cabling, simplifying integration with hybrid analog-IP environments and reducing infrastructure costs.
When this is the correct choice
The HTINT702T is well-suited for integrators deploying fixed outdoor bullet cameras where motorized zoom capability and low-light performance are priorities. HD-TVI architecture works effectively for organizations transitioning from analog systems or maintaining mixed analog-digital infrastructure. The 5-50mm motorized lens supports variable focal length adjustment for different coverage zones without camera repositioning. Choose this model when your network architecture favors coaxial transmission and you need reliable 1080p resolution in outdoor perimeter, parking lot, or building facade applications.
When to choose a different model
If your facility requires IP-native architecture with ONVIF standards, POE power delivery, or edge analytics, select an IP camera platform. For ultra-low light environments below the Intensifier T specification range, consider thermal or specialized low-light sensors. If higher than 1080p resolution is mandatory, evaluate 4MP or higher HD-TVI models. For indoor-only deployments without environmental stress factors, dome or turret form factors may offer better aesthetics and mounting flexibility.
Optics and field of view
The HTINT702T features a motorized 5-50mm varifocal lens, providing a 10:1 zoom ratio for flexible field-of-view adjustment from wide-angle to telephoto coverage. This motorized design allows remote focus and zoom control during installation and operation, eliminating manual lens adjustment on the camera body. The lens supports continuous zoom positioning across the 5-50mm range, enabling operators to optimize framing for specific surveillance zones. The varifocal design reduces the need for multiple fixed-lens cameras to cover varied distances.
Imaging performance and low light
The camera is equipped with Intensifier T technology, Speco's low-light enhancement system designed to improve image clarity in dim and nighttime conditions. This processing method enhances sensitivity without relying solely on IR illumination, preserving detail and color information when ambient light is limited. The HTINT702T delivers 1080p (1920x1080) resolution across all lighting conditions, supporting 30fps video capture. Intensifier T provides measurable visibility improvement in dusk, dawn, and low-lux urban environments where IR-only solutions may wash out detail or create glare.
Analytics and edge capabilities
This camera operates as a video capture and transmission device without embedded edge analytics. Analytics processing occurs at the DVR, NVR, or VMS system level. HD-TVI architecture transmits raw or minimally compressed video to the head-end system where all motion detection, object tracking, and metadata extraction occurs. This design keeps the camera payload lightweight and focuses processing power at the central recording platform.
Video encoding and streaming
The HTINT702T uses HD-TVI video transmission, which sends 1080p video over standard 75-ohm coaxial cable. HD-TVI avoids real-time compression overhead at the camera, reducing latency and maintaining image fidelity. The system is compatible with HD-TVI DVRs and hybrid recorders that decode the TVI signal. Video quality is preserved across the coaxial run without the bandwidth constraints of traditional analog transmission.
Network and security
As an HD-TVI camera, the HTINT702T does not include network connectivity, IP addressing, or network security protocols. It communicates exclusively over coaxial cabling to an HD-TVI capable recorder or head-end device. This architecture eliminates network-level cybersecurity considerations for the camera itself, with security managed at the recorder and facility network level.
Environmental and durability ratings
The HTINT702T is housed in a grey powder-coated metal bullet enclosure designed for outdoor mounting. The housing provides weather sealing appropriate for exterior wall, eave, or pole mounting in temperate to cold climates. The motorized lens mechanism is sealed to prevent moisture and dust ingress. Confirm IP rating specifications with your Speco distributor for specific environmental certifications applicable to your deployment region.
Power and installation notes
The HTINT702T operates on standard 12VDC power, typically supplied through the coaxial cable via a power injector or through dedicated 2-conductor power lines run alongside the coax. Installers should run rated, UV-resistant coaxial cable and maintain proper grounding at the head-end to ensure signal integrity and equipment protection. Motorized lens control requires connection to the DVR or controller's pan-tilt-zoom (PTZ) control circuits. Wall or pole mounting hardware is typically purchased separately based on installation environment.
What is included
Contact us for package details.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluated the HTINT702T during a mixed-environment deployment for a regional property management group operating legacy coaxial plant alongside new IP infrastructure. The motorized 5-50mm lens proved valuable for eliminating manual focus trips to the camera, and Intensifier T delivered visible detail in their nighttime parking lot and common area monitoring without requiring separate IR illumination. The HD-TVI format performed well over longer cable runs where IP bandwidth would have been constrained.
Technical Highlights:
- Motorized zoom: 5-50mm varifocal lens eliminates fixed-focal-length tradeoffs and allows remote focus adjustment from the DVR control panel
- Low-light capability: Intensifier T processing enhances visibility in dusk, dawn, and dim urban conditions without relying solely on IR
- Coaxial simplicity: HD-TVI transmission over standard coax reduces cabling complexity in facilities with existing analog runs
Deployment Considerations:
- Confirm your DVR or recorder supports HD-TVI input and motorized lens control before purchase; hybrid recorders are common, but verify compatibility with your specific model
- Plan power delivery carefully—12VDC injectors can be mounted at the head-end or in weatherproof boxes near outdoor runs; run separate power conductors if coax-delivered power proves unreliable
- Position cameras to minimize direct infrared wash during evening; Intensifier T is most effective when supplemented with modest ambient or auxiliary lighting rather than overwhelming IR
The HTINT702T is a solid choice for integrators who need a reliable, motorized outdoor bullet camera without committing to full IP infrastructure. It fits naturally into hybrid surveillance architectures and delivers consistent 1080p imagery in mixed lighting. Installer familiarity with coaxial troubleshooting and HD-TVI decoder setup is important for smooth deployment.
