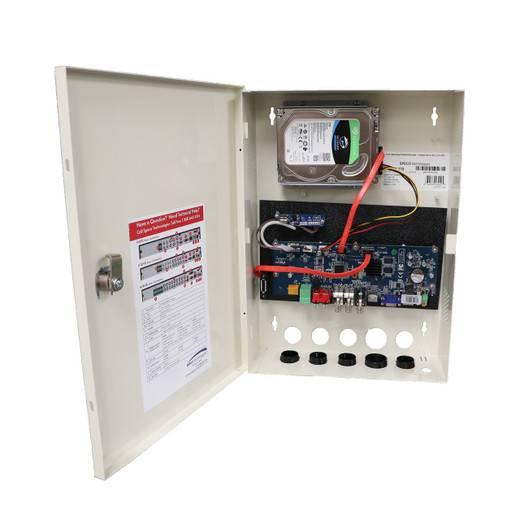

Speco Technologies H6WHRL8TB 6-Channel Wall Mount Hybrid Recorder
Overview
The H6WHRL8TB is a wall-mounted 6-channel hybrid recorder designed for mixed analog and IP camera environments. It accepts 4 TVI (analog) channels and 2 dedicated IP channels, allowing you to run legacy TVI infrastructure alongside modern IP cameras without wholesale system replacement. The 8TB internal storage supports continuous or motion-triggered recording across all channels — meaningful on retail and distributed surveillance sites where centralized recording reduces edge storage dependencies and simplifies retention policy management.
Compatibility
The H6WHRL8TB supports TVI cameras on its four hybrid inputs and standard IP cameras on all six recording channels. It integrates with common network video recorders workflows and standard VMS platforms that accept ONVIF-compliant sources. The wall-mount form factor fits institutional, retail, and small-to-medium distributed surveillance deployments where space efficiency and centralized recording are priorities — avoid this model if your environment demands rack-mount consolidation or requires standalone IP-only operation without TVI fallback.
Installation Notes
Wall mounting requires standard bracket fastening to vertical surfaces capable of supporting the unit's weight. Ensure adequate ventilation clearance around the unit to prevent thermal stress during continuous recording. The device integrates into standard IP security systems using Ethernet for IP camera feeds and 75-ohm coaxial cabling for TVI inputs. Power requirements and network bandwidth scale with channel count and recording frame rate — verify your switch capacity and UPS provisioning before deployment.
