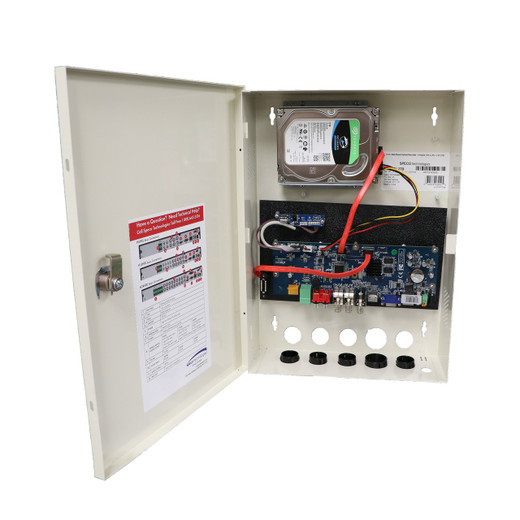

Speco Technologies H6WHRL4TB 6-Channel Wall Mount Hybrid Recorder
Overview
The H6WHRL4TB is a 6-channel wall-mounted hybrid recorder engineered to handle mixed-architecture deployments where TVI cameras coexist with IP cameras. Four channels accept TVI (analog HD over coax) or IP selectable per channel, plus two dedicated IP channels, totaling six simultaneous input paths. Pre-configured with 4TB internal storage, it delivers practical continuous or event-triggered recording capacity for small-to-mid-range installations. Wall-mount form factor fits compact control rooms, retail back-office spaces, or network closets without requiring a standard rack enclosure.
Compatibility
The H6WHRL4TB works in hybrid environments where legacy TVI HD cameras operate alongside modern IP cameras—no rip-and-replace required. Channel assignment is flexible: assign any of the four hybrid inputs to TVI or IP independently, allowing gradual migration from analog to IP without hardware swaps. Supports ONVIF-compliant IP cameras, ensuring broad interoperability across vendor lines. Suitable for integrators standardizing existing coax-based systems or adding IP cameras to established TVI deployments.
Compression and Storage
Records in H.265, H.264, or MJPEG. H.265 compression reduces storage and bandwidth consumption by approximately 40% compared to H.264—meaningful when run continuous across all six channels on a 4TB drive. The 4TB capacity handles typical 24/7 multi-channel workflows; retention depends on resolution, frame rate, and compression chosen. Supports remote network setup and configuration for off-site provisioning.
Power and Environmental
Indoor deployment environment. Check facility climate control and ensure adequate ventilation around the wall-mounted enclosure. No external power requirements listed in available evidence—confirm power specifications with the manufacturer before final installation.
Support and Warranty
Backed by a 5-year manufacturer warranty and supported by Speco's SecureGuard® program. Technical support available 8:30 AM–5:30 PM EST for configuration and integration questions.
