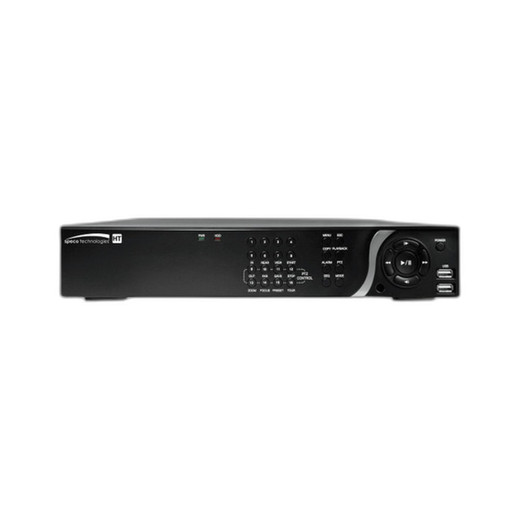

Speco Technologies D8HT9TB 8-Channel Hybrid DVR with 9TB Storage
Overview
The Speco Technologies D8HT9TB is an 8-channel hybrid digital video recorder engineered for integrators and IT managers requiring flexible analog and IP camera support in a single platform. This system captures 1080p resolution video across TVI (Transport Video Interface) and IP-based camera inputs, making it suitable for both greenfield deployments and mixed-technology system upgrades. With 9TB of onboard storage capacity, the D8HT9TB provides extended recording retention without external storage dependencies, reducing infrastructure complexity in cost-conscious installations.
Key Features
- 8-Channel Input Configuration: Accepts both TVI analog and IP network video streams on a unified platform, eliminating the need for separate DVR and NVR hardware in hybrid environments
- 1080p Video Resolution: Records and displays full 1080p resolution video from connected cameras, providing sufficient detail for forensic review and real-time monitoring in retail, office, and light industrial applications
- 9TB Built-in Storage: Integrated 9TB hard drive capacity supports extended recording periods without requiring network-attached storage (NAS) or cloud subscriptions, reducing operational overhead and latency concerns
- TVI and IP Compatibility: Native support for both Transport Video Interface analog cameras and standard IP/ONVIF network cameras enables gradual technology migration and integration with existing infrastructure
- Compact Standalone Form Factor: Desktop or rack-mountable design allows flexible placement in server rooms, security operations centers, or distributed network closets without requiring extensive cable runs or environmental modifications
- Real-time and Scheduled Recording: Configurable recording modes support continuous, event-triggered, and scheduled capture, optimizing storage utilization and enabling compliance with retention policies
Integration and Deployment
The D8HT9TB integrates directly into existing surveillance infrastructure without requiring specialized middleware or proprietary encoders. TVI channels connect via standard BNC coaxial connectors, while IP inputs use Ethernet connectivity. This hybrid architecture is particularly valuable in facilities transitioning from analog CCTV systems, as integrators can maintain existing TVI camera investments while gradually adding IP-based solutions. The system's unified interface simplifies operator training and reduces monitoring complexity compared to managing separate digital and network recording platforms.
The 9TB storage capacity is sufficiently large for most small- to medium-sized deployments. Frame rate and compression settings are operator-configurable, allowing system administrators to balance storage efficiency against investigative detail requirements. Motion detection and alarm-triggered recording modes further extend retention periods by reducing continuous storage consumption.
Technical Operating Parameters
The D8HT9TB operates as a self-contained recording appliance, requiring only power and network connectivity for IP camera feeds. No external software licenses or recurring cloud service fees are required for basic recording and playback functions. The system supports remote viewing via network connection, enabling authorized personnel to access live and recorded video from mobile devices or workstations without installing proprietary client software on every operator terminal.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Speco D8HT9TB during several mixed-technology deployments where clients needed to preserve analog TVI infrastructure while adding newer IP cameras. The D8HT9TB's hybrid approach is pragmatic for this scenario—you're not forced to rip and replace working analog systems, and the 9TB local storage eliminates dependency on network bandwidth for archival video.
Technical Highlights:
- Hybrid Input Architecture: Supporting both TVI and IP on the same DVR simplifies cabling and reduces equipment footprint, particularly valuable in retrofit environments where wall penetrations and conduit are already constrained
- 9TB Integrated Storage: Onboard hard drive capacity avoids separate NAS procurement and the operational complexity of network storage configuration, especially important in sites with limited IT support
Deployment Considerations:
- Verify TVI camera compatibility before ordering—ensure your existing analog cameras are Transport Video Interface (not older CVBS composite video) to guarantee signal integrity with the D8HT9TB
- Plan IP network capacity if you intend to use all 8 channels with IP cameras; multiple 1080p IP streams can consume 4–6 Mbps per channel depending on frame rate and compression settings
The D8HT9TB is a solid choice for integrators supporting budget-conscious accounts or facilities with mixed analog and IP environments. Its straightforward hybrid design reduces commissioning time and operator training burden compared to managing separate DVR and NVR platforms.
