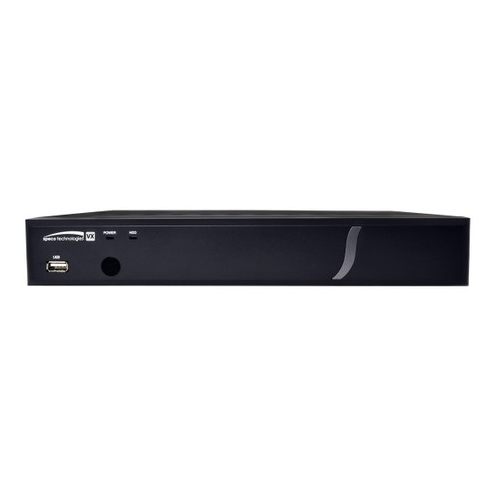

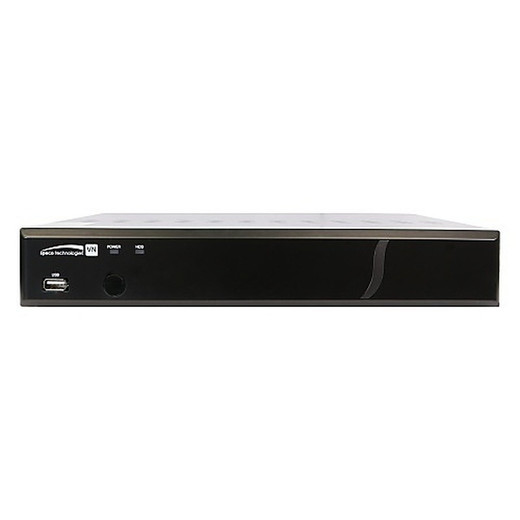

Speco Technologies D4VX2TB 4-Channel TVI DVR
Overview
The Speco Technologies D4VX2TB is a 4-channel TVI (Transport Video Interface) DVR engineered for small to medium security deployments requiring local recording and playback. This unit ships with 2TB of integrated hard drive storage, providing extended on-site retention for continuous or scheduled recording across four analog video inputs. Built on proven TVI infrastructure, the D4VX2TB integrates seamlessly into hybrid analog surveillance systems and serves as a reliable foundation for organizations transitioning legacy camera networks or maintaining cost-effective analog architectures.
Key Features
- 4-Channel TVI Input: Supports four TVI cameras, enabling simultaneous capture from multiple vantage points with a single recording appliance
- Higher MP Resolution Capability: Records higher megapixel TVI video streams, delivering improved image clarity and detail retention compared to standard definition analog DVRs
- 2TB Integrated Storage: Factory-installed 2TB hard drive provides substantial on-site retention; storage capacity supports extended recording windows for forensic review and compliance archiving
- Compact Desktop Form Factor: Space-efficient chassis suitable for control rooms, server closets, or distributed edge deployment without requiring dedicated rack infrastructure
- Local Playback and Search: Native DVR interface enables rapid footage retrieval, timeline scrubbing, and export without dependency on external software or network connectivity
- Analog Video Output: HDMI and composite output options facilitate real-time monitoring on standard displays and legacy equipment integration
Integration and Deployment
The D4VX2TB operates as a standalone recording appliance and does not require network connectivity for core operation, making it suitable for air-gapped or offline security environments. The unit accepts standard TVI camera feeds via BNC connectors and outputs video via HDMI and RCA ports, simplifying physical installation in existing analog infrastructures. System configuration and management occur through the local front panel interface or connected display, enabling rapid commissioning without IT overhead.
Installers should verify camera compatibility with TVI standard (720p, 1080p, or higher MP formats) and confirm that all four input channels will be in use or are intentionally reserved for future expansion. The Speco D4VX2TB is designed for indoor stationary mounting and does not include weatherproofing for outdoor direct exposure; placement in protected enclosures is recommended for perimeter installations.
Technical Deployment Notes
The 2TB storage capacity should be calculated against recording resolution, frame rate, and retention policy. At 1080p or higher MP resolution, continuous 24/7 recording across four channels typically provides 7–14 days of retention depending on video complexity and compression efficiency. Integrators should factor hard drive lifecycle planning into service contracts, as the unit relies on a single mechanical drive; redundancy solutions or periodic backups are recommended for mission-critical footage. Power requirements and thermal dissipation are modest for a four-channel platform, but adequate ventilation and UPS protection are advisable in sensitive environments.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Speco D4VX2TB represents a straightforward four-channel TVI recording solution for integrators working within analog or hybrid camera ecosystems. Its 2TB onboard storage and higher MP compatibility position it well for SMB and enterprise branch office deployments where local recording and offline operation are operational requirements.
Technical Highlights:
- TVI Input Architecture: The D4VX2TB accepts four TVI video streams, preserving higher megapixel resolution that standard-definition analog DVRs cannot capture. This is particularly valuable when upgrading existing installations with higher MP analog cameras without replacing the entire backbone.
- Integrated 2TB Storage: Factory-installed HDD eliminates the need for external SAN or NAS configuration, reducing deployment complexity and supporting air-gapped or isolated network scenarios.
Deployment Considerations:
- Confirm all connected TVI cameras operate at compatible resolution and frame rate; mixed analog and TVI inputs are not supported on a single channel.
- Plan storage lifecycle and backup strategy early; single-drive architecture means periodic data migration is necessary for long-term retention or compliance archiving.
- Position the unit indoors in a controlled environment with adequate cooling; do not expose to temperature extremes or direct moisture.
For organizations committed to analog infrastructure or operating in environments where network DVRs are impractical, the D4VX2TB delivers reliable, uncomplicated recording. Pair it with a documented retention schedule and periodic backup protocol to ensure footage integrity across your security timeline.
