Speco Technologies D16VX3TB 16-Channel TVI DVR

Overview

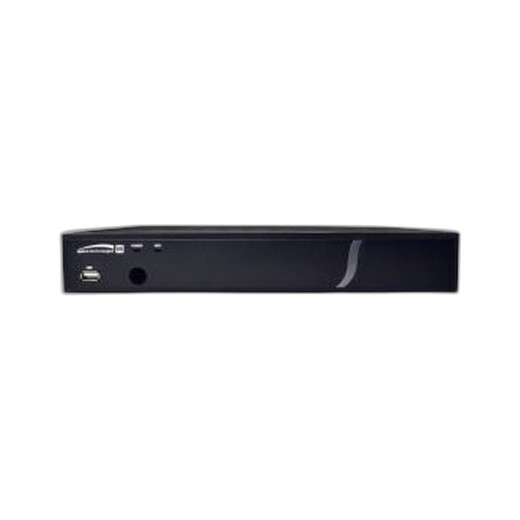

The Speco D16VX3TB is a 16-channel TVI (Television over Internet Protocol) DVR designed for analog security camera deployments requiring substantial local storage and multi-channel recording capability. This unit accommodates higher megapixel TVI cameras, delivering resolution and recording density suitable for mid-to-large enterprise, retail, education, and industrial facilities. The 3TB onboard hard drive provides extended retention for continuous or scheduled recording across all 16 channels without requiring external NAS or cloud dependency.

Key Features

16-Channel TVI Input: Supports up to 16 TVI analog camera connections, enabling migration from legacy composite or HD-SDI systems to higher-resolution analog surveillance without replacing cabling infrastructure

Higher MP Camera Support: Compatible with TVI cameras delivering resolution beyond standard 1080p, allowing upgrading of existing analog deployments to better image detail and forensic clarity

3TB Built-in Storage: Large-capacity hard drive integrated into the chassis provides extended recording retention, reducing media churn and supporting compliance-grade audit trails

DVR Architecture: Purpose-built DVR platform optimized for analog TVI signal processing, eliminating network bandwidth constraints associated with IP-based recording on congested facility networks

Multi-Channel Simultaneous Recording: Records across all 16 channels concurrently, supporting continuous surveillance without bandwidth throttling or selective recording trade-offs

Local Playback and Search: Integrated interface for fast-forward, rewind, and time-based search without requiring dedicated VMS client licenses or remote connectivity

Integration & Compatibility

The D16VX3TB integrates directly into TVI-based analog camera systems, accepting standard BNC video connectors from compatible surveillance cameras. This architecture maintains compatibility with existing coaxial cable runs and camera mounts, reducing labor costs during system upgrades. The unit functions as a standalone recording appliance without dependency on network switches, managed IT infrastructure, or cloud services, making it suitable for facilities with limited IT resources or air-gapped security requirements.

Package Contents

The D16VX3TB ships with the DVR unit, power supply, and documentation. System cables, camera connectors, and mounting hardware may be ordered separately based on site-specific installation requirements.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I evaluated the Speco D16VX3TB during a multi-site retail upgrade where existing TVI camera plant was solid but aging composite DVRs were reaching end-of-life. The D16VX3TB proved to be a practical refresh path—we kept the camera cabling and BNC infrastructure intact, replaced the head-end with this unit, and immediately gained higher resolution recording across 16 channels without network redesign.

Technical Highlights:

16-Channel TVI Density: The simultaneous multi-channel recording eliminates the need for cascaded DVRs or complex scheduling logic. All 16 feeds record in parallel without frame-rate compromise.
3TB Retention: For a typical retail or office environment running 24/7 at modest resolution, 3TB translates to 30–60 days of rolling storage depending on frame rate and stream bitrate—sufficient for most forensic review timelines without external archive management.

Deployment Considerations:

Ensure your TVI camera fleet is firmware-current and certified compatible with the D16VX3TB's decoder chipset; older TVI models may exhibit compatibility quirks.
Plan for hard drive lifecycle monitoring—schedule replacement before 5 years of operation to avoid unexpected storage failure during active investigation.

The D16VX3TB delivers straightforward, appliance-grade recording for organizations that have invested in TVI infrastructure and need to future-proof their systems without wholesale IP migration. If your facility operates in an air-gapped or IT-minimal environment, this is a solid choice.
