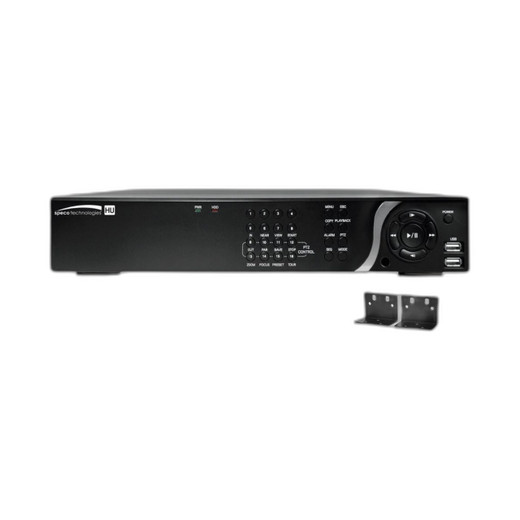

Speco Technologies D16HU2TB 16-Channel 4K IP/TVI Hybrid Recorder

Overview

The Speco Technologies D16HU2TB is a 16-channel hybrid video recorder engineered for mid-to-large security deployments requiring flexibility in camera technology selection. This TAA-compliant unit simultaneously processes 4K IP streams and analog TVI feeds through a unified recording platform, eliminating the need for separate NVR and DVR infrastructure. The D16HU2TB incorporates 2TB of internal storage capacity and delivers the resolution scaling, codec efficiency, and channel density required for commercial integration projects, retail monitoring, access control integration, and enterprise facility surveillance.

Key Features

• 16-Channel Hybrid Architecture: Records both IP and TVI cameras on a single platform, allowing gradual technology migration or mixed camera deployments without equipment replacement
• 4K Resolution Support: Captures and stores 4K video from IP cameras, providing ultra-high-definition detail for identification and forensic analysis
• 2TB Internal Storage: Provides extended retention periods for continuous recording across multiple channels; scalable through additional storage solutions
• IP/TVI Input Flexibility: Accepts 16 channels of either IP or TVI input, or any combination, enabling infrastructure optimization around existing camera inventories
• TAA Compliance: Meets Buy American Act requirements for federal, state, and municipal procurement, qualifying for government and protected-market contracts
• Multi-Protocol Support: Processes standard surveillance protocols including H.264 and H.265 compression for efficient storage utilization
• Integration Ready: ONVIF compatibility and standard APIs support integration with third-party VMS platforms, access control systems, and analytics layers
• Dual Codec Efficiency: Supports both legacy H.264 and modern H.265 streams, optimizing bandwidth and storage across heterogeneous camera ecosystems
• Commercial-Grade Reliability: Built for 24/7 continuous recording in controlled indoor environments typical of data centers, offices, retail, and facility management
• Remote Monitoring Capability: Network-based access enables remote playback, live viewing, and configuration from authorized workstations and mobile clients

Integration & Compatibility

The D16HU2TB operates as a unified backend for hybrid surveillance networks. Its 16-channel design scales efficiently in deployments of 16–32 cameras (using one or two units) without requiring parallel NVR/DVR deployments. ONVIF protocol support ensures compatibility with industry-standard VMS platforms used by integrators, enabling centralized management across multiple recorders. The unit accepts standard PoE-powered IP cameras and analog TVI cameras with RCA connections, simplifying cabling and power infrastructure on mixed-technology sites. Network configuration follows standard IP practices; the recorder connects to existing LAN or dedicated surveillance networks with no proprietary switching or gateway appliances required.

Deployment Considerations

The D16HU2TB is rated for indoor, climate-controlled environments. Install in a secure equipment room, server rack, or locked cabinet with adequate ventilation. The 2TB storage supports approximately 30–90 days of continuous 4K recording (depending on bitrate and codec selection); evaluate retention requirements and plan supplementary storage or archival strategies for long-term evidence preservation. Network bandwidth should be sized to accommodate simultaneous streaming and recording; a managed Ethernet switch with QoS capabilities is recommended for reliable multi-channel operation. The recorder does not include PoE power injection; integrate with separate PoE switches or injectors to power IP cameras. Configure remote access through VPN or firewall rules to maintain security posture; never expose the recorder directly to the internet.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Speco D16HU2TB in several mixed-camera deployments where clients had existing TVI infrastructure alongside new IP camera purchases. The hybrid approach eliminated the complexity of running parallel systems and simplified remote monitoring through a single interface. The TAA compliance flag is critical for integrators pursuing federal or state contracts—verify this applies to your jurisdiction's procurement rules.

Technical Highlights:

• 16-Channel Scalability: The D16HU2TB handles 16 channels of either IP or TVI, or both, making it suitable for small-to-medium facilities and as a building block for larger campuses (daisy-chain multiple units through network or storage aggregation)
• 4K Recording Capability: Native 4K support from IP cameras provides superior detail retention compared to 1080p or 2MP legacy systems; essential for retail loss prevention, access control verification, and facial recognition preprocessing
• Storage Density: 2TB on-board storage is sufficient for 16-channel continuous recording at mixed resolutions (4K IP + 1080p TVI) for 30–60 days; plan for NAS or cloud archival if regulatory retention exceeds 90 days
• Codec Flexibility: H.265 support reduces storage footprint by 40–50% compared to H.264, extending retention windows without additional hardware

Deployment Considerations:

• Install in a secure, climate-controlled rack or cabinet—this is a backend appliance, not edge-deployable. Plan for UPS protection and ensure adequate exhaust airflow
• Size your network switch for simultaneous 4K streams: a 16-camera mixed deployment can consume 40–80 Mbps aggregate bitrate. Use managed PoE switches with VLAN segmentation to isolate surveillance traffic
• Hybrid systems require careful TVI cable management separate from IP drops. Verify coaxial run lengths (recommend <300 m for analog TVI) and condition before deployment
• TAA status qualifies this recorder for federal procurement; document this in your RFQ and contract with clients pursuing GSA or state purchasing agreements

The D16HU2TB is a practical choice for integrators managing customer migrations from analog to IP-native networks. Its hybrid input flexibility reduces forklift upgrades and supports phased camera replacement strategies. Ensure your post-sale support plan includes remote access configuration and basic VMS training—many customers underestimate the operational learning curve for recorder management.
