Speco Technologies CVCWMINDT Indoor Wall mount for CVC6246 Style

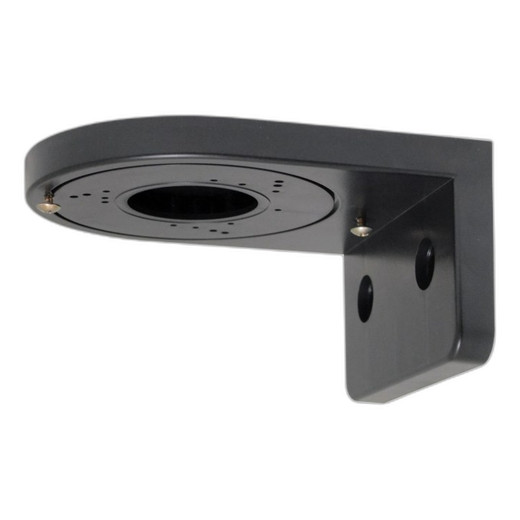

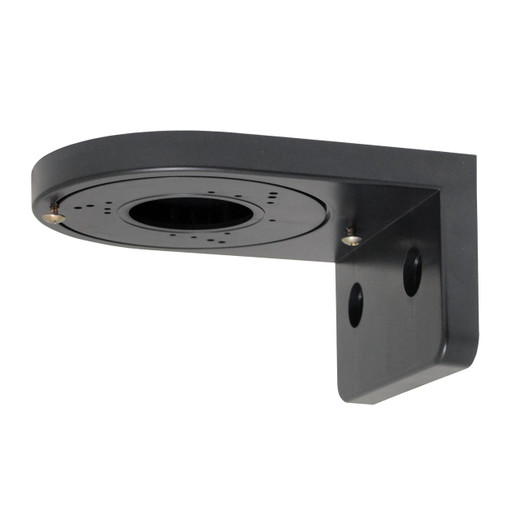

Speco Technologies CVCWMINDT Indoor Wall Mount Bracket

Overview

The CVCWMINDT is a plastic wall-mount bracket designed to secure Speco CVC6246-style camera housings indoors. This accessory positions compact camera enclosures at fixed wall locations — solving the basic mounting requirement for retail, commercial, and institutional surveillance deployments where cameras need clean, integrated placement on finished walls without ceiling or pendant routing.

Compatibility

The CVCWMINDT mounts directly to CVC6246H(W) and CVC6246T(W) camera housings. Confirm your camera housing matches the CVC6246 form factor before ordering; it will not work with different Speco housing architectures or non-Speco camera bodies.

Installation Notes

Wall mounting uses two T4×24L tapping screws — the primary fasteners that anchor the bracket to drywall, masonry, or equivalent indoor wall surfaces. The bracket itself attaches to the camera base via T4×12L tapping screws. Two decorative caps (included) cover the wall-facing screw heads for a finished appearance. Ensure the wall can support the combined weight of the bracket and mounted camera; use wall anchors appropriate to your substrate if stud placement is unavailable. No special tools beyond a Phillips or appropriate screwdriver are required.

What's in the Box

• 1x CVCWMINDT plastic wall-mount bracket
• 2x tapping screws (T4×12L) for camera base assembly
• 2x tapping screws (T3×8L) for bracket cover (if needed)
• 2x mounting screws (T4×24L) for wall attachment
• 2x decorative caps for wall screw cover
