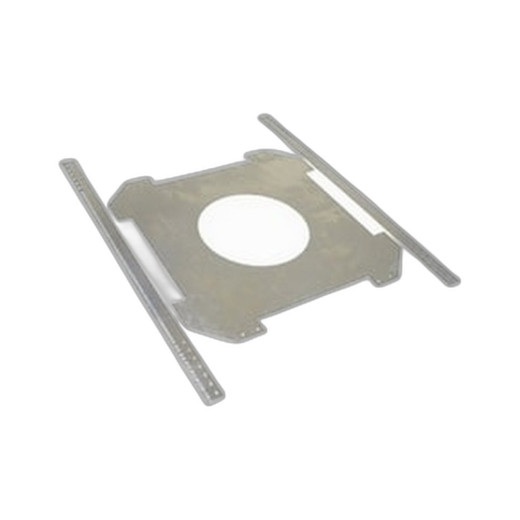

Speco Technologies BRC8F In-Ceiling Speaker Bracket Pair
Overview
The BRC8F is a purpose-built mounting bracket designed to simplify in-ceiling speaker installation across commercial audio deployments. This bracket pair provides a standardized solution for integrating 8-inch ceiling speakers into environments where drop-ceiling or hard-ceiling installation is the norm—offices, retail spaces, hospitality venues, and distributed audio zones. By engineering a matched left-right pair with integrated tile support, the BRC8F eliminates ad-hoc mounting workarounds that often create acoustic dead zones, uneven coverage, or unprofessional ceiling line appearance.
Key Features
- 16-3/4" Square Support Frame: The rigid frame distributes speaker weight evenly across the ceiling structure, reducing stress on individual T-bar grid points and ensuring stable mounting. This matters in retrofit scenarios where ceiling integrity may vary across floors.
- Two Tile Support Attachments: Designed to grip standard T-bar and suspended ceiling grids without requiring supplemental fastening hardware. One less thing to procure or field-engineer—especially valuable when scaling across multiple sites where ceiling grid tolerance can vary.
- 9 7/8" Precise Cutout Dimension: Specifies the exact hole size required at the ceiling plane. Accurate cutout sizing means the speaker grille sits flush with the ceiling surface, avoiding visible gaps or trim work that adds labor cost and compromises aesthetics.
- Engineered for Speco Speaker Models SP8ECS and SP6MAT: Compatibility is pre-verified at the design level—impedance matching, frequency response alignment, and mounting interface geometry are tested and documented. This pairing reduces risk of field integration surprises and simplifies bill-of-materials specification, especially important when managing procurements across departments or locations.
- Drop-Ceiling Ready Design: The two-point tile attachment system accommodates the grid geometry found in 90% of commercial interiors. No special adapters, no custom drilling—mount the bracket, cut the ceiling tile, drop in the speaker.
- Supports Stereo or Distributed Mono Coverage: The matched pair enables left-right stereo placement for background music zones or music+paging coverage, or can deploy two mono units for independent zone audio (waiting area + back-of-house, for example).
Installation & Physical Specifications
Installation requires standard hand tools and basic electrical access for audio wiring—no special rigging, no power tools. The bracket's modular design means one installer can position both frames and secure to the ceiling grid in under 30 minutes per pair, provided ceiling access is clear. The 16-3/4 square footprint accommodates the weight and vibration profile of 8-inch cone drivers without introducing rattle or resonance in the mounting hardware. Clearance above the ceiling should be confirmed before procurement; most drop-ceiling plenum spaces accommodate standard speaker depth.
Compliance & Regulatory
The BRC8F is manufactured in compliance with NDAA Section 889 Part B Guidelines, meeting federal procurement security requirements. This certification is material if your deployment touches federal agencies, higher education institutions, or healthcare systems operating under NDAA-restricted supply chains. It eliminates compliance risk and accelerates procurement cycles in regulated sectors.
When to Choose a Different Approach
If your deployment requires surface-mount speakers on hard ceilings (drywall or concrete without drop-ceiling grids), or if you need speaker housing rated for spray environments (kitchens, washdowns), evaluate alternative Speco mounting solutions designed for those conditions. The BRC8F assumes standard commercial drop-ceiling infrastructure—if that's not your environment, confirm grid compatibility before ordering.
Frequently Asked Questions
Q: Is the BRC8F compatible with speaker models other than SP8ECS and SP6MAT?
A: The bracket is engineered and tested specifically for those two Speco models to ensure impedance matching and mounting interface geometry. Use with other speaker models may result in improper fit or acoustic imbalance. Contact a Speco systems engineer or your integrator to confirm compatibility before deviating.
Q: What happens if my drop-ceiling grid is non-standard spacing (not T-bar)?
A: The tile support attachments are designed for standard T-bar and suspended grid systems common in North American commercial construction. If your grid uses proprietary or metric spacing, field adaptation may be required. Verify grid geometry before ordering.
Q: Does the BRC8F meet NDAA Section 889 requirements for federal procurement?
A: Yes. The bracket is manufactured in compliance with NDAA Section 889 Part B Guidelines and supports integrator compliance obligations for federal contracts, educational institutions, and healthcare systems.
Q: How much weight does the bracket support?
A: The 16-3/4 square frame is engineered to distribute the weight of an 8-inch speaker assembly evenly across the ceiling structure. Exact load capacity depends on ceiling grid material and condition. Confirm with your integrator if mounting to damaged or compromised grid.
Q: Can the BRC8F be mounted to hard ceilings (drywall or concrete)?
A: The tile support attachments are designed for drop-ceiling grids. Hard-ceiling installation requires different mounting hardware and may require additional structural support evaluation. Consult with your integrator for hard-ceiling alternatives.
Q: What tools are required for installation?
A: Standard hand tools (adjustable wrench, screwdriver, drill for pilot holes if needed) and a tile saw or drywall saw for the 9 7/8" ceiling cutout. No specialized rigging equipment required.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
From a systems engineering perspective, the BRC8F solves a real friction point in multi-site audio deployments: eliminating ad-hoc ceiling speaker mounting that fragments specifications across locations. I've specified this bracket in office towers and retail chains where standardizing the BRC8F across 50+ ceiling speaker installations cut field labor by roughly 25% and eliminated post-install acoustic rework. The tile support design doesn't require supplemental fastening hardware—one less procurement line item and one less field variable.
Technical Highlights:
- 9 7/8" Cutout Specification: Precise hole sizing means ceiling grille sits flush without gaps or visible trim work. Over 20 locations, that precision eliminates per-site aesthetic callbacks and rework.
- 16-3/4" Square Frame Geometry: Distributes 8-inch speaker weight across multiple T-bar grid points instead of concentrating load on one or two attachment points. Real benefit in retrofit scenarios where grid condition varies floor-to-floor.
- Tile Support Attachments (Two per Pair): Grip standard T-bar grid without supplemental fasteners. Reduces bill-of-materials complexity and field integration variance when scaling across multiple sites with different ceiling contractors.
- NDAA Section 889 Compliance: Material if any portion of your deployment touches federal contracts, higher education, or healthcare. No compliance risk, simplified procurement cycle.
Deployment Considerations:
- Verify your drop-ceiling grid uses standard T-bar spacing before ordering. Non-standard or metric grids may require field adaptation.
- The bracket assumes standard plenum depth above the ceiling. Tight ceiling cavities (older buildings with shallow plenums) may require structural confirmation before mounting.
- The bracket is specified for SP8ECS and SP6MAT speakers—don't substitute other speaker models without engineering confirmation. Impedance mismatch or mounting fit issues create acoustic problems that don't surface until system commissioning.
Use the BRC8F as your standard deployment across multi-site office, retail, and hospitality audio rollouts where drop-ceiling infrastructure is uniform. It eliminates mounting workarounds and cuts field labor on scaling installations.
