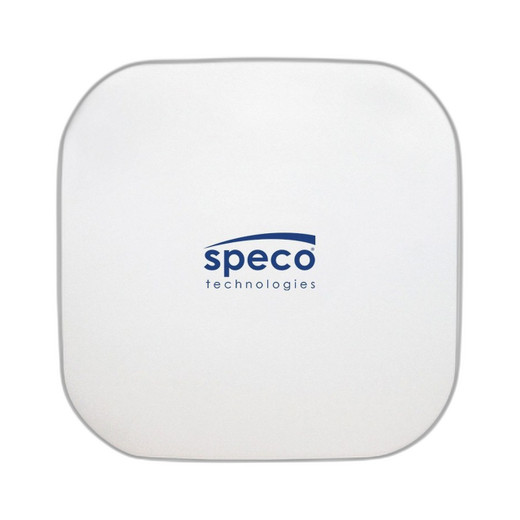

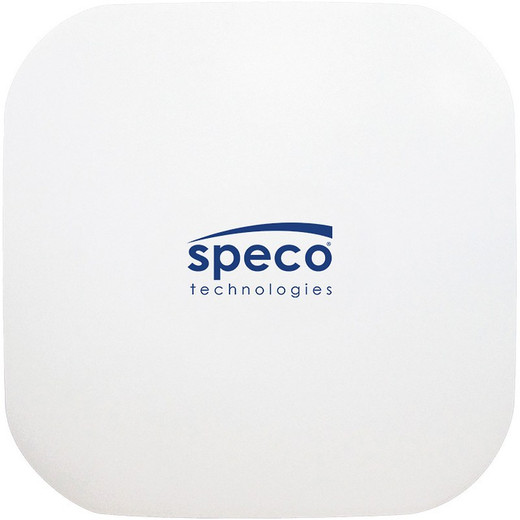

Speco Technologies AP2PLR 5.8 GHz Wireless Point-to-Point Access Point

Overview

The Speco Technologies AP2PLR is a 5.8 GHz wireless point-to-point access point designed for long-range connectivity in security and networked systems. Supporting IEEE 802.11a/n/ac protocols, the AP2PLR delivers wireless speeds up to 867 Mbps and maintains reliable links up to 1.5 miles under ideal conditions. With DIP switch configuration for simplified deployment and PoE 24V power delivery, this unit is engineered for integrators and IT managers who require straightforward installation without complex software configuration.

Key Features

• DIP Switch Configuration: Physical DIP switch settings eliminate complex web-based setup, enabling rapid field deployment and reducing commissioning time.
• High-Speed Wireless Throughput: Supports up to 867 Mbps transmission across 802.11ac, 802.11n, and 802.11a standards, ensuring adequate bandwidth for video surveillance, access control, and IP audio feeds over wireless links.
• PoE 24V Power Supply: Operates on single PoE 24V 1A input, simplifying power delivery and eliminating need for separate AC mains at remote mount locations.
• Dual Gigabit Ethernet Ports: Two 10/100/1000 Mbps LAN ports enable flexible network bridging and device chaining in point-to-point or point-to-multipoint architectures.
• Extended Range Performance: Excellent transmitting power and receiving sensitivity achieve coverage up to 1.5 miles in ideal conditions, suitable for campus perimeter links, remote gate access, or building-to-building bridging.
• IP65-Rated Enclosure: Full IP65 shell protection against rain, dust, and direct sunlight ensures reliable operation in outdoor mounted configurations with wall-mount and pole-mount options.
• Compact Form Factor: Dimensions of 8.07" × 8.07" × 5.21" and weight of 1.1 lbs facilitate installation on existing poles, wall surfaces, or mast structures without reinforcement.
• Wide Operating Temperature Range: Functions from −22°F to 140°F (−30°C to 60°C) and stores from −58°F to 170°F, supporting deployment in temperate and cold climates.
• Wireless Security Encryption: Supports WEP 64/128-bit, WPA, WPA2, and 802.1x authentication to protect wireless traffic between linked sites.
• Management Interface: SNMP, Telnet, and serial management options allow remote monitoring and configuration via standard network tools and protocols.
• NDAA Compliance: Manufactured in compliance with NDAA Section 889 Part B guidelines, meeting federal procurement requirements for government and critical infrastructure projects.

Integration and Deployment Scenarios

The AP2PLR serves as a wireless backbone for distributed security systems where Ethernet cabling is impractical. Typical applications include:

• Multi-Site Video Distribution: Link remote IP cameras, NVRs, or access control devices across campus or industrial sites without trenching or conduit runs.
• Gate and Perimeter Access Control: Bridge access readers, intercom systems, and badge readers at remote entry points to central management servers.
• Temporary or Mobile Deployments: Support event security, construction site monitoring, or disaster recovery operations where quick wireless links accelerate setup.
• Building-to-Building IP Audio: Carry IP-based audio streams between facilities for emergency notification, public address, or two-way communication systems.

The AP2PLR uses the 5.8 GHz frequency band to minimize interference from crowded 2.4 GHz Wi-Fi environments, providing cleaner signal propagation in areas with dense RF activity.

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I have evaluated the Speco AP2PLR during site surveys for bridging video feeds across large parking facilities and campus perimeters. The DIP configuration approach is a practical advantage—field teams do not require laptop access or knowledge of web interfaces to establish the link, reducing deployment friction and troubleshooting cycles.

Technical Highlights:

• 5.8 GHz Band Selection: Operates in the less-congested 5.8 GHz spectrum, reducing interference from consumer Wi-Fi and improving signal stability compared to 2.4 GHz alternatives in dense RF environments.
• 867 Mbps Throughput: The 802.11ac support enables sufficient bandwidth for simultaneous multi-stream video or redundant data paths without bottlenecking at the wireless link.
• IP65 Outdoor Rating: Full dust and water resistance certified for wall-mount and pole-mount installations exposed to direct weather without additional enclosure cost.

Deployment Considerations:

• 1.5-mile range assumes clear line-of-sight; foliage, structural steel, and dense building materials will reduce effective distance—always conduct RF site surveys before final placement.
• PoE 24V 1A power budget is modest; verify that your PoE injector or switch supplies continuous power without drops during peak demand.
• DIP switches are field-accessible but require physical on-site presence to reconfigure—document settings on installation labels for future reference.
• Dual Gigabit ports allow redundant bridging paths if paired with managed switches that support RSTP or similar spanning-tree protocols.

The AP2PLR is a solid choice for integrators who need an uncomplicated wireless bridge with proven 5.8 GHz performance and straightforward field setup. Its outdoor rating and compact footprint make it suitable for both temporary deployments and permanent infrastructure links in security and IoT networks.
