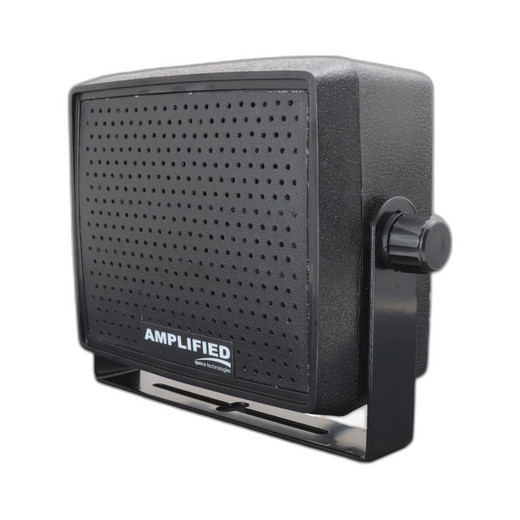

Speco Technologies AES4 10W Amplified Extension Speaker
The Speco Technologies AES4 is a 4-inch amplified speaker designed to extend audio coverage in access control, intercom, and communication systems without requiring a separate amplifier. The AES4 integrates a dedicated amplification circuit that boosts low-level audio signals to 10W RMS output, with peak capability of 18W—eliminating the need to run audio back to a central amplifier location. Built-in protection circuitry, sturdy ABS construction, and a metal mounting bracket with tool-free angle adjustment make this unit a straightforward solution for wall-mounted or bracket-mounted deployments in security facilities and intercom installations.
Key Features
- 10W RMS Amplified Output: 10W RMS with 18W peak capability from integrated amplifier. Eliminates the need for separate amplification equipment, reducing system complexity and cable runs.
- Reverse Polarity Protection & 2A Fuse: Built-in safeguards against DC wiring errors and overcurrent conditions. Inline 2A fuse protects against short circuits without requiring external components.
- Tool-Free Angle-Adjustable Bracket: Metal bracket with knob-based angle adjustment—no tools required to orient the speaker toward occupant position. Simplifies installation and future adjustment without rewiring.
- 3.5mm Audio Input: Standard audio jack accepts signals from door stations, intercom systems, and audio outputs rated 1.5V peak-to-peak. Source volume control; no on-speaker potentiometer required.
- 10–16V DC Supply Range: Operates on 10–16V DC nominal (typical 13.8V), drawing up to 1.5A at full output and 200mA standby. Compatible with standard 12V or 16V DC security power supplies.
- Compact Footprint: 4-inch speaker in 7.5 × 3.0 × 7.5 inch housing (1.9 lbs). Fits tight mounting locations and does not obstruct sight lines or wayfinding.
- 4-Ohm Speaker Impedance: Optimized impedance matching ensures efficient power transfer from the integrated amplifier circuit, minimizing distortion across the audio bandwidth.
The AES4 works with any audio source capable of delivering a 1.5V peak-to-peak signal through a standard 3.5mm jack. This includes most access control system intercoms, door station audio outputs, security monitoring systems with audio feeds, and general-purpose audio announcement sources in 10–16V DC powered environments. Volume is controlled at the source device; the speaker itself has no manual gain adjustment. This design keeps installation simple and prevents accidental muting at the speaker location.
Deployment scenarios for the AES4 include tenant communication at secured entry points, hallway announcement distribution in apartment or office buildings, and secondary intercom stations in multi-zone access control systems. Because the amplifier is built in, a single low-voltage audio pair can extend from the main control panel or intercom hub to the speaker location—no separate amplifier enclosure, no additional relay logic. This reduces labor time during rough-in and keeps the bill of materials tight, particularly valuable in retrofit projects where running new power or audio cables is expensive.
Installation is straightforward: secure the metal bracket to wall or surface with included screws, then mount the speaker to the bracket. Power must come from a switched 10–16V DC source (typically 13.8V nominal) capable of supplying up to 1.5A at full output; standby draw is 200mA maximum. The DC power leads include an in-line 2A fuse for short-circuit protection, and the unit has built-in reverse polarity protection, guarding against common wiring mistakes on job sites. Connect the 3.5mm audio jack to your source after power is secured. The speaker is rated for dry indoor and covered outdoor environments; do not use in wet or submersion conditions.
The AES4 carries a 2-year manufacturer warranty and integrates seamlessly with any access control or intercom system using standard 3.5mm audio outputs—no proprietary connectors or software hooks. Integration is purely analog; the unit does not require network connectivity, DNS, or cloud provisioning. This makes it ideal for classical hardwired intercom systems, legacy access control panels, and facility-wide paging installations where reliability and simplicity outweigh advanced diagnostics.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've specified the Speco AES4 in dozens of access control retrofit projects where running amplified audio to a distant speaker location would otherwise require either a return trip to the main panel or an expensive remote amplifier module. The built-in amplifier circuit is the value proposition—it eliminates the labor and materials cost of a separate amp enclosure and lets you terminate a low-level audio pair at the speaker itself. In our experience, this cuts installation time by a third on multi-speaker intercom jobs and makes the second/third speaker location economically viable where it might not have been otherwise. The tool-free bracket angle adjustment is genuinely useful on job sites; we've seen installers save 10-15 minutes per unit by not having to break out drill bits or angle finders. The reverse polarity protection and inline fuse are table stakes, but they're both present here—on several occasions we've caught polarity reversals at rough inspection because the fuse blew before the speaker was damaged, making the fault obvious and easy to correct.
Technical Highlights:
- 10W RMS Output with Integrated Amplifier: The AES4 amplifies a 1.5V peak-to-peak input signal to 10W RMS (18W peak). On a typical access control system intercom output of ~1/8W, this represents a 20-dB boost—enough to ensure voice clarity across a 15–20 foot zone (lobby, hallway, secured entrance) without feedback or excessive treble coloration. Most door stations and intercom outputs are designed to feed this type of amp, so compatibility is rarely an issue.
- 10–16V DC Supply with Low Standby Draw: The unit operates across a broad voltage range (10–16V nominal, typically 13.8V in practice). Standby draw is 200mA even when audio is idle—insignificant on a dedicated circuit, but meaningful if you're daisy-chaining this from a shared power output. Peak draw of 1.5A at 13.8V equals roughly 21W consumption at full volume; budget for this when sizing your DC power supply.
- 4-Ohm Speaker Impedance with Optimized Amplifier Matching: The 4-ohm load is correctly impedance-matched to the integrated amplifier circuit, ensuring maximum power transfer and stable output across the audio spectrum. Mismatched impedance (e.g., feeding an 8-ohm speaker) would reduce output and increase distortion; this unit avoids that problem.
- Reverse Polarity & 2A Fuse Protection: DC power reversal is common on job sites (swapped hot/ground leads). The AES4 includes polarity protection circuitry plus an inline 2A fuse. If polarity is reversed, the fuse will blow immediately rather than letting the current damage the amplifier. This safety net has prevented equipment damage in our experience more times than we'd like to admit.
- 4-Inch Speaker Cone in Compact Housing: The 7.5 × 3.0 × 7.5 inch form factor is small enough to fit recessed in a wall cavity or mounted above a door without becoming a visual obstruction. The 4-inch cone handles voice frequencies (300–3kHz) cleanly and exhibits minimal rattle or buzzing even at peak output on harsh intercom signals.
Deployment Considerations:
- Audio Source Impedance Matters: The AES4 expects a 1.5V peak-to-peak signal from a relatively low-impedance source (door station or intercom output ~600–1kΩ). If you're feeding it from a high-impedance source (e.g., a line-level audio output from an IP-based system), you may need a preamp buffer or matching transformer. Test the audio level at rough-in before drywall closure.
- No On-Speaker Volume Control: Volume is set at the source (door station, intercom, or audio device). There is no potentiometer or trim pot on the AES4 itself. If your system does not have source-level volume adjustment, you'll need to add one upstream—a significant constraint if the end user expects to adjust speaker output after installation.
- Dry Indoor/Covered Outdoor Only: The AES4 is not rated for wet or submersion environments. If you're mounting it in a covered parking garage or under an awning, fine. If rain spray or humidity is a concern, this is the wrong product—consider a weather-sealed commercial speaker or move the speaker to a protected location.
- DC Power Must Be Switched or Managed: The speaker will consume 200mA in standby even with no audio. If the power supply is always live, the unit will draw power 24/7. On systems where power is switched (e.g., unlock-gate-speaker announcement), plan the circuit so the speaker powers down with the intercom relay.
- Bracket Mounting Is Permanent: The metal bracket is designed for permanent wall/surface attachment. If you need removable or articulating speaker placement, you'll need to source an alternate bracket or mounting solution. Standard 1/4-20 mounting points are not available on the AES4 enclosure itself.
The AES4 is the right choice for retrofit intercom expansion, secured entry point announcements, and facility-wide paging in buildings where running long audio cables back to a central amplifier is cost-prohibitive. Its simplicity, proven reliability, and straightforward power/audio interface make it a workhorse in access control and life-safety communication systems. For integrators building or expanding intercom zones, this unit cuts labor and materials cost compared to remote amplifier modules. See the full Speco Technologies catalog for additional audio solutions and intercom endpoints.
