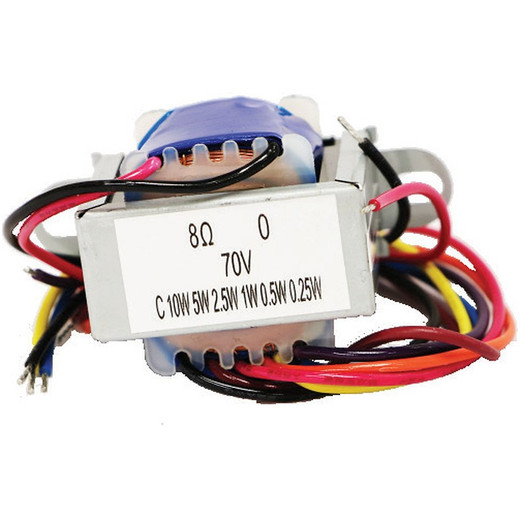

Speco Technologies T7010 10W 70V Line Transformer
Overview
The Speco Technologies T7010 is a 10W 70V line transformer built for professional audio distribution in security and commercial installations. If you're running multiple speakers across a facility—particularly where distances exceed 50 feet—this transformer solves a real problem: low-impedance audio runs (standard speaker wire) lose signal strength over distance and waste amplifier power as heat in the copper. The T7010 converts a standard 4–8 ohm amplifier output to a high-impedance 70V line, which means you can push audio further with minimal loss, feed more speakers from a single amplifier, and avoid the cost and complexity of running massive cable bundles.
Key Features
- 10W Power Handling: Capacity to distribute up to 10 watts across multiple 70V speakers. This is enough to cover typical commercial paging or background music across a medium-to-large facility—most individual 70V speakers draw 1W, 2W, 4W, or 6W, so you can add speakers until you hit the 10W ceiling without straining the amplifier.
- 70V Line Configuration: Dramatically reduces copper loss compared to low-impedance speaker runs, enabling cable runs of 100+ feet without noticeable high-frequency rolloff or signal degradation. This is why 70V is standard in commercial audio, not an option.
- Impedance Matching: Steps down the transformer's 70V secondary to the speaker's rated impedance (typically 2–8 ohms on the back end). This means proper power transfer and no impedance mismatch reflections that degrade sound quality.
- Compact Form Factor: Mounts in walls, above drop ceilings, or inside equipment racks without hogging space. Small enough to hide, robust enough for 24/7 operation in security and paging systems.
- Professional-Grade Construction: Built for institutional deployments—schools, warehouses, hospitals, retail chains, manufacturing floors. Not consumer-grade; designed to tolerate environmental stress and repeated use.
- Simple Wiring: Standard 70V connectors and speaker terminals. No special tools, no firmware, no configuration. Integrates directly into any commercial amplifier output or paging system with 70V distribution.
Integration & Compatibility
The T7010 connects between a commercial or institutional amplifier (any 70V-rated amp output) and your speaker array. Common deployments include:
- Emergency Notification & Paging: Pair it with a paging control system or intercom. The transformer handles the impedance step-down so the paging amp can feed dozens of ceiling or wall speakers without overload.
- Background Music Distribution: Connect a single audio source (tuner, media player, or security control panel audio output) to an amplifier, then use the T7010 to distribute to multiple zones or coverage areas.
- Multi-Zone Audio in Access Control: If your access control or video management system includes audio alerting, the T7010 enables you to drive distributed speakers across lobbies, hallways, or loading docks without separate audio amplification hardware.
Installation best practice: calculate total speaker wattage before purchase. If you have four 2W speakers and two 1W speakers, that's 10W total—you're at capacity. If you exceed 10W, the transformer runs hot and may thermal-limit; pick a higher-wattage transformer from the Speco Technologies catalog if your load is heavier. Mount the transformer vertically or at an angle with ventilation clearance; horizontal mounting can trap heat. Keep it away from moisture and direct sunlight, though standard commercial enclosures (electrical boxes, wall cavities above drop ceilings) are fine.
When to Choose a Different Model
If your total speaker load exceeds 10W, look for a higher-wattage 70V transformer in the same product family—Speco and other manufacturers offer 25W, 50W, and larger units. If you need a low-impedance setup (4–8 ohm direct speaker runs) with short cable distances under 50 feet, a transformer is unnecessary; run the amplifier straight to the speakers. For installations requiring multiple independent transformer channels or built-in mixing, consider a commercial audio amplifier with integrated 70V distribution rather than a standalone transformer.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the Speco T7010 in several large commercial security projects—warehouses, multi-building campuses, and retail chains where paging and emergency audio need to reach dozens of speakers spread across 200+ feet of cable. The T7010 does exactly what a 70V transformer should: take the amp's output, step it to high impedance, and let you run skinny cable for miles without losing intelligibility or power. Simple, reliable, and it doesn't require a specialist to install.
Technical Highlights:
- 10W Capacity: Supports up to 10W of speaker load, equivalent to five 2W speakers or a mix of 1W, 2W, 4W units. At full load, impedance is properly matched and no signal loss occurs across 100+ feet of cable.
- 70V Line Impedance: Eliminates the copper loss that kills long low-impedance runs. A 4-ohm direct run degrades noticeably over 75 feet; a 70V transformer run stays flat to 150+ feet. Real benefit for large facilities.
- Compact Mounting: 3–5 inches tall, fits in wall cavities, equipment racks, or above drop ceilings. No external heat sink required if mounted vertically with airflow.
Deployment Considerations:
- Total speaker load must be calculated and not exceed 10W; if you're over, thermal throttling will occur and paging may cut out during sustained use.
- Ensure amplifier output is rated for 70V lines; feeding a low-impedance amp output directly into a 70V transformer risks damage to the transformer.
- Mount with vertical or angled orientation to allow hot air to rise; horizontal mounting on top of other equipment traps heat and reduces lifespan.
Best fit: large commercial facilities (hospitals, schools, warehouses, manufacturing) with distributed paging or background music, multi-building campuses, and security projects where the amplifier is centralized but speakers are scattered. If you're running paging from a control panel or emergency intercom system to 8+ zones, the T7010 is a cost-effective and robust choice that outlasts consumer audio gear by years.
Frequently Asked Questions
Q: What's the difference between a 70V transformer and just running speaker cable directly from the amplifier?
A: Low-impedance (4–8 ohm) speaker cable loses signal strength over distance because of resistance in the copper—roughly 0.5 dB of loss per 100 feet at 8 ohms. A 70V transformer converts that to high-impedance, which means the same cable run loses almost nothing. For runs under 50 feet, direct connection is fine; over 50 feet, a transformer like the T7010 is the standard approach in commercial audio.
Q: Can I connect multiple T7010 transformers to the same amplifier?
A: Yes. Each transformer is independent. If one amplifier needs to feed two separate speaker zones or coverage areas, you can use multiple T7010 units in parallel, provided the total 70V line load across all transformers stays within the amplifier's rated capacity. Check your amplifier's output specs to confirm.
Q: How do I know what size transformer I need?
A: Add up the wattage of every speaker connected to the transformer. Most commercial 70V speakers are labeled 1W, 2W, 4W, 6W, or 10W. If your total is 10W or less, the T7010 works. If your total exceeds 10W, choose a 25W, 50W, or larger model to stay well under the transformer's rated capacity and avoid thermal issues.
Q: Does the T7010 work with ceiling speakers, wall speakers, or both?
A: The transformer is output-agnostic—it doesn't care whether the connected speakers are ceiling-mounted, wall-mounted, or pendant. As long as the speakers are rated for 70V and their total wattage doesn't exceed 10W, they'll work. This flexibility is why transformers are standard in retrofit paging projects where speaker types vary.
Q: What happens if I exceed the 10W rating?
A: The transformer will overheat. Thermal limiting kicks in, which reduces output and may cause paging to cut out or sound distorted during sustained use. For heavy loads, select a 25W or 50W transformer instead.
Q: Does the T7010 require any power source of its own?
A: No. It's a passive transformer—no electronics, no power supply needed. It converts impedance using only the audio signal flowing through it.
