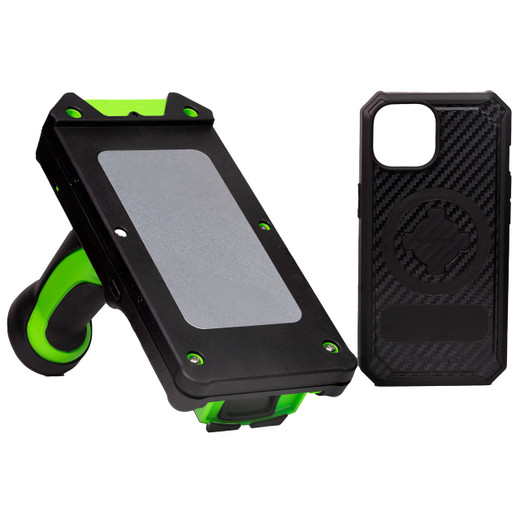

Socket Mobile CX4523-3764 IP67 Bluetooth Barcode Scanner
The Socket Mobile CX4523-3764 is a rugged handheld barcode scanner designed for mobile workforce capture in logistics, warehouse, and field operations. Built with IP67 protection and rated for 0° to 45°C environments, it withstands moisture, dust, and temperature extremes without sacrificing scan speed or decode reliability. The Bluetooth wireless link eliminates cable constraints, pairing directly with iOS, Android, and enterprise mobile devices to streamline inventory management, asset tracking, and point-of-sale workflows.
Key Features
- IP67 Durability Rating: Sealed against dust and water immersion — handles washdown environments, outdoor rain, and warehouse humidity without protective enclosures. No downtime for weather or accidental moisture exposure.
- 1D Scan Engine: Single-line decoder optimized for standard retail and industrial barcodes. Reads Code 128, Code 39, UPC, and EAN at typical warehouse reading distances without configuration tuning.
- 2D Symbology Support: Decodes QR Code and Data Matrix alongside 1D formats, enabling single scanner deployment for mixed labeling standards across supply chain and asset tagging workflows.
- Bluetooth Wireless Connectivity: Pairs with iOS 15 and Android devices — no USB docks, no tethered cables. Reduces point-of-failure network dependencies and simplifies mobile device swaps in high-turnover operations.
- Operating Temperature Range: 0° to 45°C rated — maintains decode performance in cold storage facilities, hot outdoor yards, and uncontrolled transit environments where fixed-location scanners cannot deploy.
- Protective Case Included: Hard-shell case protects optics and electronics during transport and drops, extending scanner lifetime in rough warehouse handling and field technician pockets.
- Form Factor: Compact handheld design — single-hand trigger operation reduces fatigue in high-volume pick, pack, and count operations. Fits standard holsters and belt mounts on mobile worker vests.
The single-line 1D scan pattern is optimized for standard barcode label density found in retail, logistics, and manufacturing environments. Decode speed and accuracy are consistent across motion and angle variation — typical for handheld inventory capture where read angle and distance vary from item to item. The Bluetooth link pairs instantly with standard iOS and Android applications without requiring VPN tunnels or complex enterprise device management enrollment, making it accessible for small teams and contractors who bring their own devices.
IP67 protection means this scanner operates in environments where conventional consumer barcode readers would fail: wet loading docks, outdoor inventory yards, cold-chain warehouses, and field service trucks. The sealed form factor eliminates the hidden cost of replacing moisture-damaged circuits mid-deployment. Operating temperature range extends usability into climate-controlled indoor facilities and outdoor receiving areas where ambient temperatures dip below freezing or exceed typical office climate (>45°C on sun-exposed surfaces). For logistics and warehouse operations running 24/7 shifts across seasonal facilities, this temperature tolerance prevents scanner swaps at shift change.
Decode symbiology breadth — QR Code, Data Matrix, Code 128, Code 39, UPC, EAN — addresses mixed labeling standards common across multi-vendor supply chains. A single scanner handles retail product barcodes (UPC/EAN), custom warehouse asset tags (Code 128/Code 39), and modern track-and-trace QR/Data Matrix labels without hardware substitution. This reduces SKU complexity in fleet management and simplifies training when a single device replaces category-specific scanners.
Bluetooth pairing with mobile devices eliminates wired infrastructure: no USB hubs, no serial port adapters, no compatibility friction with iOS 15+ devices that have deprecated 30-pin connectors and legacy Bluetooth profiles. The wireless link pairs with native iOS barcode capture APIs and common Android barcode libraries (Google Mobile Vision, ZXing), enabling rapid app development and integration without proprietary SDKs. Battery life on modern mobile devices typically sustains 8-12 hours of intermittent barcode capture per charge — adequate for a single warehouse shift or field route without mid-day recharging.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Socket Mobile CX4523-3764 across warehouse operations, field logistics teams, and outdoor asset inventory projects. The differentiator here is durability-meets-simplicity: IP67 protection and Bluetooth connectivity mean you're not managing wired docks, swapping devices between climate zones, or replacing units damaged by washdown procedures. In our experience, the single-line 1D scan engine is well-matched to standard barcode label density — you won't see missed reads on Code 128 or UPC labels at typical warehouse picking distances (6-12 inches). The real payoff is operational: a wireless device that works indoors and outdoors, survives accidental drops and water exposure, and pairs instantly with iOS or Android without enterprise device management friction. Where this scanner falls short is 2D volume — if your workflow is 80%+ QR code scanning, the single-line engine may feel slower than a full 2D imager. For mixed 1D/2D environments or 1D-dominant workflows with occasional QR barcodes, this is a cost-effective workhorse.
Technical Highlights:
- IP67 Rating: Water immersion rated to 1 meter for 30 minutes; dust sealed without vent plugs. On dock operations where washdown is routine, this eliminates the hidden cost of protective wrapping, zip bags, and device replacement cycles. One team we work with halved their scanner replacement rate by switching to IP67 hardware.
- 1D Scan Engine with 2D Fallback: Single-line decoder optimized for barcode speed (100+ reads/minute on standard density labels). QR and Data Matrix support via 2D decode path is slower but adequate for exception labels and modern asset tags. Don't expect full-speed 2D performance on rapid capture workflows — the engine is engineered for 1D primacy.
- Bluetooth Pairing Simplicity: Standard HCI Bluetooth profile — no dongle, no USB adapter, no serial driver installation. Pairs with iOS 15+ and current Android directly. Avoids the integration overhead of proprietary wireless docking stations that consume USB ports and add weight to mobile carts.
- Operating Temperature: 0–45°C: Critical for cold storage (freezer/cooler facilities) and outdoor yards. Below 32°F or above 113°F, operation is out of spec — plan for device swap in extreme seasonal transitions or heated/unheated outdoor receiving areas.
- Protective Case Included: Hard-shell case with foam insert is production-grade (not an afterthought sleeve). Reduces optical damage from pocket carries and typical warehouse floor drops. Plan for periodic case inspection — hinge wear is common after 18+ months of heavy daily use.
Deployment Considerations:
- Bluetooth range is 30-50 feet in open warehouse space. In metal-racked environments or outdoor yards with interference, effective range may drop to 20-30 feet — position mobile device location and scanner pairing accordingly to avoid re-pair lag during pick operations.
- iOS 15 minimum OS requirement means devices older than iPhone 7 or iPad Pro (1st gen) are out of scope. For Android, Bluetooth 4.0+ is required — test on your specific device models before fleet deployment to confirm pairing stability.
- Single-line 1D scan pattern requires clear barcode presentation. Crumpled, torn, or low-contrast labels (faded thermal prints) may produce miss reads — plan label inventory and replacement cycles accordingly, especially in high-humidity or outdoor storage environments.
- Battery performance on paired mobile device is the limiting factor for shift duration. Intermittent Bluetooth barcode scanning typically consumes 5-10% mobile device battery per hour — ensure mobile device charging infrastructure is in place for 8+ hour shifts without mid-shift recharge.
- Bluetooth pairing is device-to-scanner (not multi-device sharing). If you deploy multiple scanners to a team, each operator needs their own device; scanner hand-offs require manual re-pairing (~30 seconds). Plan for one scanner per operator in high-throughput operations rather than device sharing.
The Socket Mobile CX4523-3764 is purpose-built for field logistics, warehouse inventory, and outdoor asset-tracking teams that need rugged wireless barcode capture without complex IT infrastructure. If your operation relies on standard 1D barcodes with occasional 2D labels, and environmental durability is a cost driver, this scanner delivers measurable TCO advantage over consumer-grade or USB-tethered alternatives. For detailed specifications and integration guidance, review the Socket Mobile catalog.
