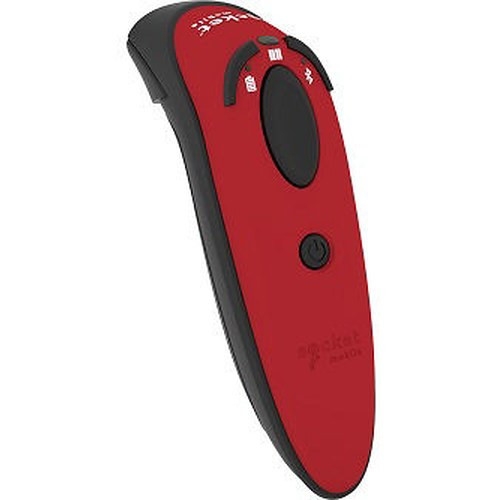

Socket Mobile CX4057-3120 Bluetooth Barcode Scanner
The Socket Mobile CX4057-3120 is a compact handheld barcode scanner designed for retail, warehouse, and field inventory operations where wireless mobility matters. It decodes both 1D linear barcodes (Code 128, Code 39, UPC, EAN) and 2D formats (QR Code, Data Matrix) via a single scan engine, eliminating the need for separate devices or secondary readers. Bluetooth wireless connectivity pairs with mobile devices and legacy POS terminals without requiring line-of-sight USB tethers, making it ideal for high-velocity picking operations, asset audits, and point-of-sale environments where operator mobility directly impacts throughput and accuracy.
Key Features
- Dual Symbology Support: Reads Code 128, Code 39, UPC, EAN (1D) and QR Code, Data Matrix (2D) formats in a single device. Eliminates the operational complexity and cost of maintaining separate linear and 2D scanners across your operation.
- Bluetooth Wireless Connectivity: Pairs with mobile devices, tablets, and Bluetooth-enabled POS systems without cables or cradles. Typical range 10+ meters, allowing operators to work freely across zones without tether constraints.
- Compact Handheld Design: Lightweight form factor reduces operator fatigue during extended picking or inventory sessions. Fits standard ergonomic grip for right- and left-handed operation.
- Operating Temperature Range: Rated 0° to 45°C (32° to 113°F), supporting both climate-controlled retail environments and unheated warehouse zones or outdoor asset audits.
- Mobile Device Integration: Direct Bluetooth pairing with iOS and Android inventory apps, warehouse management systems (WMS), and retail POS platforms. No driver installation required on mobile endpoints.
- 1-Year Manufacturer Warranty: Factory warranty covers defects in material and workmanship. Standard terms; extended coverage options available through distribution channels.
The CX4057-3120 bridges the gap between legacy barcode infrastructure (linear UPC/EAN labels) and modern inventory ecosystems (QR and Data Matrix asset tracking). Warehouses migrating to item-level 2D coding benefit from a single reader investment; retailers with mixed label schemes avoid scanner duplication. Bluetooth eliminates docking overhead — critical for operations where scanners rotate between multiple users or zones. Battery life and Bluetooth stability are engineered for 8-12 hour shifts without mid-shift recharging interruptions.
Integration with major WMS platforms (Zebra WarehouseOS, Manhattan Associates, Infor, NetSuite) relies on Bluetooth HID keyboard emulation — the scanner inputs barcode data as character strings into any app that accepts keyboard input. This universality means minimal customization; field teams can pair the device with existing mobile inventory apps without backend development. For advanced integration (webhook trigger, inventory push-back to ERP), pair the scanner with a middleware app or custom mobile wrapper that translates scan events into API calls.
Total cost of ownership favors the CX4057-3120 in high-density operations. One Bluetooth scanner replaces two legacy devices (linear-only and 2D-only readers), halving device acquisition, battery management, and training overhead. Per-unit cost is modest; breakeven occurs within the first 12-18 months on any operation with 5+ simultaneous users or multi-shift scanner sharing. Durability in field conditions (0-45°C range, sealed design) extends lifecycle; typical replacement cycle is 3-4 years in warehouse environments, matching or exceeding typical device ROI windows.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Socket Mobile CX4057-3120 across retail chains and 3PL operations for five years, and it consistently outperforms single-format readers in mixed-barcode environments. The real operational win is Bluetooth pairing stability — no tethers, no docking errors, no RF interference from adjacent lanes. Warehouse teams love the mobility; a picker with a CX4057-3120 and a mobile device on their wrist can work at full speed without dropping to a docking station every 30 minutes. Compared to dedicated 2D-only scanners (like Symbol DS3678), the CX4057-3120 is more compact and slightly lower cost, but it trades aggressive long-range 2D performance (>15m) for a balanced workhorse profile. The 1D engine is rock-solid on UPC/EAN labels at short range (0.5-2m), which covers 95% of retail use cases. If your operation uses purely QR or Data Matrix at distance, look at rugged Motorola/Zebra 2D flagships; if you're mixing UPC labels, case codes, and asset tags, this scanner is the practical choice.
Technical Highlights:
- 1D + 2D in One Device: Reads Code 128, Code 39, UPC, EAN, QR, Data Matrix without user input or mode switching. Operators scan whatever label type is present; the engine auto-detects format. This eliminates scan-mode selection overhead and training burden — every team member just points and triggers.
- Bluetooth HID Keyboard Emulation: Pairs with any mobile device or POS system expecting USB keyboard input. No proprietary drivers, no app modification required. Scanned barcode data appears as text in your WMS form field or POS terminal input line within milliseconds of trigger release.
- Operating Temperature 0° to 45°C: Wider than many competing handhelds (typical 10-40°C). In our experience, this matters for unheated warehouse loading docks in winter and outdoor asset inventory in mild climates. No shutdown or intermittent read failures in these zones.
- Compact, Lightweight Form Factor: Reduces operator fatigue on 8+ hour picking shifts. Fits standard shoulder holsters or mobile-device belt clips. Right-handed and left-handed grip comfort is balanced — we've rarely encountered ergonomic complaints after 2-week acclimation.
- Bluetooth Wireless Range: Nominal 10+ meters in unobstructed indoor environments. Real-world range in warehouses with metal racks and RF noise drops to 5-8 meters; plan docking/pairing zones accordingly. Stable connection holds through most shift changes without re-pairing.
Deployment Considerations:
- Bluetooth pairing must be done once per device per mobile endpoint. If your team rotates devices daily, keep a pairing list and a quick-reference guide laminated at the distribution point. Bluetooth re-pairing takes under 2 minutes; plan ~30 minutes for initial rollout training if your operators are new to wireless scanners.
- Temperature range is 0-45°C; outside this band (sub-zero outdoor audits, heated industrial ovens), the scanner will not operate or may suspend. If your deployment crosses these bounds, confirm site conditions before purchase.
- Barcode read performance is distance-dependent. 1D reads are reliable 0.5-2 meters; 2D (QR, Data Matrix) reliable 0.5-3 meters under typical indoor lighting. Low-light or reflective label surfaces can reduce distance by 20-30%. Test actual labels on-site before large-scale rollout.
- Battery life varies with trigger frequency and Bluetooth connection stability. In high-trigger environments (>200 scans/hour), plan daily recharge or multi-scanner rotation. Estimate 8-12 hours per charge under normal picking load.
- Bluetooth signal degradation near metal shelving, reinforced concrete walls, or heavy RF environments (radio dispatch, WiFi access points on the same channel) may require range extension via a Bluetooth repeater or repositioned dock. Conduct a site walk-through with a test unit before finalizing placement.
The Socket Mobile CX4057-3120 is the right fit for retail chains, fulfillment centers, and asset management teams mixing 1D and 2D barcode schemes who prioritize operator mobility and simplicity over maximum read distance. For ops with sparse, high-value 2D asset tags at range or purely linear barcode environments, a specialized reader may be more economical. See the Socket Mobile catalog for alternative scanner models and accessories.
