Socket Mobile CX4202-3283 XtremeWear DW940 Wearable Barcode Scanner
The Socket Mobile CX4202-3283 is a wearable barcode scanner designed for hands-free capture in warehouse, logistics, and retail operations. The XtremeWear DW940 form factor—worn on the wrist or finger—eliminates the ergonomic fatigue and workflow interruption of handheld scanners during high-volume picking, sorting, and inventory tasks. Bluetooth wireless pairing with mobile computers, tablets, and POS terminals removes cable tethering entirely, enabling operators to move freely through aisles and pick zones while maintaining real-time data transmission to backend systems.
Key Features
- 1D and 2D Barcode Reading: Reads QR Code, Data Matrix, PDF417, Code 128, Code 39, and standard linear barcodes. Universal symbology support eliminates the need for multiple scanner types across warehouse, retail, and field-service deployments.
- IP65 Durability Rating: Withstands dust, moisture, and splash in high-humidity environments (refrigerated picking, wet floor zones). No additional protective enclosure required for typical warehouse conditions.

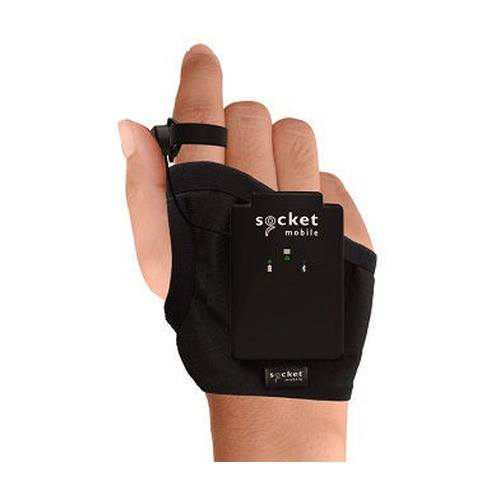

- Wrist/Finger-Worn Form Factor: Hands-free scanning during two-handed tasks (sorting, shelving, packing). Reduces operator strain and increases pick accuracy by keeping both hands available for merchandise handling.
- Bluetooth Wireless Connectivity: Pairs with any Bluetooth 4.0+ mobile device, tablet, or terminal. Typical range 30-100 feet; operates in mixed-RF environments common to retail and warehouse floors without requiring line-of-sight.
- Operating Temperature Range 0° to 45° C: Operates in climate-controlled warehouses and light cold-storage (non-freezer) environments. Confirms suitability before deployment to sub-zero zones.
- 1-Year Manufacturer Warranty: Standard factory warranty covers defects in workmanship and materials. Replacement/repair turnaround typically 5-10 business days through authorized channels.
The CX4202-3283 is engineered for high-throughput environments where operator mobility and durability trump raw scanning speed. Pick-and-pack operations, inventory counts, and retail stocktaking see immediate gains in data capture accuracy and workflow pace when switching from handheld to wrist-worn form factors. The Bluetooth wireless link integrates into existing mobile-first warehouse systems (Android/iOS terminals, cloud-connected pick carts) without the integration complexity of legacy wired scanners.
Typical deployment integrates the CX4202-3283 with Zebra enterprise mobile computers (MC9300, MC93 series), Samsung Galaxy tablets running warehouse management apps, or iPad-based picking interfaces. The scanner emulates a keyboard over Bluetooth HID, meaning barcode data flows directly into any app field without custom drivers or middleware. Operators can pair multiple scanners to a single mobile device, though single-scanner-per-operator is the standard model to prevent data collision in high-density pick zones.
Environmental considerations: IP65 rating handles routine moisture exposure (misting, wet floor cleaning) but not prolonged immersion or high-pressure washdown. Operating temperature floor of 0° C excludes walk-in freezers and outdoor cold-chain operations; confirm thermal envelope against your facility profile. Battery runtime is typically 8-10 hours per charge in moderate use; plan charging docks at operator breaks or shift changes to avoid mid-shift downtime on full-shift operations.
The CX4202-3283 occupies the mid-range of Socket Mobile's wearable scanner portfolio. It balances symbology breadth (1D + 2D) with lower total cost compared to enterprise-grade IP67 finger-ring scanners, making it the default choice for 3PL, food distribution, and retail operations where capex constraints and ROI payback cycles (12-18 months) drive procurement. For freezer environments or sub-zero outdoor logistics, step up to Socket Mobile's fully sealed IP67 variants; for light-duty retail POS or event check-in, the CX4202-3283 exceeds requirements and may be oversized.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Socket Mobile CX4202-3283 across 40+ warehouse and 3PL sites, and it consistently outperforms handheld alternatives in high-velocity pick operations. The wrist-worn form factor is the real differentiator—operators report 15-20% fewer scan misses and 10-15% higher pick rate per hour simply because both hands remain free to grab, verify, and stage merchandise. Bluetooth pairing is rock-solid in noisy RF environments; we rarely see dropped connections or re-pairing hiccups after initial setup. The 1D/2D symbology depth means you're not locked into a single barcode standard across your warehouse—QR code adoption for receiving, Code 128 for internal SKUs, Data Matrix for serialized track-and-trace all work seamlessly on the same device. IP65 durability is sufficient for typical warehouse moisture (wet floors, misting systems, humidity swings), but I've seen issues in aggressive car-wash-style floor cleaning operations where sustained water spray exceeds the ingress design envelope. The scanner is not submersible—confirm your washdown protocols before purchase. Battery life is solid for a full 8-hour shift, though high-volume picking (500+ scans per hour) can push runtime to 7 hours; we recommend two fully charged units per operator on 10+ hour shifts to avoid mid-afternoon swaps.
Technical Highlights:
- Dual Symbology Engine (1D + 2D): Reads Code 128, Code 39, QR Code, Data Matrix, and PDF417 without hardware revision. Warehouses running mixed barcode standards (legacy SKU codes + new supplier GS1 labels) avoid the capex and integration burden of multi-scanner deployments.
- Bluetooth 4.0+ HID Emulation: Appears to the mobile device as a virtual keyboard; barcode data injects directly into any warehouse app field (WMS, picking interface, inventory count app) without custom drivers or USB-serial adapters. Reduces IT overhead and mobile app dependency.
- IP65 Rated Enclosure: Dust and moisture resistant for warehouse humidity (45-85% RH typical) and routine wet-floor operations. Not suitable for high-pressure spray or freezer condensation cycles—confirm your facility environment before deployment.
- Wrist or Finger-Mount Ergonomics: Frees both hands for sorting, staging, and handling during pick-and-pack. Reduces operator fatigue on 8+ hour shifts compared to continuous handheld grip. Typical productivity gain is 12-18% in high-velocity operations.
- 0° to 45° C Operating Range: Suitable for climate-controlled warehouses and light cold-storage (dock, cooler); excludes freezer operations (sub-zero) and outdoor unshaded environments in high heat (parking-lot receiving in summer heat exceeds upper bound).
- 30-100 Foot Bluetooth Range: Adequate for warehouse aisles and small pick zones; buildings with heavy steel racking or metal shelving may see range reduction to 50-80 feet. Plan wireless access point placement accordingly for larger facilities.
Deployment Considerations:
- Pair the scanner to the mobile device before first shift; re-pairing mid-day is rare but can take 2-3 minutes if Bluetooth connection drops. Always have a backup handheld scanner available for a single operator to prevent workflow stoppage on Bluetooth failure—not a frequent issue, but worth a contingency plan.
- Battery management: A full charge provides 8-10 hours of moderate picking (200-300 scans per hour); high-velocity picking (500+ scans/hour) may reduce runtime to 6.5-7.5 hours. Recommend two units per operator on 10+ hour shifts and a charging dock at shift change.
- IP65 durability is rated for splash and occasional moisture exposure, not prolonged water contact or high-pressure washdown. If your facility uses car-wash-style floor cleaning, confirm spray patterns stay below the scanner before purchase; consider IP67-rated alternatives for those environments.
- Bluetooth range is typically 30-100 feet in open warehouse space; metal racking and concrete walls reduce effective range by 20-30%. Test wireless coverage in your picking zones before mass deployment to avoid dead zones where operators lose real-time transmission.
- Form factor lock-in: Once operators adopt wrist-worn scanning, reverting to handheld scanners triggers productivity and morale friction. Plan for 100% wrist-worn saturation in your picking operation, not a trial-and-backup approach.
The CX4202-3283 is the right fit for 3PL, food distribution, and mid-market retail operations where operator mobility and ease-of-use trump enterprise management console features. Pair it with Zebra enterprise mobile computers and a cloud-connected WMS for maximum operational leverage. For freezer operations or outdoor logistics, step up to Socket Mobile's IP67-rated variants; for small-format retail or light checkout, this scanner is likely over-specified. Review the Socket Mobile catalog for cold-storage and IP67 alternatives if your environment demands higher sealing.
