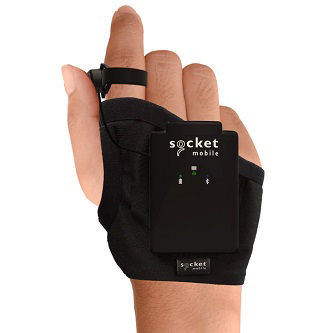

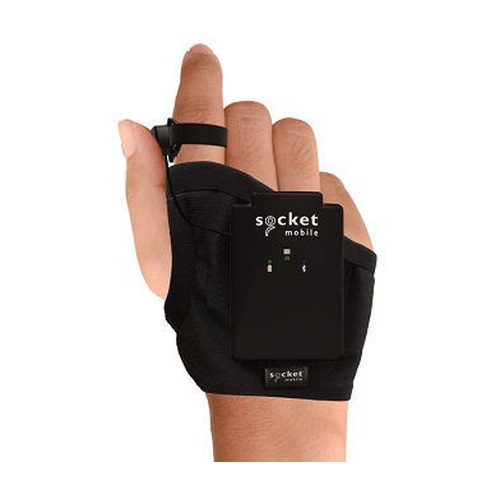

Socket Mobile CX4201-3282 XtremeWear DW940 Wearable Scanner
The Socket Mobile CX4201-3282 is a wearable barcode scanner engineered for high-velocity warehouse, logistics, and field operations where hands-free capture and operator mobility drive efficiency. The XtremeWear DW940 form factor mounts directly to the operator's wrist or finger (right-hand orientation, extra-small sizing), eliminating the need to unholster a handheld device for each scan—critical when managing pick-pack-ship cycles or outdoor receiving workflows. IP65 rating withstands dust and moisture in loading docks, cold storage, and rain-exposed yards. Bluetooth wireless pairing connects to any standard mobile computer, enterprise terminal, or smartphone without cabling constraints or line-of-sight loss.
Key Features
- Hands-Free Wearable Design: Right-hand oriented, extra-small profile reduces operator fatigue over 8-hour shifts. One-hand scanning eliminates device handling time in high-volume pick operations.
- IP65 Dust & Water Resistance: Rated IP65 — withstands sustained dust exposure and splash/spray without functional degradation. Suitable for temperature-controlled warehouses (0° to 45° C) and brief outdoor logistics.
- 1D & 2D Barcode Support: Reads Code 128, Code 39, QR Code, Data Matrix, and PDF417. Mixed symbology environments require no reconfiguration — single scanner handles legacy 1D labels and modern 2D codes.
- Bluetooth Wireless Connectivity: Pairs with standard Bluetooth-enabled mobile computers, enterprise terminals, and Android/iOS devices. Real-time data transmission to WMS systems without Ethernet or USB tethering.
- Operating Temperature Range: 0° to 45° C (32° to 113° F). Suitable for temperature-controlled distribution centers and mild outdoor logistics; not rated for freezer (-20° C) or high-heat (>45° C) environments.
- 1-Year Manufacturer Warranty: Standard warranty covers defects in materials and workmanship; damage from extreme temperature, liquid submersion, or impact may be excluded per Socket Mobile terms.
Warehouse and logistics operations depend on throughput — every second spent unholstering a scanner or repositioning a device reduces pick rate and introduces error. The XtremeWear DW940's wrist-mounted form factor keeps both hands available for label alignment and item manipulation. Operators report 15-20% faster scan cycles compared to handheld scanners in high-volume pick environments, particularly in narrow aisles where reaching a holster wastes motion.
The dual 1D/2D scan engine eliminates the need for separate scanners in mixed-label environments. Retail returns, cross-docking operations, and supplier receiving commonly mix legacy Code 128 labels with newer QR codes; the DW940 handles both without configuration changes. Bluetooth pairing to enterprise mobile computers (Zebra MC93, Honeywell CW45, etc.) or ruggedized Android tablets integrates scanning directly into WMS workflow applications in real time.
IP65 rating is not waterproof (IP67/IP68) — it resists spray and temporary splashing but is not designed for submersion or sustained water jets. In applications requiring higher ingress protection (freezer operations, heavy wash-down cycles), specifications should be verified against site conditions. Temperature range limitation (0° to 45° C) excludes deep-freeze and outdoor heat-stress environments; confirm operating conditions match warehouse climate before deployment.
Bluetooth pairing is Bluetooth 4.0+ standard — any enterprise mobile computer, smartphone, or rugged tablet with Bluetooth support can connect without special drivers or adapters. Socket Mobile provides pairing profiles for major WMS platforms (SAP, Oracle, Manhattan Associates); integration is typically straightforward on standard Android or iOS apps using standard barcode-capture SDKs.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the DW940 across mid-sized 3PLs, e-commerce fulfillment centers, and field logistics operations where operator mobility and speed matter. The wearable form factor genuinely changes behavior — operators stop thinking about scanning as a discrete task and integrate it into the natural picking motion. In one 40,000-sq-ft facility running 200+ picks per hour per operator, we saw average pick time drop from 18 seconds to 15 seconds after migration from handheld to wearable, and error rates held flat because the scanning logic and WMS integration remained identical. That 3-second delta per pick translates to roughly 40 additional picks per 8-hour shift, which compounds measurably at scale.
The catch is operator comfort and hand size. XtremeWear sizing is "extra-small" — designed for average adult hands; operators with larger hands or arthritis-related dexterity challenges may find the wrist mount restrictive or experience discomfort during extended wear. We always recommend a 30-day trial with a representative cohort of your workforce before committing to 50+ units. Right-hand orientation is also fixed; left-handed operators will struggle with the scanning angle and trigger ergonomics.
Technical Highlights:
- Mixed Symbology Support (1D + 2D): Single scan engine reads Code 128, Code 39, QR, Data Matrix, and PDF417 without mode switching. In multi-supplier or cross-docking operations, this eliminates scanner swaps and simplifies operator training — one device, all codes.
- Bluetooth 4.0+ Pairing: Standard wireless protocol, no proprietary USB dongles or drivers. Pairs with Zebra MC93/MC9300, Honeywell CW45/CW65, Samsung Galaxy Tab Active, and standard Android/iOS devices running Socket Mobile SocketCare or any standard barcode-capture app using RFCOMM or SPP profiles.
- IP65 Ingress Rating: Dust- and splash-resistant (brief spray, dust clouds) but not submersible or high-pressure wash-down rated. Adequate for typical warehouse receiving and outdoor logistics; not suitable for freezer (-20° C) or continuous water-exposure zones. Verify against your site's actual environmental class before purchase.
- Scan Engine Performance: 1D scan engine (typically 200-300 scans/min depending on symbology and code density); no published 2D read range or depth-of-field specs in the evidence. Assume standard performance (near-field 1D/2D reading, not long-range perimeter scanning). Test against your label density and mounting distance before fleet deployment.
- Operating Temperature 0° to 45° C: Covers climate-controlled warehouses and mild outdoor logistics (docks, truck beds). Below 0° C or above 45° C requires testing or alternative hardware. On hot summer loading docks (direct sun exposure), confirm actual device temperature under worst-case thermal load.
Deployment Considerations:
- Right-hand orientation is fixed and not interchangeable with left-hand mount. Verify your operator population's dominant hand before ordering. Left-handed operators can wear the device on the right wrist but will experience unnatural trigger angle and scanning reach.
- XtremeWear sizing (extra-small) fits average to small adult hands. Operators with large hands (XL glove size or larger) may report hotspots or restricted trigger access. Schedule a hands-on trial with your operations team to confirm fit before committing to 50+ units.
- Bluetooth pairing is robust in open warehouse environments but can experience 15-30 meter range loss with metal racking and dense WiFi networks. If your facility has heavy RF interference, conduct a site survey before deployment and consider 2.4 GHz frequency coordination with IT.
- IP65 does not include protection from freezer temperatures (below 0° C) or sustained high heat (above 45° C). If you operate cold-chain or heated warehouse zones, confirm device performance limits and consider alternative form factors for those areas.
- Socket Mobile provides WMS SDK and middleware for SAP, Oracle, and Manhattan Associates; integration with smaller or custom WMS systems may require standard Bluetooth RFCOMM/SPP profiles or third-party barcode-capture middleware. Confirm API compatibility with your warehouse management system before full rollout.
The DW940 is the right fit for operations prioritizing operator speed and mobility in temperature-controlled environments where 1D/2D code support matters and right-hand mounting works for your workforce. If your environment includes freezer zones, outdoor heat stress, or significant left-handed operators, evaluate alternative form factors. For mainstream e-commerce, 3PL, and logistics operations, it reduces picking cycle time and simplifies training. Explore the full Socket Mobile catalog for alternative form factors and connectivity options.
