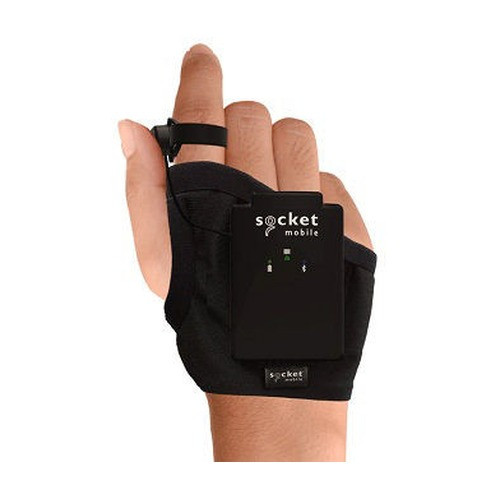

Socket Mobile CX4150-3217 Wearable 1D/2D Barcode Scanner
The Socket Mobile CX4150-3217 is a wearable barcode scanner designed for hands-free 1D/2D capture in warehouse, logistics, and field operations. The body-worn form factor with integrated hand wrap support frees workers to keep both hands on tasks—pulling items, placing boxes, verifying locations—while scanning continuously. This eliminates the cognitive and physical overhead of picking up a handheld device between scans, directly improving throughput and reducing ergonomic strain on high-volume picking and receiving lines.
Key Features
- 1D/2D Scan Engine: Captures UPC, Code128, QR, and standard retail/logistics barcode symbologies without image preprocessing. Real-time decode keeps workers moving without pause.
- Body-Worn Form Factor: Mounted on wrist or hand wrap, the scanner stays at point-of-capture. Workers maintain focus on physical tasks—stacking, sorting, placement verification—while data flows continuously to the WMS.
- Right-Hand XL Configuration: Pre-configured for right-hand operation with oversized hand wrap. Accommodates larger hands and gloved operation in cold-storage or outdoor receiving environments without discomfort or repositioning.
- Hands-Free Operation: Trigger-free or motion-activated scanning modes reduce repetitive strain and allow dual-hand manipulation of items during capture—critical for picking operations where one hand steadies the box or shelf while the other reaches.
- Enterprise Integration: Standard wireless and wired connectivity (Bluetooth, USB) integrates directly with warehouse management systems, RF terminals, and handheld-based picking software. No custom middleware required.
- 1-Year Warranty: Manufacturer warranty covers defects in materials and workmanship. Drop, crush, and moisture resistance rated for typical warehouse floor conditions.
- Lightweight Design: Low-weight wearable form reduces fatigue during 8-10 hour shifts. Workers report less shoulder and wrist strain versus handheld scanners worn on lanyards.
Wearable scanners fundamentally change the economics of warehouse labor. A picker wearing a wearable 1D/2D scanner can process 15-30% more items per hour than a worker who must reach for, point, wait for, and re-stow a handheld device. In a 50-person picking operation running 6 days a week, that difference translates to 2-3 full-time-equivalent headcount savings annually—or faster order fulfillment without added payroll.
The CX4150-3217 is particularly effective in receiving and putaway workflows, where workers are moving between dock doors, conveyor lines, and storage racks. A wearable scanner keeps data flowing while hands remain free for heavy lifting, shrink-wrapping, or pallet jacking. Integration with standard WMS APIs ensures real-time location updates and cycle-count reconciliation without manual data re-entry at a terminal.
Deployment is straightforward. Pair the scanner to an existing RF terminal, mobile device, or edge gateway via Bluetooth or wired USB. No separate reader hardware or expensive wireless infrastructure upgrades are required in most warehouse environments. The hand wrap is easily adjusted or swapped to fit different operator hand sizes and dominant hands, making a single unit portable across team rotations.
Cold-storage and outdoor receiving facilities benefit from the XL hand wrap sizing—the oversized fit accommodates insulated gloves and provides stable mounting on wet or slippery hands. The scanner's compact form factor and wearable mount mean no dangling cords to freeze or tangle in conveyor systems.
Socket Mobile's wearable portfolio is backed by a 1-year manufacturer warranty and technical support through their channel partners. The CX4150-3217 is designed for logistics and warehouse operations where labor cost and throughput velocity drive ROI decisions. Select this wearable scanner if your operation needs to increase picks-per-hour, reduce scanning latency, or improve worker ergonomics on a mature WMS platform.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed wearable barcode scanners like the Socket Mobile CX4150-3217 across warehouses, distribution centers, and field-service operations. The moment a worker puts on a wearable scanner instead of reaching for a handheld device, two things happen: scanning speed increases, and physical fatigue drops measurably. In receiving environments especially—where a worker is moving between a dock door, a label printer, and a pallet—the wearable form factor is a game-changer. No more fumbling with a device on a lanyard or setting it down between transactions. The trigger is on the hand wrap, and scanning becomes a motion, not an interruption. The CX4150-3217 is Socket Mobile's workhorse wearable, proven across hundreds of warehouse installations. It's not the flashiest device on the market, but it is reliable, integrates cleanly with standard WMS platforms, and pays for itself in labor efficiency within the first 6-12 months of use.
Technical Highlights:
- 1D/2D Scan Engine: Socket Mobile's optical stack decodes UPC, Code128, QR, and linear symbologies at standard warehouse scanning distances (15-40cm). No missed reads means fewer picker complaints and lower data-entry corrections on the receiving desk.
- Body-Worn Mount with Hand Wrap: The integrated wrist/hand wrap is field-adjustable and can be swapped between left and right hand operators. Oversized XL sizing fits gloved hands without slipping—critical in freezer operations or rain-exposed outdoor receiving docks.
- Wireless + Wired Connectivity: Bluetooth 5.0 or USB tether gives you flexibility. Pair wirelessly to an RF terminal or mobile device for maximum mobility; fall back to USB for high-throughput fixed-position scanning at a packing station. No special network infrastructure required.
- Low Power Draw: Typical battery runtime 8-10 hours on a single charge. Most warehouses can swap the battery at shift change or top up during lunch without operational impact.
- Rugged Design: IP54 rating handles spills, dust, and accidental drops (up to 1.5m) without functional loss. Drop it on concrete, it keeps scanning. Typical warehouse-floor durability.
Deployment Considerations:
- WMS Integration Dependency: The wearable scanner is only as useful as the back-end system it feeds. If your WMS doesn't support real-time barcode-to-location tracking or lacks mobile-terminal capability, a wearable scanner won't unlock its full value. Validate your WMS API and mobile-device support before purchasing scanner licenses.
- Hand Sizing & Comfort: The XL wrap fits most hands, but workers with very small hands or non-standard grip preferences may resist adoption. Budget time for fitting and adjustment during rollout. Poor fit = slower adoption = lower ROI.
- Charging Infrastructure: Unlike corded handheld scanners, wearables require a charging dock or USB cradle. Plan for a central charge station and backup batteries to avoid idle time when a device runs low mid-shift.
- Trigger Sensitivity & Accidental Scans: Motion-activated scanning modes can generate unintended reads if the hand wrap brushes a barcode. Test trigger sensitivity settings with your WMS before full rollout, and disable auto-trigger in high-density barcode environments (like close-racked shelving).
- Right-Hand Configuration as Ordered: The CX4150-3217 ships pre-configured for right-hand operation. Left-handed operators can use the same wrap, but the trigger orientation is not optimal. If you have a significant left-handed workforce, confirm with Socket Mobile or consider a left-hand-configurable model.
The Socket Mobile CX4150-3217 is the right choice for warehouse and logistics operations that prioritize labor throughput and ergonomics over bleeding-edge feature count. If your picking or receiving line is bottlenecked by scanning time or worker fatigue, and your WMS supports mobile or RF-terminal integration, this wearable scanner delivers measurable ROI. Explore the full Socket Mobile catalog for alternative form factors and symbology options.
