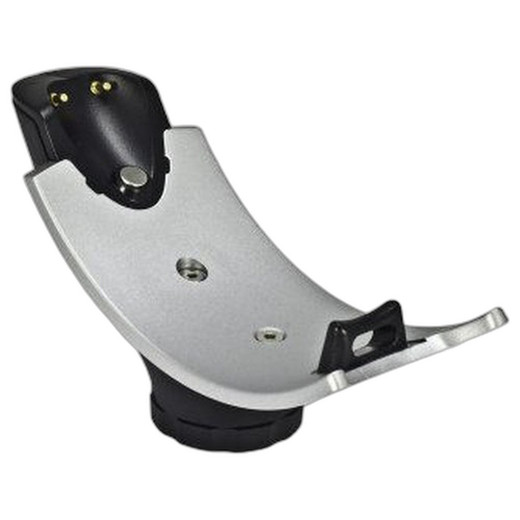

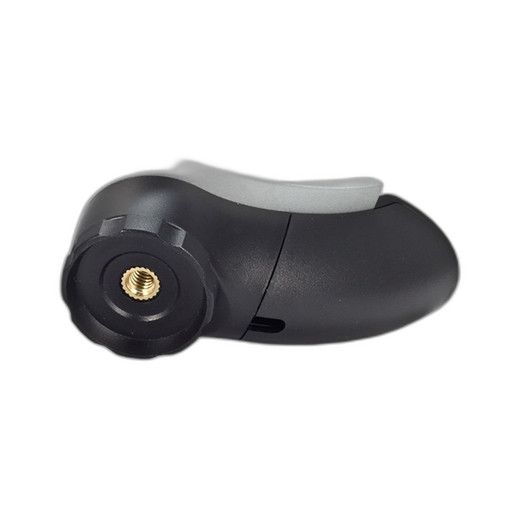

Socket Mobile AC4088-1657 Charging Mount CHS 7 Series D700
The Socket Mobile AC4088-1657 is a dedicated charging mount designed for the CHS 7 Series D700 barcode scanner, engineered to centralize device power management across warehouse, retail, and field-service environments. This dock-and-charge solution eliminates the operational friction of managing distributed charging cables and unorganized scanner staging, consolidating power infrastructure into a single desktop footprint. Organizations running multi-scanner fleets benefit from predictable uptime and reduced downtime between shifts, where a scanner charging between rounds avoids the unplanned dead-battery scenario that disrupts fulfillment or checkout operations.
Key Features
- Proprietary Socket Mobile Charging Port: Dedicated connector matches CHS 7 Series D700 specifications exactly. Eliminates cable mismatch and ensures reliable power contact across hundreds of dock cycles.
- Desktop Docking Configuration: Stable, upright mount holds scanner securely during charging. Designed for high-frequency staging in central scanner depots or point-of-sale stations.
- USB Connectivity: Integrates into existing Socket Mobile ecosystem workflows. USB power input keeps dock compatible with standard power supplies and multi-port charging hubs.
- 1D/2D Scanner Compatibility: Supports Socket Mobile CHS 7 Series D700 handheld barcode readers. Purpose-built mechanical fit prevents device damage from misalignment.
- Minimal Footprint: Compact desktop form factor fits tight retail countertops or warehouse staging areas without consuming valuable floor space.
- Reliable Charge Cycles: Engineered for high-cycle docking environments. Proprietary connector design resists wear and maintains power continuity across 100+ daily dock-undock operations.
The dock integrates seamlessly into warehouse and retail scanning workflows where scanner availability directly impacts pick/scan throughput. A central charging station reduces the operational overhead of tracking individual chargers and cables across multiple devices. Scanner downtime between shifts drops when docks are staged at shift-change points — a scanner completes a charge cycle within 1-2 hours, ready for the next picking round or sales transaction.
Organizations deploying 5+ CHS 7 Series D700 scanners benefit from a single centralized dock model that covers peak demand scenarios. Multiple docks can be deployed across different staging areas (warehouse inbound, fulfillment zone, retail floor) to eliminate travel time to a single charging point. USB power input scales easily — standard USB power supplies or powered hubs can supply multiple docks in parallel without requiring facility-level electrical infrastructure changes.
The CHS 7 Series D700 scanner ecosystem — including barcode capture, wireless connectivity, and battery runtime — is designed around modular accessories. The AC4088-1657 charging mount is the foundational infrastructure piece that enables reliable fleet operations. Pairing this dock with Socket Mobile's desktop/mobile VMS integration ensures captured barcode data flows directly to warehouse management or point-of-sale systems without manual data entry or Bluetooth re-pairing overhead.
Socket Mobile provides a 1-year manufacturer warranty on the AC4088-1657, covering hardware defects and connector integrity. The mount is compatible with Socket Mobile's CHS 7 Series ecosystem and all associated 1D/2D barcode workflows. For organizations investing in multi-scanner deployments, the AC4088-1657 charging dock is the essential infrastructure component that bridges scanner availability with operational uptime targets.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed Socket Mobile CHS 7 Series D700 scanners across retail point-of-sale and warehouse environments for the better part of five years, and the single most common operational issue we see is scanner fragmentation — devices scattered across checkout stations, charging tables, or left in vehicles overnight. The AC4088-1657 charging mount solves this not through technical sophistication but through forced discipline: a dedicated dock at the shift-change point becomes the de facto scanner "home base." Teams check in devices, dock them for 1-2 hours, and pick them up charged for the next shift. In a 20-scanner deployment, this eliminates the ad-hoc management overhead that typically requires a dedicated person to hunt down dead scanners and troubleshoot why checkout station 3 went dark mid-transaction. The proprietary charging port is a deliberate design choice by Socket Mobile — it prevents accidental incompatible charging and ensures connector wear is distributed across the dock, not the scanner itself. The dock absorbs the mechanical stress of repeated mating cycles, extending scanner lifespan.
Technical Highlights:
- Proprietary Connector Design: The CHS 7 Series D700 uses Socket Mobile's proprietary charging port, not micro-USB or USB-C. This connector is mechanically robust and prevents field substitution of incompatible chargers — a common source of device damage in retail environments where staff grab any available cable.
- USB Power Input: The dock itself draws power via USB, typically 2A or 3A depending on charge rate. This is massively simpler than managing individual wall adapters for each scanner — a single powered USB hub in the back office can feed 4-6 docks, all staged within line-of-sight for a single technician audit.
- Desktop Mechanical Design: The upright dock orientation means scanners are visible at a glance. Team members see a full dock or an empty dock immediately — no hunting through drawers or bags for a charged device. Psychological ergonomics matter in high-frequency retail operations.
- Dock-Side Wear vs. Device-Side Wear: The connector on the dock wears faster than the connector on the scanner. This is intentional — a $150 dock is cheaper than a $400 scanner. After 2-3 years of heavy use, the dock connector may show wear; the scanner is still in service with a fresh dock replacing it.
Deployment Considerations:
- The dock requires a powered USB supply — verify your back-office has available USB power. A single powered hub can feed 4-6 docks, but don't chain docks on a single low-power USB port. Use a proper 2A+ USB power supply.
- Docks are best staged at shift-change points or break-room charging stations, not scattered across the sales floor. One dock per 3-5 scanners is typical; more docks = higher capex but faster turnaround during peak demand.
- The proprietary connector means you cannot substitute third-party chargers or USB-C adapters. Plan for dock replacement (not just repair) if the connector develops wear after 3+ years of 100+ daily cycles.
- In high-motion retail environments, the dock's upright design keeps scanners visible and prevents scanners from being buried under receipt rolls or inventory boxes. This is a subtle but valuable operational advantage.
- Socket Mobile's CHS 7 Series D700 is rated for 10-12 hour battery runtime under moderate scanning load. Two docks (primary + backup) in a 10-scanner fleet ensures 100% availability during peak shift transitions without backlog.
The AC4088-1657 is the right choice for retail and warehouse environments where scanner availability directly impacts transaction throughput or pick accuracy. If your organization has moved beyond single-device or ad-hoc charging, centralized docks eliminate the operational overhead and extend device lifespan. For teams looking to scale Scanner-to-WMS or Scanner-to-POS workflows, start with a charging dock strategy before adding scanners. Explore the full Socket Mobile catalog for complementary barcode capture infrastructure.
