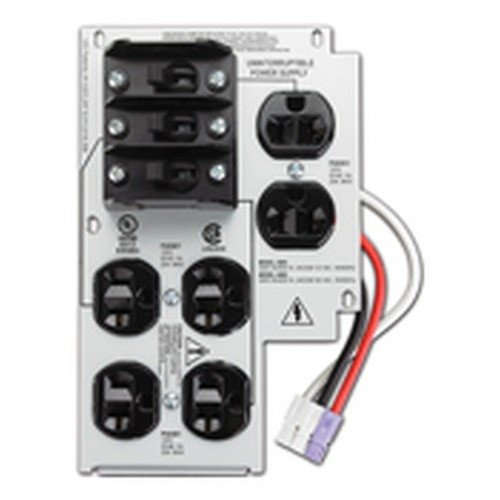

APC by Schneider Electric SURT014 Power Distribution Unit Kit

Overview

The APC by Schneider Electric SURT014 is a compact power distribution unit (PDU) kit designed to provide 120V power to sensitive equipment. It features six NEMA 5-20R outlets, suitable for higher amperage devices than standard 5-15R outlets. This unit is intended for non-rack-mountable deployments where direct power distribution to devices is needed, such as at a workbench or a specific equipment station. The SURT014 operates on a nominal input voltage of 208V and handles up to 20A maximum input current per phase, with a 50-60Hz frequency tolerance.

Compatibility

This PDU kit is compatible with APC Smart-UPS systems that support its input voltage and current requirements. It is designed to deliver power to devices requiring NEMA 5-20R receptacles. It is not designed for integration into standard 19-inch rack-mount PDU form factors due to its specific dimensions and mounting mode.

Installation Notes

The APC SURT014 is not rack-mountable and requires a suitable mounting location where its dimensions (190mm height, 121mm width, 51mm depth) can be accommodated. It requires a 208V input connection capable of supplying up to 20A. Ensure the connected circuit can handle the total load of devices plugged into the six NEMA 5-20R outlets.
