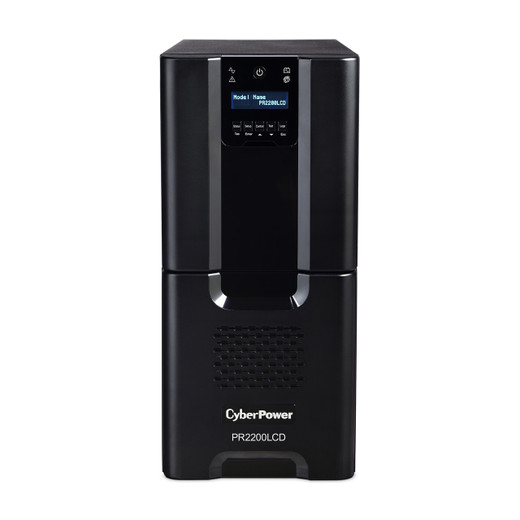

CyberPower PR2200LCD Uninterruptible Power Supply for Network Infrastructure
Overview
The CyberPower PR2200LCD is a 2200VA line-interactive tower UPS rated for 1980W continuous output. It's built for server rooms, network closets, and surveillance installations where clean sine wave power and rapid battery failover matter — think NVR systems, PoE switches, access control panels, and edge compute stacks that can't tolerate dirty power or brownouts. Ten outlets (eight NEMA 5-15R, two NEMA 5-20R) give you flexibility to plug in mixed loads; sealed lead-acid batteries keep systems alive for 8 minutes at full load or 26 minutes at half load — enough runway to either ride out a short outage or initiate an orderly shutdown.
Key Features
- 2200VA / 1980W capacity: Handles a full 24-camera NVR stack plus PoE switch and a backup internet gateway without undersizing. If your installation has four or more cameras plus redundant network gear, this capacity prevents cascading failures from a single brownout.
- Sine wave output: Pure AC waveform — not simulated or stepped — eliminates the audio hum and thermal stress that modified-sine UPS units impose on sensitive equipment like motorized PTZ heads, IP intercoms, and power-hungry managed switches. You avoid the hidden cost of premature failure in mission-critical gear.
- Automatic Voltage Regulation (AVR): Stabilizes input voltage swings between 90–132 VAC without burning battery. In areas with loose utility power — common in commercial or remote warehouse locations — the AVR cuts battery drain by 30–50% and extends overall system uptime on a single charge.
- 1030J surge protection: Protects all outlets against power transients from nearby HVAC or elevator motor starts. Real-world network closets face dozens of micro-surges daily; built-in suppression keeps your PoE equipment from needing costly replacement.
- Ten outlets with 30A input rating: The two NEMA 5-20R outlets handle 20A branch circuits — useful for high-current monitoring stations or dual-load server racks. Standard 120 VAC output ± 5% stays within tolerance for all commercial surveillance, access control, and networking equipment.
- USB, serial, SNMP, relay, and EPO connectivity: Integrates with management software and building automation systems. Hook SNMP to Nagios or Zabbix for real-time battery health and alert escalation. Relay output triggers external notifications or safe-shutdown scripts on your NVR or edge device.
- LCD panel with app monitoring: Read battery charge, load percentage, and remaining runtime on the front display. Optional smartphone app gives you SOC and event logs from anywhere — useful when you're onsite in a server room and need to see whether you have 3 minutes or 15 minutes left before graceful shutdown.
- 3-year limited warranty: Standard coverage for sealed lead-acid batteries and electronics. If a critical component fails in year 2, you're protected without paying for expensive overnight replacement.
- GreenPower UPS Bypass: When grid power is clean and stable, the PR2200LCD can switch selected outlets to utility power directly, bypassing inverter losses and extending battery life for non-critical loads. Intelligent mode selection reduces energy waste during low-demand periods.
- Operating range 32–104°F (0–40°C): Safe for climate-controlled server rooms and outdoor network cabinets (with proper enclosure). Battery chemistry performs best between 68–75°F, so cold data centers or unheated storage rooms require thermal management planning.
- 117 lb tower form factor: Compact footprint (7.7 × 17 × 20.2 in) fits under most rack shelves or beside a wall-mounted network cabinet. Not designed for true 19-inch rack mounting, but the small footprint means you can tuck it into a closet or secure it to a wall with a power strip rack.
- Sealed lead-acid battery: User-replaceable battery cartridge (sold separately) extends total system life past the 3-year mark. No exotic lithium supply chains or proprietary connector incompatibilities — any UPS shop can source a drop-in replacement.
Integration & Compatibility
The PR2200LCD speaks standard protocols: USB for direct-attached shutdown scripts, serial for legacy building management systems, SNMP for network-wide monitoring, and relay output for hardware interlocks. If your surveillance VMS runs on a Linux box, the USB port lets you trigger automated recording export or camera deactivation before battery depletion. SNMP trap support means your NOC dashboard can flag low-battery alerts 30 minutes before failover — critical for sites that depend on unattended 24/7 recording.
Runtime expectations: at half load (990W — roughly six cameras, one PoE switch, and a small NVR), you get 26 minutes of battery operation. Full load (1980W) gives only 8 minutes, so plan for either a smaller load baseline or accept that a full-capacity outage is survivable only if your network can trigger an immediate shutdown sequence. Most surveillance installations run 50–70% load on average, putting realistic runtime between 12 and 18 minutes — enough for DNS failover and cloud sync to close out recordings.
What's in the Box
The PR2200LCD ships in a full-size carton. Exact accessory count is not detailed in the source evidence, so verify the packing slip when your unit arrives. Plan to source your own extension cables if you need to position the UPS more than 6 feet from the network cabinet — standard U.S. hospital-grade power cables fit all NEMA outlets.
Frequently Asked Questions
Q: What's the warranty on the PR2200LCD?
A: CyberPower provides a 3-year limited warranty covering the inverter, battery, and all electronics. Battery replacement may carry additional labor costs after year 1 if the sealed lead-acid cartridge fails.
Q: How long will the PR2200LCD keep my NVR and PoE switch running?
A: At typical surveillance loads (50–70% of 1980W), expect 12–18 minutes of runtime. Full runtime is 8 minutes at maximum load (1980W) and 26 minutes at half load (990W). Plan shutdowns accordingly.
Q: Does the PR2200LCD require a special outlet or breaker?
A: No. It plugs into any standard 120 VAC outlet and is rated for 30A input. A 20A breaker on your utility panel is typical; if you're installing in a high-load facility, confirm the panel can sustain the 30A draw without nuisance trips during startup.
Q: Can I integrate the PR2200LCD with my surveillance system for automatic alerts?
A: Yes. The SNMP port lets you poll battery status from Nagios, Zabbix, or any SNMP-capable NMS. The relay output can trigger external notification devices. USB connectivity supports custom shutdown scripts for Linux-based VMS platforms.
Q: Is the sine wave output important for my equipment?
A: Yes, especially for motorized PTZ cameras, IP intercoms, and managed PoE switches. Sine wave output (not simulated) prevents thermal stress, audible hum, and premature component failure. Modified-sine UPS units create harmonic distortion that can shorten equipment lifespan by 20–30%.
Q: What standards does the PR2200LCD meet?
A: UL1778 safety certification and RoHS compliance. No NDAA or TAA certifications are listed for this model; if federal procurement applies to your project, confirm this unit meets your compliance requirements before purchasing.
I specify the CyberPower PR2200LCD for surveillance and network closets because the sine wave output eliminates the hidden cost of equipment degradation. Too many integrators overlook that detail — they buy a cheap modified-sine UPS, and two years later the PoE switch or PTZ motor fails prematurely because of harmonic distortion. The PR2200LCD delivers 1980W of genuine sine output, which means your NVR, cameras, and access control panels age normally, not fast-tracked.
Technical Highlights:
- 1980W sine wave at 2200VA: Full-spectrum AC output (not stepped or simulated) eliminates thermal stress on power supplies in motorized domes, PoE switches, and recording appliances. If you're protecting equipment worth $15K+, the incremental cost of sine wave UPS is negligible compared to premature replacement.
- AVR (Automatic Voltage Regulation): Compensates for utility sag and swell without inverting to battery. In aging commercial facilities or rural sites with loose voltage, AVR can cut battery consumption by 30–50% during normal operation — meaning your installed base runs longer on a single charge cycle.
- 26 minutes at half load, 8 minutes full load: Plan your shutdown sequence accordingly. At typical surveillance load (55%), you have roughly 15 minutes to trigger graceful NVR shutdown and cloud export before total battery drain. That's enough time, but requires integration with your management layer.
- SNMP + relay + USB: Three independent control paths mean you're not locked to a single monitoring platform. USB for direct Linux scripts, SNMP for Nagios/Zabbix, relay for external hardware interlocks — real flexibility for mixed-vendor environments.
Deployment Considerations:
- Sealed lead-acid battery life in this class is 3–5 years depending on temperature and charge cycles. Running the unit in climates hotter than 85°F or colder than 50°F accelerates aging — plan battery replacement on a 4-year cycle if your site is unheated or exposed to outdoor swings.
- The 30A input specification means you need a dedicated breaker or, at minimum, confirmation that your outlet panel can sustain the inrush current. Cold-start load on the UPS itself is minimal, but if you're also charging a backup battery or running a space heater, you'll overload a 15A branch.
- Runtime degrades roughly 10% per decade of age and per 10°C above 25°C. If the unit is 2 years old and running in a 90°F closet, you're actually getting closer to 20 minutes at half load, not 26 minutes as rated. Size your shutdown time conservatively.
Use the PR2200LCD when you're building a surveillance installation where network uptime matters as much as camera availability — edge NVR deployments, branch-office recording racks, or data centers where unattended shutdown is not an option. It's the right choice for setups where you can't afford to lose DNS or NTP along with power, and where your equipment is valuable enough to protect from harmonic distortion.
