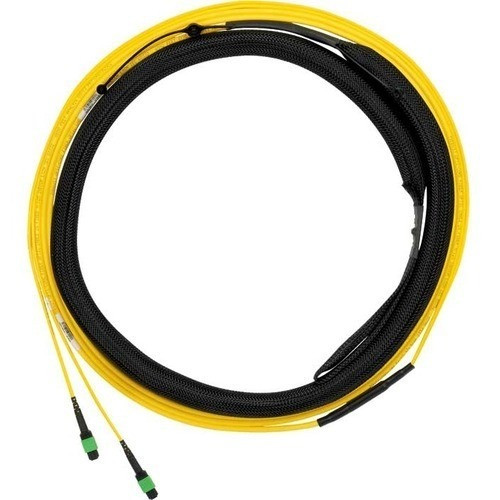

Panduit FY9TP77B001F072 QuickNet HD Flex 12-Fiber OS2 Singlemode Plenum MPO Trunk Cable

Overview

The FY9TP77B001F072 is a pre-terminated 12-fiber OS2 singlemode trunk cable assembly from Panduit's QuickNet HD Flex line, designed for structured cabling deployments in data centers, telecommunications rooms, entrance facilities, and equipment distribution areas where installation speed and long-term signal integrity matter. OS2 9/125µm singlemode glass supports runs up to 10km at 10GbE and beyond — deploy it between MDA/HDA zones in large enterprise DCs where multimode falls short on distance. The small-diameter HD Flex construction reduces bend radius and cable tray fill compared to standard MTP/MPO trunks, which directly translates to cleaner pathways and less rework when retrofitting congested trays. Plenum-rated OFNP jacket satisfies fire code in air-handling spaces — no conduit required in HVAC plenums, saving both labor and materials. Both ends terminate with PanMPO Female connectors, aligning with fiber optic infrastructure built around Panduit QuickNet HD cassettes and modules.

Compatibility

Designed for use with Panduit QuickNet HD Flex cassette and module systems that accept PanMPO Female connectors. Integrates with Panduit's HD Flex enclosures, splice-on connector cassettes, and breakout modules in the QuickNet family. Follows structured cabling infrastructure standards TIA-568.3-D, ISO/IEC 11801, and ITU-T G.652.D, meaning it mates correctly with any standards-compliant MPO-Female port — including third-party MPO patch panels and cassettes designed to those same specs. Verify connector polish type (UPC vs. APC) against your termination hardware before ordering; singlemode OS2 applications typically require APC on loss-sensitive links.

Installation Notes

OFNP plenum rating permits installation in air-handling ceiling spaces without conduit. The small-diameter HD Flex design reduces minimum bend radius — follow Panduit's published bend radius spec for this cable series to avoid microbend-induced insertion loss on OS2 glass. PanMPO Female connectors are keyed; confirm female-to-female or female-to-male orientation matches your cassette and module port layout before routing. Pre-terminated factory assembly eliminates field polishing, but end-face cleanliness is still critical — inspect and clean each MPO ferrule before mating, especially after extended storage.
