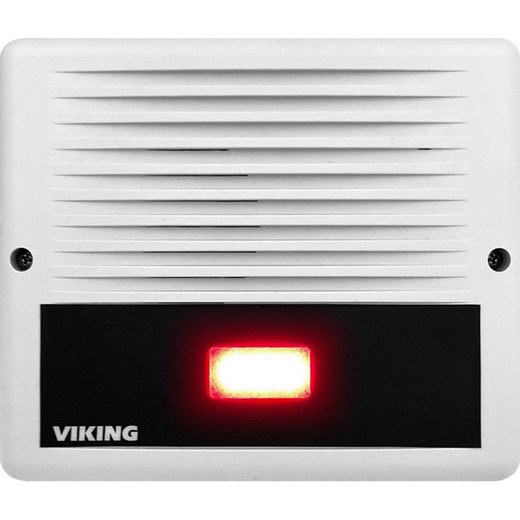

Viking Electronics SRL-1 Single Line Loud Ringer and Door Chime with Visual Ring Indication
Overview
The Viking Electronics SRL-1 is a single-line loud ringer and door chime unit designed for commercial and light-industrial environments where a standard phone ring simply won't be heard. Rated at 90 dB at one meter and equipped with bright flashing LEDs visible from over 100 feet away, the SRL-1 solves the common problem of missed calls in noisy shops, warehouses, loading docks, and open-plan offices — where ambient noise or distance from a desk phone leaves staff unaware an incoming call is waiting.
Unlike a basic extension ringer, the SRL-1 (often searched as SRL 1) combines audible and visual alerting in a single compact housing measuring 5.5" x 4.5" x 1.7". It runs on either 120V AC via the included UL listed adapter or 12V DC at 500mA, giving integrators flexibility when AC outlets aren't conveniently located. Four selectable ring tones plus doorbell tones let you match the ringer's sound to the facility — useful when multiple ringers are deployed across adjacent zones and staff need to differentiate which unit is alerting.
Explore the full Viking Electronics telephone accessories line for compatible intercoms, door phones, and call boxes that pair naturally with this unit.
Key Features
- 90 dB Sound Output at 1 Meter: Loud enough to cut through background noise in light-manufacturing or warehouse environments. At 90 dB, it's roughly equivalent to a gas lawn mower at close range — audible across a large open floor even when ambient machinery is running.
- Flashing LEDs Visible Beyond 100 Feet: The bright ring-indication LEDs provide a visual alert that carries far beyond what the ringer's audio can reach in extremely loud environments. If a worker is wearing hearing protection or is in a glass-walled area, the visual cue still registers. No wiring to a separate strobe needed.
- Four Selectable Ring Tones Plus Doorbell Tones: Choose from four traditional ringing sounds or doorbell tones to suit the deployment. In multi-zone installations, different tones at different units help staff identify which entry point or line is alerting without walking to check.
- Dual Power Input — 120V AC or 12V DC (500mA): The included UL listed 120V AC adapter handles most office or facility installs. The 12V DC option is useful where you're integrating into an existing low-voltage power rail or want a cleaner installation without a wall-wart on the outlet. At 500mA draw, this fits comfortably on most small 12V DC supplies.
- 10 Cage Clamp Screw Terminals: Cage clamp connections are more reliable in vibration-prone environments than traditional screw terminals alone — wire can't back out under vibration. Ten terminals give you enough connection points for line, power, and optional accessories without requiring punch-down blocks.
- Compact Wall-Mount Form Factor (5.5" x 4.5" x 1.7"): Slim enough to mount flush against a wall column or door frame without protruding into a traffic path. The 1.7" depth keeps it clear of most surface-mount conduit runs.
- Operating Range 32°F to 90°F, 5–95% RH Non-Condensing: Covers climate-controlled indoor commercial spaces. Note the 90°F ceiling — this unit is not rated for unconditioned outdoor or high-heat environments like equipment rooms without HVAC. Plan accordingly in summer months for facilities with intermittent cooling.
- Two-Year Limited Warranty: Viking's standard two-year coverage applies — longer than the one-year terms common on commodity accessories, which matters when you're specifying for a multi-site rollout and need predictable service life commitments.
Integration and Compatibility
The SRL-1 operates with analog single-line telephone circuits. It requires a minimum of 180ms of ringing voltage to trigger any tone — a spec worth noting when integrating with VoIP ATAs or PBX analog ports that may have configurable ring pulse timing. If your ATA or FXS port uses shorter ring bursts, verify the pulse duration in the gateway configuration before finalizing the installation.
For facilities running a telephone entry or door phone system, the SRL-1 functions as an auxiliary ringer that alerts staff at a distance from the main entry device. Pair it with a Viking door phone or entry panel to give remote workers a clear audible and visual alert when a visitor activates the entry point.
If you're deploying multiple units across a facility, review your PoE switch and low-voltage power distribution plan early — the 12V DC input option allows daisy-chaining off a centralized 12V supply, simplifying wiring runs in larger installs. For planning coverage across noisy zones, consult the facility coverage planning guide to map alert zones alongside your camera and intercom layout.
The SRL-1 connects through standard analog wiring. No network port, no IP configuration, no VMS integration required. That simplicity is an asset in facilities that want a bulletproof secondary alert that doesn't depend on network availability.
Frequently Asked Questions
Q: Will the SRL-1 work with a VoIP ATA or PBX analog port?
A: Yes, provided the ATA or FXS port generates a minimum of 180ms of ringing voltage per ring cycle. Some VoIP gateways allow ring cadence configuration — verify that the pulse duration meets this minimum before installation.
Q: Can the SRL-1 be powered without the included AC adapter?
A: Yes. The SRL-1 supports 12V DC at 500mA as an alternative to the 120V AC adapter. This allows integration into an existing low-voltage DC power rail without requiring a nearby AC outlet.
Q: How far away can the flashing LEDs be seen?
A: Viking specifies LED visibility at over 100 feet. In open-floor environments with line-of-sight, this provides effective visual alerting for staff who may be away from the phone or wearing hearing protection.
Q: What is the maximum sound output of the SRL-1?
A: The SRL-1 produces a maximum of 90 dB at 1 meter. This is suitable for moderately noisy commercial environments. In extremely loud industrial spaces, consider supplementing with a higher-output horn or strobe.
Q: What is the warranty on the SRL-1?
A: The SRL-1 carries a two-year limited warranty from Viking Electronics.
Q: Is the SRL-1 rated for outdoor installation?
A: No. The SRL-1 is rated for indoor use with an operating temperature range of 32°F to 90°F and humidity up to 95% non-condensing. It is not rated for outdoor or unconditioned environments.
The SRL-1 is the Viking unit I reach for when a customer needs a reliable secondary ringer for an analog line in a noisy commercial space. The 90 dB output is strong, but the LED visibility spec — over 100 feet — is what genuinely extends the usefulness of this device beyond what a louder-bell alternative can do in a large-footprint facility. I've specified it in light-manufacturing and distribution environments where the audio coverage is adequate but workers with hearing protection still need a reliable visual cue at the far end of a floor.
Technical Highlights:
- Dual Power Input (120V AC / 12V DC at 500mA): The 12V DC option is underutilized but valuable — it lets you tie the ringer into a centralized 12V supply alongside door controllers or access hardware, keeping the installation clean without hunting for an AC outlet at the mount point.
- 180ms Minimum Ring Voltage Requirement: This is the spec that trips integrators when pairing with VoIP ATAs. Not all FXS ports default to a 180ms or longer ring pulse — check your gateway's ring cadence settings before closing out the job. A short pulse will produce no ring at all, which looks like a wiring fault during commissioning.
- 10 Cage Clamp Screw Terminals: Cage clamp terminations hold wire more securely under vibration than open-barrel screws. In a facility where HVAC or machinery introduces any structural vibration, this reduces the risk of a terminal loosening over time and creating an intermittent fault.
Deployment Considerations:
- The 90°F operating ceiling is a real constraint in unconditioned spaces. If the unit will be mounted near a loading dock door, in an equipment room that cycles above ambient in summer, or in a southern-facing space without dedicated cooling, verify the ambient stays within spec before signing off on the location.
- The SRL-1 is an analog-only device — no IP, no network config, no ONVIF. That's a feature for resilience (no network dependency for the ringer to function) but means it can't be supervised, remotely tested, or managed through a VMS or access control platform.
For a distribution center or light-manufacturing facility running an analog or ATA-connected single-line phone at a shipping desk or receiving bay, the SRL-1 is a direct, no-configuration solution that adds audible and 100-foot visual alerting without touching the network infrastructure.
