Vertiv SC69142 Side CAR Panel for ES Enclosure Series

Overview

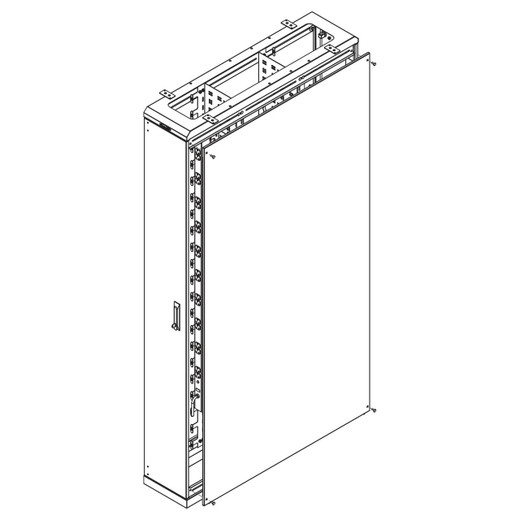

The Vertiv SC69142 is a 91-inch-tall, 6-inch-wide, 42-inch-deep Side CAR (Column Air Return) panel engineered to pair directly with Vertiv's ES-series open-frame and enclosed rack systems. If you're filling gaps between enclosures in a row deployment — whether for airflow containment, cable management routing, or simply a clean finished appearance — the SC69142 closes the 6-inch lateral space at full cabinet height without modifications. At 42 inches deep, it aligns flush with the full-depth ES enclosure footprint, so the row presents a consistent profile from front to back.

Vertiv designed the Vertiv rack and enclosure line around a modular compatibility matrix, and the SC69142 is a direct expression of that — its 91-inch height matches the tall-frame ES variants exactly, eliminating the shimming or field-cutting that plagues generic filler panels in mixed-depth rows. This makes it a practical choice for rack accessories procurement where consistency across a multi-cabinet deployment matters.

Key Features

• 91-Inch Full-Height Profile: Matches the tallest ES enclosure variants (SC129142, SC69142, SCP9142) exactly — no height mismatch, no exposed gaps at top or bottom of the row, which matters for hot-aisle/cold-aisle containment integrity.
• 6-Inch Column Width: Designed to occupy the standard inter-cabinet lateral gap in ES row deployments. That 6-inch footprint is not arbitrary — it corresponds to the structural column spacing in the ES frame family, so the panel seats without adapters.
• 42-Inch Depth Alignment: Flush with all 42-inch-depth ES enclosures in the Vertiv lineup. Mismatched depth between a side panel and the main cabinet is a common field problem that forces front-to-back shimming; the SC69142 eliminates it for the 42-inch-depth row.
• Broad ES Family Compatibility: The SC69142 is validated against multiple ES heights and depths — from 79-inch to 91-inch frames, and in both 42-inch and 48-inch depth variants via the LRB-12, LRB-12A1, LRB-12A2, LRB-24, LRB-24A1, and LRB-24A2 accessory bracket series — giving procurement teams flexibility to standardize on one data center infrastructure accessory across a mixed-height row.

Integration and Compatibility

The SC69142 is compatible with the following Vertiv ES enclosure models in the 42-inch-depth family:

• 91-inch depth-42 ES variants: SC129142, SC69142, SCP9142
• 84-inch depth-42 ES variants: SC128442, SC68442, SCP8442
• 79-inch depth-42 ES variants: SC127942, SC67942, SCP7942
• LRB bracket series (all ES sizes): LRB-12, LRB-12A1, LRB-12A2, LRB-24, LRB-24A1, LRB-24A2

For 48-inch-depth ES rows, refer to the equivalent 48-inch-depth Side CAR SKUs (SC129148, SC69148, SCP9148, and their shorter-height counterparts). Confirm your enclosure depth before ordering — the 42-inch and 48-inch Side CAR panels are not interchangeable. See the full Vertiv enclosure catalog for depth-matched options. If you are planning a new row build, a rack planning guide can help you map Side CAR positions before procurement.

Frequently Asked Questions

Q: What enclosures is the SC69142 compatible with?

A: The SC69142 is validated for use with Vertiv ES-series enclosures at 42-inch depth across three height variants: 91-inch (SC129142, SC69142, SCP9142), 84-inch (SC128442, SC68442, SCP8442), and 79-inch (SC127942, SC67942, SCP7942). It also supports all LRB-series bracket accessories (LRB-12, LRB-12A1, LRB-12A2, LRB-24, LRB-24A1, LRB-24A2).

Q: Will the SC69142 fit a 48-inch-deep ES enclosure row?

A: No. The SC69142 is dimensioned at 42 inches deep. For 48-inch-depth ES rows, you need the corresponding 48-inch-depth Side CAR SKU (e.g., SC69148 for the 91-inch height). Mixing depths in the same row will result in a front-to-back overhang or gap.

Q: What are the exact dimensions of the SC69142?

A: 91 inches high × 6 inches wide × 42 inches deep, per Vertiv's published specifications.

Q: Can the SC69142 be used with non-ES Vertiv enclosures?

A: The published compatibility matrix covers ES-series enclosures only. Compatibility with non-ES Vertiv frame families is not verified in the available specifications — confirm with Vertiv or a pre-sales engineer before applying it to a different enclosure line.

Q: Is there a shorter-height version of this Side CAR?

A: Yes. Vertiv offers equivalent Side CAR panels for 84-inch (SC68442 row) and 79-inch (SC67942 row) ES enclosures, also in 42-inch depth. Match the Side CAR height to your primary enclosure height for a flush row profile.

Jerry Tildsen

The SC69142 comes up most often on row-build projects where teams are specifying Vertiv ES enclosures and need to close the 6-inch lateral gap at full 91-inch height — exactly the scenario this panel was dimensioned for. The 42-inch depth is the spec to verify first: order the wrong depth variant and the row won't close flush, which is a real problem in hot-aisle containment builds where air bypass at the side column defeats the containment strategy.

Technical Highlights:

• 91-Inch Height Match: Aligns precisely with the tallest ES enclosure tier (SC129142, SC69142, SCP9142), eliminating the top-gap air bypass that undersized filler panels introduce in contained rows.
• 6-Inch Column Footprint: The 6-inch width corresponds to the structural column spacing native to the ES frame family — this is a fit-by-design spec, not a field-trimmed approximation.
• 42-Inch Depth: Flush with all 42-inch-depth ES variants across three height classes (91, 84, 79 inches), so a mixed-height row can still use depth-consistent Side CARs throughout, which matters for cable tray and containment panel alignment.

Deployment Considerations:

• Confirm enclosure depth before ordering — the 42-inch and 48-inch Side CAR SKUs are not interchangeable, and a depth mismatch is not correctable in the field without sourcing the correct panel.
• The published compatibility list covers ES-series only; if your row includes non-ES Vertiv frames, verify fit separately — this panel's compatibility data does not extend beyond the ES family.

The SC69142 is the right spec for data center row builds using 91-inch, 42-inch-depth Vertiv ES enclosures where gap closure, containment integrity, or a finished row appearance is a project requirement.
