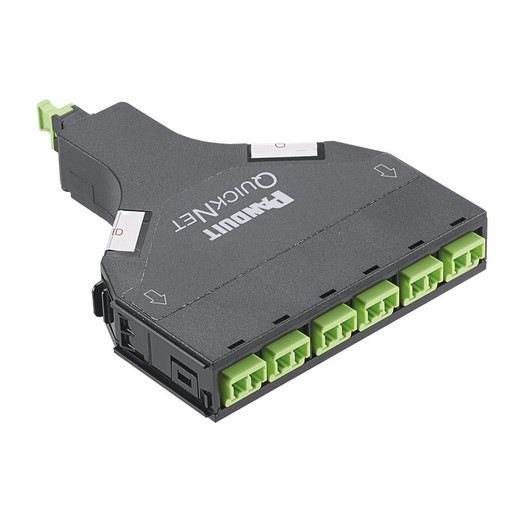

The Panduit FQWA-12-10AS is a QuickNet fiber cassette designed for high-density 40G/100G datacenter breakouts and OM5 wideband multimode deployments. It converts a single 12-fiber MPO trunk interface into six duplex LC ports using Method A (straight-through) polarity, the TIA-568 standard for backbone-to-horizontal fiber distribution. Ultra low-loss (PI ULL) factory-terminated connectors minimize insertion loss across all twelve fibers, critical for margin-sensitive 40GBASE-SR4, 100GBASE-SR4, and emerging short-wave division multiplexing (SWDM) links that leverage OM5's extended 850–953 nm operating window. Polycarbonate housing withstands repeated connector insertions in modular cassette enclosures and high-density patch panels.
OM5 fiber extends effective modal bandwidth to 3,500 MHz·km at 953 nm, enabling four-wavelength SWDM transmission that quadruples capacity over a single fiber pair compared to traditional 850 nm SR optics. This cassette's Method A polarity—where position 1 on the MPO maps to fiber A on LC duplex 1, position 2 to fiber B, and so on—aligns with the dominant TIA-568 structured cabling standard, simplifying polarity management in backbone-to-horizontal transitions. The MPO-12 male interface mates with female MPO trunk cables; the push-pull tab and key-up orientation prevent misalignment. Six LC duplex ports accept industry-standard 1.25 mm ceramic ferrule patch cords, allowing you to connect each fiber pair to separate switches, media converters, or IP endpoints without requiring MPO-interface hardware at the access layer. Ultra low-loss factory terminations typically achieve ≤0.25 dB insertion loss per mated connector pair, preserving link budget for 100-meter OM5 channels running 100GBASE-SR4 or future 200G/400G SWDM optics.
Deploy this cassette in modular QuickNet enclosures mounted in datacenter cabinets, telecommunications rooms, or secure equipment closets where MPO trunk cables from spine switches terminate and break out to LC-based leaf switches, storage nodes, or high-throughput IP camera recorder arrays. The polycarbonate housing secures fiber routing and connector retention under vibration and repeated access; the snap-in form factor allows rapid replacement during MAC (moves, adds, changes) without disrupting adjacent circuits. For 40G QSFP+ SR4 or 100G QSFP28 SR4 links, pair this 12-fiber cassette with an MPO trunk harness and four or ten LC duplex patch cords to the switch ports. In IP surveillance deployments, a single OM5 fiber pair can support 10GBASE-SR links to NVRs handling 100+ 4K camera streams, and the Method A polarity ensures transmit and receive fibers align correctly end-to-end when using straight-through MPO trunks and Type-A cassettes at both ends.
The cassette ships in a 10-pack carton for multi-floor or multi-building rollouts. Polycarbonate construction meets UL 94 V-0 flammability rating for plenum-adjacent equipment spaces. When planning fiber counts, remember that each MPO-12 trunk supports six duplex LC circuits; a 144-fiber MPO backbone can break out to 72 duplex endpoints using twelve of these cassettes. Method A polarity eliminates the need for crossover adapters or polarity-reversing patch cords, reducing training overhead and troubleshooting complexity duringafter-hours maintenance windows.
