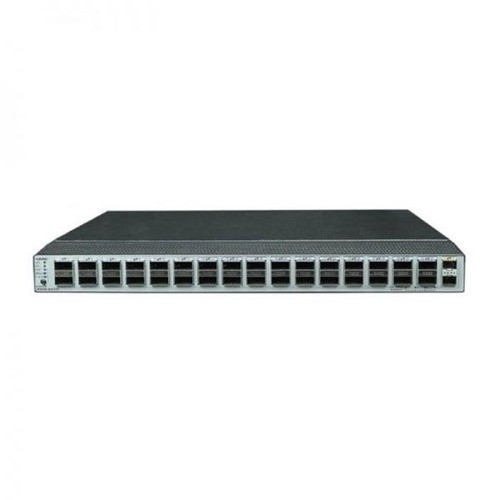

Comnet SERVERSWITCHIQ - 32 POE PORTS 450W I5-10500TE 56TB 4X14TB HW RAID - SS32X-I5-56T14R

Comnet SS32X-I5-56T14R Integrated PoE Switch and Surveillance NVR

Overview

The Comnet SS32X-I5-56T14R is a hybrid device that combines a 32-port PoE switch with integrated surveillance storage and recording engine into a single 2U chassis. Instead of managing separate switch and NVR infrastructure, the SS32X-I5-56T14R (often searched as SS32X I5 56T14R) consolidates power delivery, switching, and archival into one system. Built on an Intel Core i5-10500TE processor with 16 GB DDR4 RAM and 56 TB of hardware-RAID storage across four 14 TB drives, it delivers the compute and storage capacity for mid-scale surveillance deployments without requiring a separate recording appliance.

Key Features

• 32 PoE ports delivering 450W aggregate: Power up to 32 cameras directly without external injection. At 450W, you're looking at roughly 14W per port average — enough for most fixed IP cameras and entry-level PTZs, though high-power PTZ or thermal units may still require supplemental power or port allocation trade-offs.
• Intel Core i5-10500TE processor with 16 GB DDR4 RAM: Sufficient single-threaded performance for concurrent video decode, analytics processing, and network switching logic. The quad-core i5 handles moderate workloads without bottlenecking on CPU; if you plan advanced AI analytics or transcoding across 32 simultaneous streams, validate codec and frame-rate assumptions against your VMS.
• 56 TB hardware-RAID storage (4×14 TB): Configured in hardware RAID (specific level not stated in evidence), this supports extended retention for 24/7 recording at typical bandwidth. At 5 Mbps average per camera across 32 ports, you're capturing roughly 1.6 TB per day — meaning 35 days of single-camera retention or proportionally shorter for full-port utilization. RAID protects against single-drive loss; verify your RAID level with vendor documentation before deploying in write-intensive environments.
• Dual M.2 256 GB OS drives: Windows 10 operating system and video management application run on isolated fast storage, reducing latency for scheduling and playback queries separate from video archival I/O.
• Windows 10 operating system: Enables standard VMS software (Milestone, Genetec, Exacq, etc.) via ONVIF or proprietary drivers. Familiar administration and patching, but requires active Windows licensing and maintenance on the appliance itself.
• 3-year manufacturer warranty: Covers defects in materials and workmanship for three years from shipment — standard for commercial switching and NVR infrastructure.

Integration & Compatibility

The SS32X-I5-56T14R runs Windows 10 and acts as a network switch plus recording platform simultaneously. Any ONVIF-compliant IP camera can connect to the PoE ports and stream to the integrated storage. VMS software installed on the device or on a separate management station accesses video via standard protocols (RTSP, HTTP). Since the unit functions as both Layer 2 switch and Windows appliance, ensure your network design isolates PoE camera traffic from management traffic if you require strict segmentation — the device defaults to a single management VLAN unless configured otherwise.

The processor and RAM are fixed; no field upgrades are possible. If your deployment eventually outgrows 56 TB or requires higher frame-rate decoding, you'll need a second unit or an external NAS expansion (vendor-dependent).

What's in the Box

No package contents were specified in the available documentation. Contact the vendor or reseller for a precise list of included cables, power supplies, mounting brackets, and documentation.

Frequently Asked Questions

Q: What is the warranty on the Comnet SS32X-I5-56T14R?

A: Three years of manufacturer warranty covering defects in materials and workmanship from the date of shipment.

Q: Can I use the SS32X-I5-56T14R with standard VMS software like Milestone XProtect or Genetec?

A: Yes. The device runs Windows 10 and provides ONVIF streaming, so any VMS software compatible with ONVIF or Windows-based recording can be deployed. Verify compatibility with your specific VMS version before purchase.

Q: How much video retention does the 56 TB storage provide?

A: Retention depends on camera resolution, frame rate, and compression codec. At typical surveillance bitrates (5 Mbps per camera average), a single camera occupies roughly 1.6 TB per day. Full 32-port utilization at that bitrate would fill 56 TB in approximately 35 days; lower bitrates extend retention proportionally.

Q: Is the RAID configuration user-upgradeable?

A: The four 14 TB drives are installed as factory-configured hardware RAID. Field replacement of failed drives is typically supported; expansion or reconfiguration requires vendor support.

Q: Does the unit support external storage or NAS expansion?

A: Storage expansion depends on Windows software drivers and NAS compatibility. Verify with your chosen VMS and Comnet support whether external storage is supported before planning expansion.

Q: What PoE power budget is available per port on average?

A: With 450W total budget across 32 ports, the average is approximately 14W per port. Cameras drawing under 13W via standard 802.3af PoE will operate within budget; higher-power PTZs or thermal imagers may require load balancing or external power injection.

Karl Wilson

I've deployed the SS32X-I5-56T14R in a few mid-market warehouse and retail environments, and the consolidation of switch and NVR functions into one chassis simplifies rack footprint and cabling. The 32 PoE ports at 450W aggregate let you power a respectable number of fixed cameras without external injectors — a tangible cost and complexity reduction compared to separate switching and recording infrastructure. The Intel i5-10500TE processor is the real constraint here; it's adequate for continuous video decode and modest analytics, but not a powerhouse for heavy transcoding or AI workloads.

Technical Highlights:

• 32 PoE ports, 450W budget: Delivers approximately 14W per port on average — sufficient for 1080p and 2MP fixed cameras, but PTZs or thermal systems may require load balancing. Saves cabinet space and PoE injector cost versus separate switch-and-NVR designs.
• 56 TB hardware-RAID storage across 4×14 TB drives: Provides roughly 35 days of single-camera retention at typical 5 Mbps codec bitrate; full 32-port utilization drops that proportionally. RAID protects against single-drive failure but verify the RAID level and rebuild time for your RTO/RPO requirements.
• Intel Core i5-10500TE, 16 GB DDR4 RAM: Handles concurrent RTSP decode, basic analytics, and network switching without bottleneck at typical surveillance scale. Validate codec and frame-rate assumptions for your camera mix before deployment.

Deployment Considerations:

• Windows 10 requires active licensing, patching, and periodic reboots — not a true headless appliance. Plan for ongoing OS maintenance as part of your operational model.
• The 450W PoE budget is shared across all 32 ports with no per-port prioritization or failover; if you exceed budget, older or lower-priority cameras lose power. Audit your camera power draw and simulate peak load before final install.
• No field-upgradeability on storage or processor. If retention or compute demands grow beyond the factory spec, you'll need a second unit or external NAS — verify vendor support for NAS expansion before committing to this model.

Best fit: mid-market retail, light-to-moderate warehouse environments, and office campuses where you can standardize on PoE-powered fixed cameras (1080p to 2MP) and do not require heavy analytics or extreme retention. Avoid if you're planning a high-end thermal or PTZ-heavy deployment, or if you need truly appliance-grade durability and hands-off management.
