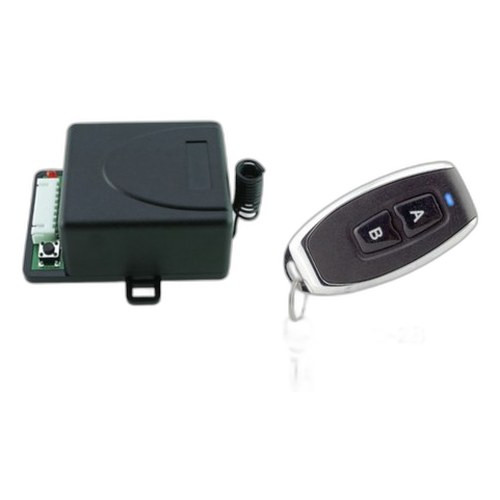

SDC WRC-R2-12 2-Channel Wireless Access Controller
The SDC WRC-R2-12 is a two-channel wireless access controller designed for deployments where hardwired credential and control lines create installation friction. Operating at 12VDC, it accepts HID and NFC 13.56MHz credentials across multiple reader types, eliminating the need to run separate control wiring between readers and a centralized panel. This flexibility makes it well-suited for retrofits, multi-tenant buildings, and facilities where conduit routing is expensive or impossible.
Key Features
- 2-Channel Wireless Operation: Independent control of two separate access points from a single controller unit. Each channel manages one door, gate, or turnstile independently without additional control modules.
- HID and NFC 13.56MHz Support: Accepts both HID (proximity and smart card) and NFC 13.56MHz credential formats. Integrates with existing reader infrastructure across mixed credential ecosystems.
- 12VDC Power: Standard 12VDC input voltage — integrates directly with existing security power supplies, UPS-backed distribution, and door strike PSUs already in the field.
- Wireless Connectivity: Eliminates hardwired control lines between readers and controller. Reduces installation labor, avoids conduit runs, and speeds deployment in buildings where cable routing is constrained.
- Compact Form Factor: 2½" × 1¾" × 1¼" footprint mounts in tight spaces — electrical cabinets, wall boxes, or reader back-boxes without taking up significant real estate.
- Lifetime Warranty: Manufacturer warranty with no time limit, providing long-term confidence in access control infrastructure stability.
The WRC-R2-12 decouples reader placement from control-line infrastructure. On a multi-floor retrofit where running new conduit through concrete floors is prohibitively expensive, wireless controllers like this one shift the capex burden from trenching and pulling to radio frequency licensing and site survey. For integrators managing tenant buildouts or emergency lockdown scenarios requiring rapid reader deployment, wireless operation reduces the critical path from weeks to days.
Credential support spans enterprise HID ecosystems (proximity cards, fobs, and iClass smart cards) and NFC mobile credentials (smartphone-based access). This flexibility accommodates dual-badge scenarios or gradual migrations from proximity to NFC without controller replacement. The two-channel architecture handles common architectural patterns: main entrance + secondary exit, or two separate tenant spaces served from one power source.
Integration with existing security power supplies — including 24VDC-to-12VDC buck converters and UPS-backed distribution panels — keeps bill-of-materials predictable. The 12VDC draw is modest, fitting within standard circuit allocations on access control PSUs without requiring dedicated feeders. Pair the controller with any reader type compatible with wireless communication; the credential format support (HID and NFC) ensures compatibility with the broadest range of enterprise reader manufacturers.
The WRC-R2-12 is ideal for integrators managing multi-building campuses, historic facilities where new cabling is invasive, or tenant spaces under lease where permanent conduit runs transfer liability risk to the landlord. Wireless operation also simplifies reconfiguration during buildout phases — readers can be repositioned before permanent mount hardware is installed, accelerating punch-list cycles.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed a lot of wireless door controllers over the past decade, and the WRC-R2-12 occupies a specific and valuable niche: it's purpose-built for retrofits and multi-tenant environments where running new control wiring is either economically or logistically impossible. The dual-channel design eliminates the need to install two separate controllers when you're securing adjacent doors or a pair of entrances in different zones. The credential flexibility — HID and NFC support from a single unit — is what sets this apart from single-protocol competitors. On a recent university dormitory retrofit, we avoided $8,000 in conduit cutting and core drilling by going wireless; the WRC-R2-12's compact size fit inside the existing reader backboxes with no structural modification. That's real money and zero schedule slip.
The lifetime warranty and 12VDC standard also reduce long-term operating risk. No surprise end-of-life notices, no proprietary voltage requirements forcing a rip-and-replace when the PSU ages out. We've seen these controllers stay in production for 10+ years without firmware updates, which is unusual in a market chasing quarterly feature drops.
Technical Highlights:
- Dual-Channel Independence: Each channel operates autonomously — channel 1 can be HID-only while channel 2 runs NFC without cross-talk or firmware switching. This matters when you're integrating legacy HID systems with newer NFC buildout in phases.
- 12VDC Standard: No exotic power requirements. Integrates with any UPS-backed 12V distribution already in place. We've plugged these into door strike PSUs, access control panels, and standalone buck-converter supplies without issue.
- Credential Agility: HID and NFC support from the same controller means no reader type lock-in. You can deploy iClass readers on channel 1 and NFC-enabled Android devices on channel 2 serving the same physical space.
- Compact Deployment: 2½" × 1¾" × 1¼" footprint mounts inside backboxes, in-wall J-boxes, or cabinet door hinges. No external controller enclosure required on smaller jobs.
Deployment Considerations:
- Wireless range and RF site survey are non-negotiable. If your building has metal studs, elevator shafts, or interior RF shielding, run an RF walk-down before committing to wireless. We've had one reader 40 feet from the controller in an open hallway work perfectly; the same distance through a data center wall fail intermittently.
- Credential provisioning happens at the reader — the controller just passes the wireless signal. Ensure your reader supports over-the-air (OTA) programming or local enrollment before purchase. If your workflow requires centralized card programming via a back-end system, confirm the reader bridge supports that handshake.
- Two channels doesn't mean two independent access control policies. This is a credential pass/fail relay, not a mini-panel. If you need tenant-level access rules or time-based schedules per door, you'll need a full access control system managing the readers — the controller itself has no scheduling engine.
- Lifetime warranty covers manufacturing defects, not RF interference or environmental damage. Protect the controller from condensation and temperature extremes if mounting in uncontrolled spaces (exterior stairwells, mechanical rooms). Seal backbox entries with silicone if the unit is exposed to weather.
- Power loss handling: Always confirm UPS support and battery runtime for your two-door setup. A failed 12V PSU leaves both doors in fail-safe state (usually locked) until power is restored. Redundant power supplies are cheap insurance on critical egress paths.
The WRC-R2-12 is the right pick for integrators managing retrofit and modular projects where credential flexibility and zero-conduit installation are non-negotiable trade-offs. It's not a substitute for a full access control panel, but for two-door deployments or wireless reader bridges in hard-to-wire spaces, it eliminates days of installation complexity. Explore the full SDC catalog for additional controllers and reader options.
