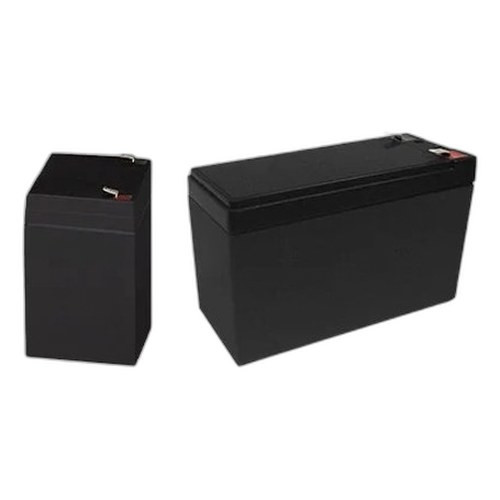

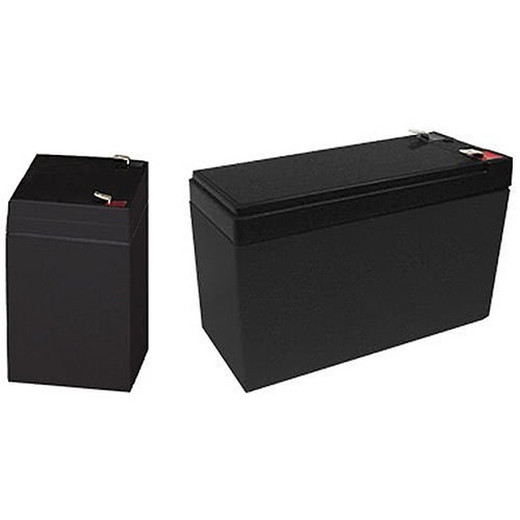

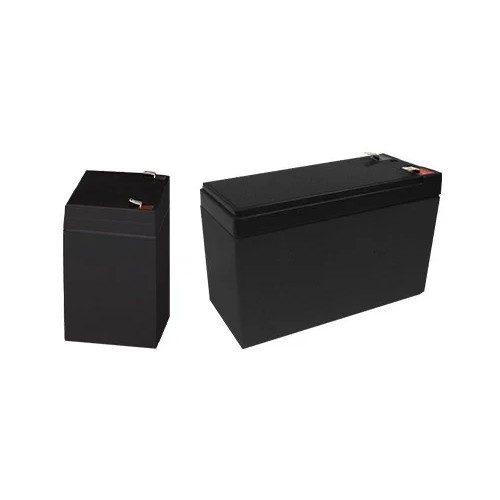

SDC RB12V4 12V/4AH Backup Battery Module
The RB12V4 is a 12-volt, 4-amp-hour backup battery designed to maintain power to access control systems during utility outages. Unlike relying solely on line power, this module ensures your door controllers and readers stay operational when mains power fails—a critical requirement in facilities where uninterrupted access control is non-negotiable for security and compliance.
Key Features
- 12-Volt, 4-Amp-Hour Capacity: Provides sufficient stored energy to sustain single and multi-door access control installations through temporary outages. The 4Ah capacity translates to real runtime depending on your system's current draw—calculate expected hold-up time by dividing 4Ah by your controller's operating current in amps.
- OSDP Protocol Compatibility: Integrates with SDC door control systems that support Open Supervised Device Protocol, ensuring standardized communication with your controllers and eliminating proprietary lock-in.
- 24VDC System Operation: Designed for typical access control system voltage, so it pairs directly with standard panel configurations without buck-boost converters or additional regulation. This simplifies wiring and reduces failure points.
- NFC and Proximity Reader Support: Works with both 13.56MHz NFC technology and traditional proximity card readers, letting you keep your existing reader infrastructure operational during power loss.
- Emergency Power Continuity: Maintains door security functions—locking/unlocking logic, reader polling, and controller processing—so access rules remain enforced. No dangling doors or lost audit trails during an outage.
- Backup Supply for Redundancy Scenarios: Suitable where temporary power redundancy is required but permanent UPS systems aren't justified. Typical deployment: small-to-medium facilities, secondary doors, or as a failsafe layer below a primary UPS.
Integration & Compatibility
The RB12V4 is a wired backup module compatible with SDC access control controllers that implement OSDP communication. It operates at the standard 24VDC system voltage found in most commercial access control installations. Because it is a power supply backup component, not a controller or reader itself, integration is straightforward: mount it near your access control panel, connect it to the panel's backup power input terminals, and verify the battery charges during normal operation.
This module is not suitable for replacing a full-scale UPS or generator system. It provides temporary hold-up power—typically minutes, not hours, depending on system load. For longer outage protection or higher-power loads (such as multiple readers, mag locks, or networked controllers drawing significant current), evaluate a dedicated access control power supply or UPS solution.
When to Choose a Different Approach
If your facility requires hours of backup power, high-current door locks with solenoids, or simultaneous operation of multiple access points during an outage, the RB12V4 alone will not suffice. In those cases, consider pairing it with a larger battery module, or evaluate a dedicated UPS system designed for access control. If your environment demands compliance with specific power-hold standards (e.g., NFPA, ADA, or local fire codes), verify that the 4Ah capacity and discharge curve meet your regulatory requirements before deployment.
Frequently Asked Questions
Q: How long will the RB12V4 keep my access control system running during a power outage?
A: Runtime depends on your system's current draw. Divide the 4Ah capacity by your controller's operating current (in amps) to estimate hold-up time. For example, a 2A controller draw yields approximately 2 hours of backup; a 1A draw yields 4 hours. Consult your controller's datasheet for actual current consumption.
Q: Can I use the RB12V4 with non-SDC controllers?
A: The RB12V4 is designed for SDC systems that support OSDP protocol and 24VDC operation. Compatibility with other manufacturers' controllers is not documented. Contact the controller manufacturer to confirm voltage and communication compatibility before ordering.
Q: Does the RB12V4 include a charger or charging circuit?
A: The RB12V4 is a battery module designed to integrate with an access control panel that includes charging circuitry. Verify that your panel's power supply can charge the battery during normal operation; most access control panels include this function built-in.
Q: How often should I replace the RB12V4?
A: Lead-acid and lithium battery modules typically have 3–5 year service lives, depending on temperature cycling, charge cycles, and usage. Consult the datasheet for specific longevity data and maintenance intervals.
Q: Is the RB12V4 suitable for outdoor door controllers?
A: The RB12V4 itself is a backup power module and is typically mounted indoors near the control panel. Outdoor controllers connected to the panel can draw backup power through the panel's wiring, but the battery module does not provide environmental sealing for outdoor installation.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The RB12V4 solves a specific problem: keeping your access control logic alive when the power cuts. I've seen too many installations where a brief outage cascades into a full re-provisioning nightmare because the controllers lost state. The 4Ah capacity is modest but appropriate for most small-to-medium single or multi-door setups—the key is knowing your load and doing the math upfront.
Technical Highlights:
- 4-Amp-Hour Capacity: Sufficient for 2–4 hours of hold-up on a 1–2A controller draw. Don't assume 4 hours across the board—your actual runtime is load-dependent. A 500mA draw buys you 8 hours; a 3A draw buys 1.3 hours. This is why site surveys matter.
- OSDP and 24VDC Integration: OSDP is the open standard for access control, so you're not locked into proprietary SDC firmware or messaging. 24VDC is the industry norm for panels, and direct compatibility means fewer voltage converters and lower installation complexity.
- NFC and Proximity Reader Support: The module doesn't care whether your readers are NFC or proximity—the controller handles reader protocol. The battery backs up the controller's power rail, so readers keep working as long as your panel's circuits stay live.
Deployment Considerations:
- Battery capacity is modest. If you're protecting a high-traffic entrance with multiple solenoid locks or a busy gateway, the RB12V4 alone won't sustain the load for long. Pair it with a proper UPS for critical applications or use it as a complement to a generator system.
- Verify that your access control panel includes charging circuitry. If the panel power supply doesn't actively charge the battery during normal operation, the RB12V4 will discharge over time and be useless in an outage. Test charging voltage (typically 13.8V for lead-acid, 14.4V+ for lithium) before relying on it for emergency operation.
- Cold-weather degradation is real. Battery capacity drops at low temperatures. If your outdoor readers or enclosures sit in unheated spaces, expect shorter hold-up times in winter.
Position the RB12V4 as a safety net for brief outages on small-to-medium facilities, or as a backup layer under a primary UPS on critical installations. It's not an overkill solution, and it's not a complete replacement for robust power architecture—it fills the gap between zero redundancy and a full-scale battery system.
