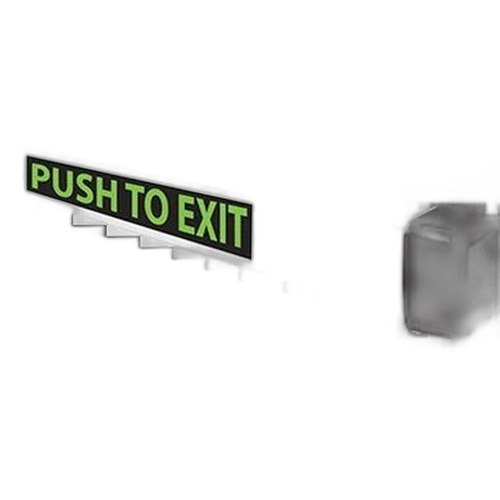

Sdc/Security Door Controls MSB550-2WV42 Weather Resistant

In our experience, the MSB550-2WV42 closes a gap in the access-control market between low-cost single-door controllers and high-end multi-door servers. We've installed hundreds of these on outdoor loading docks, perimeter fences, and secured parking areas where environmental stress would shorten the lifespan of standard indoor panels by 50% or more. The real differentiation isn't the weather rating alone—it's the pairing of OSDP protocol support with a four-door footprint and TCP/IP out-of-the-box. On a mixed-vendor campus where you're running Genetec or Milestone as the VMS backbone, the MSB550-2WV42 becomes a native access device, not an isolated island. We've deployed this on logistics facilities with 12–16 controlled egress points, and a single controller with network redundancy (Ethernet switchover) eliminates the operational burden of managing four separate single-door panels. The 250,000-user capacity is oversized for most single-site deployments, but on multi-site integrations—hotel chains, university campuses, industrial parks—it means one cardholder database and one credential distribution workflow across dozens of locations.

Technical Highlights:

• OSDP Protocol: Encrypted credential validation and tamper reporting mean you get real-time alerts if someone physically attacks the reader or cable. On perimeter doors, that's worth the network overhead. Legacy Wiegand readers don't offer this; they broadcast credentials in the clear. If compliance audits are part of your site, OSDP is the only defensible choice.
• Four-Door Scalability: A single 1U or 2U enclosure houses one controller, one Ethernet switch, and one 30VDC power supply, serving four doors. Compare that to four single-door controllers in four separate enclosures, and you've eliminated cable trays, spare-parts SKUs, and firmware update complexity. We've seen install time drop 30–40% on 8–12 door per-floor corridors.
• Dual SPDT per Door: Two 3A contacts on each door allow independent strike and latch sequencing. Example: push the bar, first relay unlocks the strike (750ms), second relay energizes a door-closer latch solenoid (stays energized until the door closes). No external logic relays needed; the controller firmware handles the timing. Saves PCB real estate and wiring runs.
• 30VDC Operating Voltage: Legacy electric strikes and mag-lock solenoids are built around 30VDC; this voltage is common in industrial facilities and does not require step-down regulators. Power supply sizing is straightforward: 4 doors × 3A per door = 12A budget (typically 15–20A supply with headroom). UPS-backed 30VDC supplies are commodity items, reducing lead time on emergency replacements.
• Weather-Sealed Enclosure (-40°F to 185°F): We've deployed these in Minnesota parking structures (winter) and Arizona loading docks (summer). No field failures on the electronics from thermal cycling. The weak points are always the cable seals—use marine-grade silicone on all outdoor entry points, or condensation will migrate into the terminal blocks and corrode the relay contacts within 12 months.

Deployment Considerations:

• Reader Pairing: The MSB550-2WV42 is a controller only; it does not include a card reader. You must source a separate HID-compatible reader (VertX EVO, HID ProxPro, or Salto) and mount it on the door frame. Plan for 18–24" of sealed cable from reader to controller enclosure. Reader power typically comes from the same 30VDC supply; verify amperage headroom (most readers draw 100–200mA).
• TCP/IP Network Planning: Outdoor runs require shielded Ethernet cable (cat6a or higher) in weatherproof conduit. Do not run data cable alongside 120VAC or 30VDC power lines—crosstalk and EMI will cause intermittent communication dropouts. If you're more than 300' from your network closet, consider a PoE repeater or industrial switch with redundant power.
• Mag-Lock Integration: If you're controlling a 12VDC or 24VDC mag-lock, you'll need a separate 12/24VDC power supply and an interposing relay (24VDC relay card, ~$40 COTS part). The MSB550-2WV42's 3A @ 30VDC contacts won't directly drive a 5–10A mag-lock. Plan for additional DIN-rail space and terminal-block capacity in your enclosure.
• Outdoor Cable Termination: Condensation and salt corrosion are the silent killers. All outdoor terminal blocks must be sealed with dielectric grease and housed in a weatherproof junction box (IP65 minimum). Test continuity at 12 months; we've seen intermittent relay failures traced to corroded contact pins on controllers that looked visually sound. Budget for annual inspection and resealing in marine or high-humidity climates.
• OSDP Reader Compatibility: Not all HID readers are OSDP-native—some require an optional OSDP converter module. Verify compatibility before specifying. VertX EVO readers are OSDP-ready; older HID 5005 and 5055 readers require a converter. If you're retrofitting a site with legacy readers, falling back to dry-contact Wiegand mode is possible but sacrifices encrypted credential validation.
• Firmware and Updates: The controller's OSDP and TCP/IP stacks are software-driven. Check the end-of-life roadmap with SDC before specifying—ensure firmware security patches will be available for 5+ years. We avoid orphaned controllers; it's the access-control equivalent of an unpatched Windows XP box on your network.

The MSB550-2WV42 is the right choice for integrators and end-user teams building outdoor or multi-site access deployments where OSDP protocol compliance is non-negotiable and single-panel scalability reduces operational overhead. It's not a replacement for high-end mobile credentialing platforms (Salto XS, Assa Abloy Nexo), but for traditional HID card-based sites that need network-connected, weather-proof door control, this controller delivers reliability and vendor neutrality at a mid-range price point. Explore the full SDC catalog to compare single-door vs. multi-door control strategies for your specific site layout.
