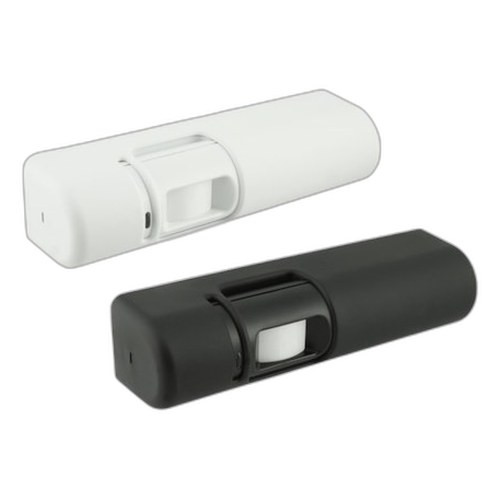

SDC MD-31DOW Motion Detector Controller
Overview
The SDC MD-31DOW is a wired motion detector-based access control controller designed for multi-door installations where motion-triggered access logic is a requirement. Unlike traditional card-reader-only systems, the MD-31DOW combines credential management with motion detection across four independent door zones — useful when you need to restrict access based on both cardholder identity and occupancy status.
Key Features
- 4-Door Zone Management: The MD-31DOW controls up to four independent door zones simultaneously. This means you can manage separate access policies for different entry points (e.g., warehouse loading dock, employee entrance, executive corridor, server room) without requiring separate controllers — reducing panel real estate and simplifying wiring.
- 250,000 User Credential Capacity: Stores up to 250,000 credentials locally. For mid-sized warehouses or multi-building campuses, this eliminates constant server polling for credential validation and keeps access decisions fast during network latency or outages.
- OSDP and TCP/IP Dual Communication: Supports both Open Supervised Device Protocol (OSDP) for readers and TCP/IP for system integration. This flexibility means you can deploy the MD-31DOW alongside legacy OSDP infrastructure (common in older installations) or modern IP-based access control platforms like Genetec, Milestone, or Salto — no protocol rip-and-replace needed.
- HID Credential Format Support: Native compatibility with HID Prox, iClass, and Mobile Access formats. If your site already operates HID readers, the MD-31DOW integrates without format translation overhead.
- 30VDC Operation: Runs on standard 30VDC access control power supplies, the industry baseline. No exotic power requirements — any commercial-grade access control UPS and supply will support it. Simplifies redundancy planning.
- Motion-Triggered Logic: The controller responds to motion detector input as a gating condition for access decisions. Typical use: allow cardholder entry only if motion is detected within a predefined window, preventing unauthorized badge sharing or tailgating when the space should be unoccupied.
Integration & Compatibility
Deploy the MD-31DOW in any access control system that speaks OSDP or TCP/IP. Integrates with HID credential readers and standard motion sensors. Compatible with Windows-based access management platforms and network video recorders (NVRs) that log access events. Wired connectivity ensures no RF interference — critical in high-density industrial environments like warehouses with metal racking or RF-rich production floors.
Deployment Considerations
The MD-31DOW (often searched as MD 31DOW) excels in hybrid access scenarios — where motion + credential verification improves security without introducing excessive false positives. Typical deployments: secured storage areas, climate-controlled vaults, or facilities where after-hours occupancy must match badge activity. Confirm motion detector sensor compatibility with the controller before specifying; motion input triggering behavior should be validated during commission.
Frequently Asked Questions
Q: Can the MD-31DOW work with non-HID readers?
A: The MD-31DOW is specified for HID credential formats. If you need to deploy Salto, ASSA ABLOY, or proprietary readers, consult the controller datasheet for reader protocol support before purchase.
Q: Does the MD-31DOW require a network connection to operate?
A: No. The MD-31DOW stores 250,000 credentials locally and can make access decisions offline. TCP/IP is used for integration with a management platform, but the controller will continue to authenticate and control doors if the network drops.
Q: What is the typical response time from motion detection to door unlock?
A: Response time depends on motion sensor configuration and door strike wiring; consult the controller's technical documentation and validate timing during site acceptance testing.
Q: Can I daisy-chain multiple MD-31DOWs?
A: Yes, via TCP/IP or OSDP. Multiple controllers can operate under a single access management platform, each managing up to 4 doors.
Q: Is the MD-31DOW suitable for outdoor-mounted motion detectors?
A: The controller itself is a wired device for indoor panel mounting. Ensure any outdoor motion sensors you pair with it have appropriate IP and temperature ratings for your climate zone.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The MD-31DOW fills a genuine gap in mid-scale access deployments where vanilla card readers aren't enough. Four independent door zones from a single wired controller beats panelboard sprawl, and the 250,000-credential local cache means you don't lose access validation every time the network hiccups — that alone justifies the investment if you manage a distributed warehouse or multi-story office with unreliable Ethernet.
Technical Highlights:
- Dual-Protocol Stack (OSDP + TCP/IP): Lets you integrate MD-31DOW into legacy OSDP ecosystems or swap it into modern IP-based platforms without hardware replacement. That flexibility is rare and translates directly to lower lifecycle costs when you're migrating from proprietary to standards-based access control.
- Four Zones from One Controller: Eliminates the need for separate controllers per door. Reduces wiring complexity, shrinks your panel footprint, and cuts commission time — especially on retrofit installs where conduit is already tight.
- HID Format Native Support: No format adapter cards or translation overhead. If your site runs HID infrastructure, the MD-31DOW plugs in without protocol wizardry.
Deployment Considerations:
- Confirm motion sensor input compatibility during design phase. The controller expects specific signal levels and timing — don't assume all PIR or microwave detectors will work; validate pinouts and contact ratings before wiring.
- Watch credential overflow: 250,000 sounds large, but at 1,000+ active cardholders per zone, you're near capacity. Plan credential purging or secondary controllers before you hit the ceiling.
Best fit: mid-sized warehouses, multi-building campuses, or retrofit projects where four doors share one panel and motion logic prevents after-hours tailgating. If you're a single-door shop or need 16+ zones, look at a higher-capacity access panel instead.
