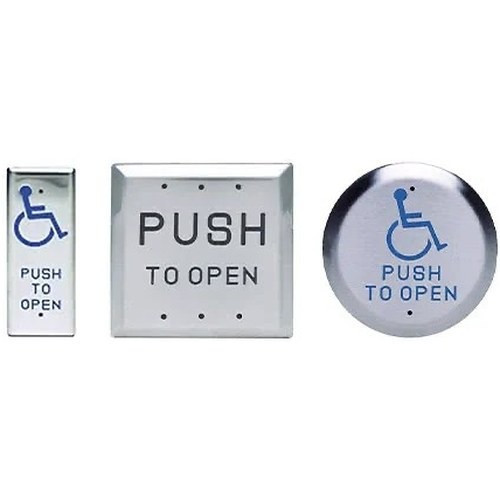

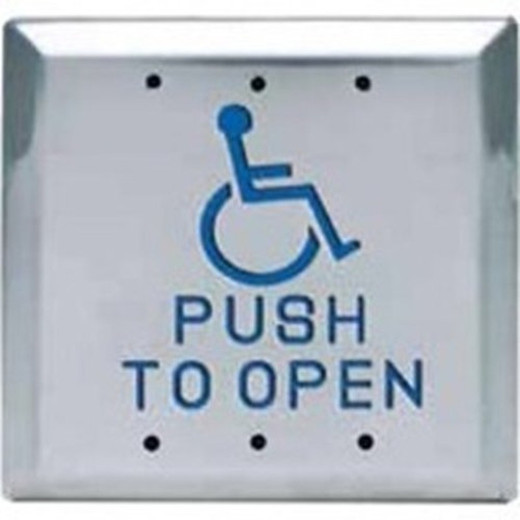

SDC 482A4U Square Push Plate Switch SPDT Controller
Overview
The SDC 482A4U is a wired push plate switch controller designed for multi-door access control deployments in enterprise, retail, healthcare, and institutional environments. Operating at 28VDC with SPDT (single-pole, double-throw) relay logic, it communicates via OSDP and TCP/IP protocols to integrate into centralized physical security systems. The 482A4U can manage up to 63 doors and support 250,000 user credentials, making it suitable for mid-to-large-scale installations where centralized credential management and networked door control are critical.
Key Features
- SPDT Relay Logic: Single-pole, double-throw switching handles both unlock and controlled-access scenarios — useful if you need to energize a strike or de-energize a mag lock depending on credential type or time-based rules.
- 28VDC Operating Voltage: Standard low-voltage design reduces shock risk during installation and maintenance. Plan for a dedicated 28VDC power supply; does not run on PoE.
- OSDP Protocol Support: Open Supervised Device Protocol ensures vendor-neutral communication with major access control platforms and integrators' preferred access control systems — no proprietary gateway required.
- TCP/IP Networking: Direct IP connectivity allows the 482A4U to report door status, credential attempts, and relay state to a central security management console — critical for audit trails and real-time alerts.
- Multi-Credential Support: Compatible with DESFire, MIFARE, 13.56MHz NFC, and 125kHz Prox credentials. If your facility runs mixed card technologies (legacy proximity alongside modern NFC), the 482A4U handles them without requiring separate readers.
- Capacity for Large Deployments: 250,000 user credentials and 63-door management eliminate the need for multiple controllers in mid-sized campuses or office parks — simplifies architecture and reduces provisioning overhead.
Integration & Compatibility
The 482A4U integrates with any OSDP-compliant access control platform or VMS that supports wired door controllers. Its square push plate form factor fits standard electrical box cutouts, and the SPDT relay can interface with both electrified strikes and magnetic locks. TCP/IP connectivity means the device reports to a central management console in real time — no periodic syncing or manual audit log retrieval needed.
For deployments mixing reader technologies, the credential compatibility (DESFire, MIFARE, NFC, Prox) ensures the 482A4U works across existing card infrastructures without forced upgrades. This reduces total cost of ownership when retrofitting older facilities or merging security systems post-acquisition.
Deployment Considerations
Plan for a dedicated 28VDC power supply; the 482A4U does not draw power from Ethernet or a PoE source. Ensure your electrical infrastructure can safely deliver 28VDC to the controller and downstream strike/lock hardware. In multi-building installations, verify that OSDP/TCP-IP network connectivity exists at all door locations — wireless bridge solutions may add latency or complexity if wired infrastructure is not in place.
If you require emergency egress functionality (manual push-to-exit without credential verification), coordinate the SPDT relay configuration with your access control platform to ensure the fail-safe logic aligns with your life-safety code obligations.
Frequently Asked Questions
Q: Does the SDC 482A4U work with standard electronic strikes and mag locks?
A: Yes. The SPDT relay can energize or de-energize both 12VDC and 24VDC strike/lock hardware. Confirm your lock voltage matches your power supply output; the 482A4U itself runs on 28VDC but your actuators may require a separate supply.
Q: What happens if the TCP/IP network connection drops?
A: The 482A4U can operate in stand-alone mode using locally stored credentials if the network is unavailable. Coordinate your failover and offline-credential sync policy with your access control administrator during commissioning.
Q: Can I use the 482A4U with a wireless reader?
A: The controller itself is wired (28VDC power and TCP/IP Ethernet), but you can pair it with a wireless reader that connects to your network separately. Ensure your wireless reader supports the same credential technology (DESFire, MIFARE, NFC, or Prox) as the 482A4U expects.
Q: Is the 482A4U suitable for outdoor installations?
A: The 482A4U is designed for indoor use. If you need outdoor push plate controls, consult your integrator about outdoor-rated door control alternatives or weatherproof enclosures.
Q: How many credentials can the 482A4U store locally?
A: The controller supports up to 250,000 user credentials. In a centralized architecture, credentials are synced from the access control server; the local capacity ensures operation if the network is temporarily unavailable.
Q: What's the maximum number of doors one 482A4U can control?
A: A single unit manages up to 63 doors. For larger facilities, deploy multiple controllers networked via TCP/IP, managed by a central access control platform.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SDC 482A4U is a workhorse for mid-market access control integrations where you need a networked, wired push plate controller that doesn't force you into a single vendor's ecosystem. Its OSDP compliance is the real win here — it means you're not locked into proprietary firmware or locked-in gate hardware. The 250,000-credential capacity and 63-door limit tell you this is built for campus-scale deployments, not single-entry solutions.
Technical Highlights:
- SPDT Relay Logic: Double-throw switching gives you flexibility in fail-safe vs. fail-secure configurations — you can energize on valid credential or de-energize on timeout, depending on your door hardware and life-safety requirements.
- 28VDC Operating Voltage: Standard in commercial access control, but requires a dedicated power supply. Budget for a separate 28VDC PSU and UPS backup if the door must function during power loss.
- OSDP + TCP/IP Dual Protocol: OSDP handles real-time credential validation and door events; TCP/IP carries audit logs and status to your management console. This dual-path architecture reduces latency compared to pure IP-over-serial designs.
Deployment Considerations:
- The 28VDC power requirement means you can't PoE-power this unit — plan your low-voltage distribution carefully in retrofit projects, especially if cabling runs are long or conduit is congested.
- The 63-door limit per controller is generous for single buildings but hits a ceiling fast in campus deployments. If you're planning for 200+ doors, size your network architecture and controller count upfront — don't assume one unit will scale.
The 482A4U is strongest in corporate campuses, healthcare facilities with mixed reader technologies, and retail chains where you need unified credential management across dozens of entry points. Skip this if you're looking for wireless-first architecture or standalone (non-networked) door control — its value is in the OSDP standardization and centralized credential sync.
