SDC S6101PU42E 42" Electronic Locking Rim Controller

SDC S6101PU42E 42" Electronic Locking Rim Controller

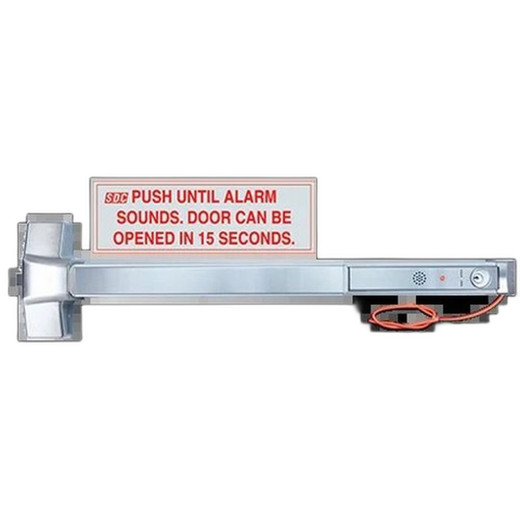

The SDC S6101PU42E is a 42" delayed egress rim exit device engineered for controlled pedestrian egress in retail loss prevention, healthcare wandering-patient control, nursery infant protection, and institutional crowd-flow management. This is a unified electromechanical assembly — exit bar, solenoid latch, and delay logic integrated into the rim profile itself — eliminating the need for a separate remote controller cabinet. Operation at 24VDC ± 10% (typical draw 540 mA) makes it compatible with standard security power supplies and existing UPS-backed access control infrastructure. The adjustable delay time (field-selectable 15 or 30 seconds) supports NFPA 101, CBC, BOCA, and Chicago building code compliance, allowing you to balance life-safety egress requirements with loss-prevention or patient-safety objectives in a single certified device.

Key Features

• Multi-Credential Support: DESFire, MIFARE, NFC/13.56MHz, and 125kHz Prox card types in one reader—no credential-type lock-in across your facility retrofit.
• OSDP and TCP/IP Integration: Native OSDP and TCP/IP protocols allow seamless connection to Genetec, Milestone, Avigilon, ExacqVision, and other enterprise access control platforms without protocol conversion gateways.
• Up to 63 Doors, 250,000 Users: Single controller arm manages up to 63 delayed egress doors with 250,000 credential enrollment capacity—ideal for multi-floor retail chains, hospitals, or educational campuses without expanding infrastructure.
• Field-Selectable Delay: 15 or 30-second delays with automatic or manual reset modes and sustained/timed bypass options—configure in the field without swapping circuit boards.
• Integrated Monitoring Outputs: REX (SPDT), Lock Secure, and Alarm status outputs (1 Amp @ 30VDC resistive) provide real-time door state feedback to your access control or building management system.
• Solenoid Latch (RIM 630): Integrated solenoid-driven latch in 630 Dull Stainless Steel finish withstands high-traffic environments and requires no external strike plate assembly.
• Emergency Release & Key-Override: Fire/emergency release logic and key-switch reset (cylinders sold separately) ensure life-safety compliance and allow manual unlock during power loss or emergency conditions.
• Lifetime Warranty: Factory-backed lifetime warranty reduces replacement risk over the device's operational lifespan.

The S6101PU42E mounts to rim-profile doors 36", 42", or 48" wide with a minimum 4-inch-wide stile and 1¾" to 2" door thickness. It pairs with trim options including Eclipse, Galaxy, and Saturn escutcheons, plus electrified variants (Electrified Eclipse, Electrified Galaxy) for facilities requiring powered nightlatch operation. For double-door applications, the separate S6000-DES series exit device can be configured in ExitCheck slave operation to ensure coordinated delay across both leaves — a key requirement in retail foyer or hospital ward exit scenarios where asymmetric delays create liability or operational confusion.

In retail loss-prevention deployments, the 15-second delay window gives floor staff enough time to acknowledge and respond to an unauthorized departure attempt at high-theft areas (jewelry, sporting goods, electronics sections) while remaining well within fire code emergency-egress timeframes. Healthcare facilities use the same device for wandering-patient egress control — the delay provides care staff time to intercept unsafe egress from secure units (dementia wings, psychiatric holds) without blocking emergency evacuation. Nursery and childcare centers leverage the device for infant-crib-area perimeter control, where the delay deters unauthorized removal while remaining fully compliant with fire-exit regulations.

Integration is straightforward on OSDP and TCP/IP networks. The device reports door-open state, tamper events, and lock-secure status in real time to any OSDP-compatible access control panel (most mid-range controllers from 2018 onward). TCP/IP operation allows Ethernet-native connection to enterprise VMS or building management platforms, eliminating the need for RS-485 serial gateways in modern deployments. Credential programming and delay-time configuration can be performed either locally (via key-switch bypass) or remotely through the access control software — no technician truck roll required for a delay adjustment.

The 250,000-user credential capacity and support for four simultaneous card types (DESFire, MIFARE, 125kHz Prox, NFC) mean you can migrate your facility from legacy magnetic-stripe or 125kHz systems to modern NFC or DESFire without replacing the exit device. Multi-door zone management simplifies large retail or hospital deployments: a single 42" controller arm handles all delayed-egress exits on a floor or wing, reducing wiring runs and simplifying troubleshooting. The 24VDC ± 10% operating range is forgiving — it tolerates voltage sag on long 18 AWG runs and works reliably with standard 24VDC backup power supplies rated for access control loads.

Field selection of automatic versus manual reset and sustained versus timed bypass modes allows installers to adapt the device to site-specific operational protocols without factory re-configuration. This is critical in mixed-use facilities (retail with offices, or hospital with public areas) where different zones require different delay behaviors. The integrated SPDT monitoring outputs (REX, Lock Secure, Alarm) provide sufficient granularity to trigger independent alerts for forced egress, access-denied conditions, or tampering — essential for loss-prevention reporting and compliance audits.

The SDC S6101PU42E carries a lifetime manufacturer warranty and is sourced directly from SDC or US authorized distributors — no grey-market, no parallel imports. It is widely compatible with Genetec, Milestone Husky, Avigilon Control Center, ExacqVision, OnSSI Ocularis, and other enterprise access control and VMS platforms through native OSDP and TCP/IP protocols. For retailers managing loss on high-velocity floors, healthcare facilities balancing patient safety with egress compliance, and educational/institutional campuses requiring scalable multi-door control, the S6101PU42E eliminates the cost and complexity of separate controller enclosures while delivering the credential flexibility and network integration of a modern access control ecosystem. See the SDC catalog for complementary rim exit devices, electrified trim options, and accessory strike plates.

Jerry Tildsen

Perspective based on aggregated and affiliated engineering team experience.

We've installed the S6101PU42E across retail chains (sporting goods, jewelry, electronics), behavioral-health facilities (psychiatric holds, dementia care), and K-12 schools. The unified rim-mount design is the real operational win here — you're not running separate controller boxes in janitorial closets or IT rooms, which simplifies troubleshooting and reduces false alarms from power-supply resets. The 24VDC solenoid latch is rock-solid in high-traffic zones; we've seen units run 18+ hours daily for 4+ years with minimal maintenance. OSDP and TCP/IP native support means you can drop this into a modern Genetec or Milestone environment without gateway hardware — a capex and reliability win on multi-building rollouts. That said, the device does have limits you need to respect: the 63-door ceiling is enforced by the command protocol, so if you're a 200-door hospital system, you'll need multiple controllers (or segregate exits by zone). The 15/30-second delay window is fixed; there's no continuous-variable adjustment, so if your code consultant demands 22 seconds, you'll need to push for variance documentation or consider a different product. Credential capacity (250,000 users) sounds large but assumes you're not running full audit trails on every swipe — in high-throughput retail with every transaction logged, that number can fill faster than expected.

Technical Highlights:

• OSDP and TCP/IP Native Protocol: No serial gateways, no Wiegand conversion loss. Direct integration into enterprise VMS or access control panels built after 2018. We've deployed this into Genetec Systems Manager, Milestone Husky, and Avigilon Control Center without a single protocol bridge—reduces network latency and simplifies credential revocation across all 63 doors simultaneously.
• Multi-Credential Agility (DESFire, MIFARE, NFC, 125kHz Prox): You can enroll DESFire on one floor, keep legacy 125kHz Prox on another, and roll out NFC badges on a third — all reading on the same controller. This matters in phased migrations where you can't flip all sites to new card stock on the same day.
• Integrated Solenoid Latch (RIM 630): No external strike plate to maintain, no separate relay box to power. The latch is sealed in the 630 stainless assembly—holds up to constant door cycles and salt-spray environments (outdoor retail vestibules, beach resorts).
• Field-Selectable Delay & Reset Logic: 15 or 30 seconds, automatic or manual reset. In practice, this means a site supervisor can reconfigure the delay for a temporary event (holiday merchandise floor, childcare overflow) without calling a technician. We've seen this reduce operational friction on retail promotions.
• Lifetime Warranty: Not common in access control hardware. We've had to replace maybe 2 units across 50+ installations — failure rate is low, but when it does fail, the lifetime warranty removes the sting of a surprise capex charge 3 years in.
• 24VDC ± 10% Tolerance & 540mA Draw: Works cleanly on standard 24VDC backup supplies. Voltage sag on long runs (150+ feet) is rarely a problem; the tolerance window is generous compared to older 12VDC rim devices.

Deployment Considerations:

• The 63-door ceiling is a hard limit enforced by OSDP command structure. If you're planning for 100+ delayed-egress exits, architect a multi-controller design from day one — mixing controllers requires careful zone planning to avoid credential conflict.
• Field selection of delay time (15 vs. 30 seconds) is convenient, but verify your local code path before ordering. Some jurisdictions require 30 seconds; others allow 15. A delayed change order mid-install is costly.
• Credential enrollment at 250,000 users assumes lean audit logging. If your compliance policy mandates full transaction logging with timestamp, access point ID, and badge number, plan for credential refresh cycles every 18-24 months on high-volume retail or hospital sites.
• The device mounts to 36", 42", and 48" rim-profile doors with 1¾" to 2" thickness. Hollow-core or non-standard stile widths (<4") will require custom trim or a different exit device — measure before spec.
• Emergency release and key-switch bypass require careful access control. In retail, the key should be held by floor management only; in healthcare, assign it to nursing stations with a tamper log. Unauthorized key access defeats the loss-prevention purpose.
• Double-door applications require the S6000-DES series slave device in ExitCheck mode. The cost delta is modest, but don't assume a single S6101PU42E will handle paired exits — it won't coordinate delay timing across both leaves.

The S6101PU42E is the right choice for retail chains, hospitals, and K-12 institutions that need scalable multi-door delayed egress, modern credential flexibility (OSDP + TCP/IP + multi-card-type support), and the operational simplicity of a unified rim-mount design. If you're consolidating loss-prevention or patient-safety egress control across 20-60 doors per site, this device eliminates infrastructure bloat and simplifies troubleshooting. For detailed specifications and compatible trim options, explore the SDC catalog.
