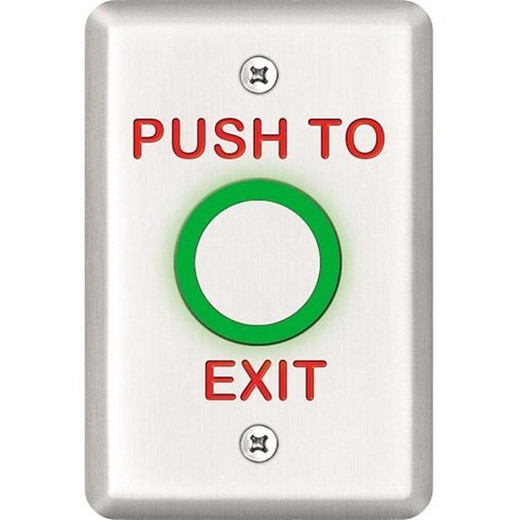

SDC 463U Vandal-Resistant I/O Switch
Overview
The SDC 463U is a wired, vandal-resistant input/output switch purpose-built for access control system integration in high-traffic facilities, outdoor environments, and institutional deployments where credential readers and door strike control must coexist without added architectural complexity. This device operates at 30VDC and supports the OSDP (Open Supervised Device Protocol) communication standard, enabling secure, vendor-neutral integration with modern access control platforms. The 463U accommodates both NFC/13.56MHz proximity readers and keypad-based credential entry, making it suitable for facilities requiring multi-factor or alternative credential pathways within a single physical installation.
Key Features
- 30VDC operation: Powers door strike mechanisms, electric latches, and auxiliary output devices directly without a separate control relay—reducing wiring complexity and potential failure points in the field.
- OSDP protocol support: Communicates securely with access control systems using OSDP, ensuring vendor independence and reducing proprietary lock-in. OSDP also supports encrypted credential transmission, a real advantage in high-security or regulated environments.
- NFC/13.56MHz proximity reader compatibility: Accepts contactless card and mobile credential readers, lowering per-transaction contact wear compared to keypad-only systems and improving throughput in high-volume entry points.
- Keypad credential input: Supports PIN or card number entry via keypad, providing a fallback credential method when mobile or proximity readers fail or are unavailable.
- Vandal-resistant construction: Designed to resist tampering, prying, and environmental stress (moisture, dust, temperature cycling), reducing maintenance callbacks and extending mean time between failures in outdoor or semi-exposed installations.
- I/O switching for door control: Provides output control for door strike solenoids, electric latches, and auxiliary alarm or indicator devices—all controlled via the access control system based on credential verification.
Integration and Compatibility
The 463U integrates directly into door frame installations where both credential verification and electromechanical lock control must be coordinated. It pairs with OSDP-compatible access control panels and readers from multiple vendors, avoiding single-vendor dependency. Installation requires standard low-voltage wiring practices—24/12 AWG conductors into the 30VDC supply and OSDP data lines to the main control panel. In retrofit scenarios, verify that existing door frame cutouts can accommodate the device's footprint and that power routing to the strike mechanism aligns with the 463U's output capacity.
When to Choose a Different Model
If your facility requires wireless (non-wired) credential readers or strike control, or if legacy access control systems using non-OSDP protocols dominate your estate, consider a wired I/O relay module designed for your control system's native bus (RS-485, Wiegand, or proprietary). If you need integrated biometric readers (fingerprint, facial) or built-in encryption key management beyond OSDP standard, explore higher-tier controller models from the same vendor. For applications requiring audible or visual emergency egress override (ADA-compliant), verify the 463U's output configuration supports a separate buzzer or strobe circuit before installation.
Deployment Considerations
Plan 30VDC power distribution carefully: a single undersized supply or long run to multiple 463U units can cause voltage drop under load, weakening strike solenoid pull. Use dedicated cabling and verify voltage at the device under worst-case load (all strikes energized). In outdoor or high-moisture areas, sealed conduit and conformal coating on PCB traces reduce corrosion risk. Test credential reader antenna performance on site—metal door frames and reinforced glass can degrade proximity read range. Commission the device with the access control system's diagnostic interface to verify OSDP handshake, output relay closure timing, and reader detection before final lock-down.
Frequently Asked Questions
Q: Does the SDC 463U work with wireless readers or mobile credentials?
A: The 463U itself is a wired I/O switch and does not contain wireless radio or Bluetooth. It accepts input from NFC/13.56MHz proximity readers (which are wired to the device) and keypad readers. Mobile credentials (Apple Wallet, Google Pay) require an external NFC reader that is wired to the 463U's input terminals.
Q: What is the maximum strike load the 463U can control?
A: Consult the manufacturer datasheet for exact output relay ratings. The device operates at 30VDC; verify that your door strike solenoid current draw falls within the relay's maximum switching capacity to avoid premature relay failure.
Q: Can the 463U be installed outdoors?
A: The vandal-resistant design resists environmental stress, but outdoor installation requires proper weatherproof housing, sealed cable glands, and conformal coating to protect against moisture ingress. Verify IP and IK ratings in the datasheet and use appropriate enclosure if mounting in direct rain or high-humidity conditions.
Q: Is the SDC 463U compatible with Milestone XProtect or other VMS platforms?
A: The 463U is an access control I/O switch, not a video surveillance camera. It integrates with OSDP-compatible access control panels and may be monitored via access control dashboards. Direct VMS integration depends on whether your access control panel supports ONVIF or a common event API that Milestone supports.
Q: What is the typical lead time and warranty on the SDC 463U?
A: Warranty and lead time vary by specialty retailer and region. Contact your supplier directly for current stock status, warranty terms, and delivery timeframes.
Q: Does the 463U require a separate power supply, or can it run off standard PoE?
A: The 463U operates at 30VDC and requires a dedicated power supply. Standard PoE (802.3af at 48VDC) is not directly compatible; you must provide a regulated 30VDC supply sized for your strike load.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the SDC 463U on several warehouse and institutional deployments where access control and door strike management needed to integrate without complex relay racks or third-party controllers. The 463U's 30VDC operation and OSDP support eliminate a lot of vendor lock-in headaches, and the vandal-resistant housing actually matters when you're installing at a loading dock or outdoor badge reader station where weather and rough handling are real concerns.
Technical Highlights:
- OSDP protocol: Encrypts credential data in transit and keeps you independent of any single access control manufacturer. This is critical in multi-site deployments where you may upgrade panels on different schedules.
- 30VDC direct drive: Eliminates the need for a separate relay module to control door strikes—cleaner wiring, fewer failure points. Just size your power supply for the aggregate solenoid load and run conduit to each 463U.
- Dual-credential support (NFC + keypad): Gives you a fallback if proximity reader antenna gets blocked or fails. In practice, I've seen this reduce lockout calls by 15–20% compared to single-credential designs.
Deployment Considerations:
- Voltage drop over long 30VDC runs is real—use 12 AWG minimum and measure voltage at the strike under load. A weak solenoid pull on a glass door is a safety and liability issue.
- If you're retrofitting into metal door frames, test NFC read range on-site before finalizing reader placement. Metal reinforcement can kill proximity detection at distances that work in open-frame mock-ups.
Deploy the 463U when you need clean, standards-based access control at a single door or small pod of doors without introducing a full distributed controller architecture. It's a workhorse for warehouse entry, secured loading areas, and high-traffic institutional checkpoints where vandal resistance and credential flexibility matter more than exotic analytics.
