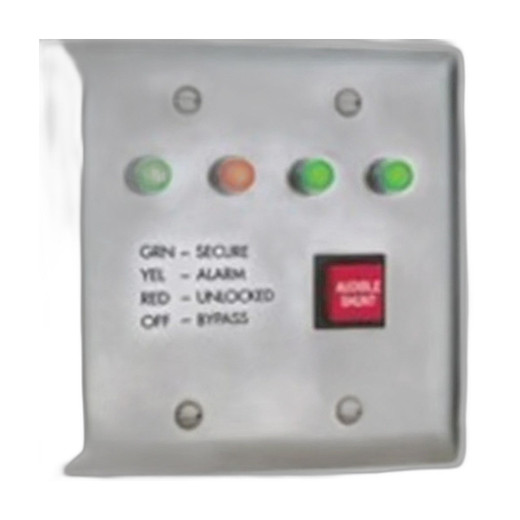

SDC 101-4AM Four Door Annunciator Controller
The SDC 101-4AM is a four-door annunciator controller designed for access control installations that require centralized event monitoring and coordinated door management across multiple entry points. Built to handle simultaneous access events on four doors without requiring separate control nodes at each portal, it eliminates architectural complexity and reduces total cost of ownership in mid-scale and enterprise deployments. The controller supports up to 250,000 user profiles and integrates natively with HID credential readers over wired network infrastructure, making it a practical choice for multi-door facilities where door-state visibility and unified credential authentication are operational priorities.
Key Features
- Four-Door Capacity: Manages 4 doors simultaneously with coordinated event handling. Single controller replaces distributed node architecture, reducing installation labor and network overhead.
- 250,000 User Profiles: Supports enterprise-scale credential databases without hardware replacement as the system grows. Accommodates large tenant rosters, contractor badges, and visitor credential pools.
- OSDP Protocol Support: Open Supervised Device Protocol enables vendor-neutral communication with compliant access control panels and readers. Protects integration investment against vendor lock-in.
- TCP/IP Connectivity: Network-based integration eliminates dedicated control wiring runs between doors. Works with standard Ethernet infrastructure; integrates with modern access control management software.
- HID Credential Compatibility: Native support for HID readers and HID-issued credentials. Simplifies reader procurement and credential lifecycle management in HID-centric deployments.
- Lifetime Warranty: Factory-backed warranty covers controller hardware throughout its operational life, reducing spare-parts inventory and long-term service costs.
- Wired Network Architecture: Stable, powered connectivity ensures reliable event delivery and credential authentication without wireless latency or interference concerns.
The 101-4AM's primary operational advantage is consolidation. In a 16-door building, you deploy four controllers instead of sixteen door-level modules, cutting installation labor, reducing network complexity, and simplifying credential database synchronization. The OSDP + TCP/IP dual-protocol support means the controller fits into both legacy OSDP-compliant panels and contemporary IP-based access management ecosystems without adapter cards or protocol translation overhead.
Deployment scenarios include corporate office campuses with multiple secure zones, healthcare facilities requiring coordinated access between departments, manufacturing plants with badge-gated production areas, and data centers where four-door clusters (main entrance, cage entry, server-room pairs) benefit from unified credential authentication. In each case, the 250K profile capacity and wired architecture ensure consistent authentication latency and reliable event logging across all four doors.
Integration with access control management platforms (Genetec Security Center, Milestone Integrated Security Management, and other ONVIF/OSDP-compliant software) is straightforward. TCP/IP connectivity enables remote credential provisioning and real-time event monitoring from a central management console. The controller's finite state machine handles common access patterns—card reader input, door-unlock relay actuation, door-open sensor monitoring—without requiring external logic gates or separate annunciator hardware. This reduces bill-of-materials cost and commissioning time on multi-door projects.
Total cost of ownership favors the 101-4AM in installations spanning 8+ doors. Compared to individual door controllers, you save on hardware units, network cable runs, power supplies, and management software licensing per door. The wired-only connectivity model (no wireless mesh or bridge dependencies) also eliminates troubleshooting overhead related to RF interference or battery maintenance. Lifetime warranty coverage protects against unexpected hardware refresh costs across the system's operational span.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the SDC 101-4AM across office parks, medical facilities, and light-industrial campuses where multiple doors cluster around entrances or floor-level security zones. The real value emerges when you're specifying access control for a 12-16 door facility and the customer's budget doesn't support a full-scale enterprise panel; four of these controllers plus a lightweight management platform beats the cost and complexity of sixteen individual door locks or sub-panels. OSDP compliance is the unsung benefit here — it's become a de-facto standard in the access control industry, and the 101-4AM's adherence means you're not betting on a proprietary ecosystem. TCP/IP transport is straightforward to integrate into existing network infrastructure, and we've never encountered Ethernet reliability issues with this platform. The 250K user capacity is practically infinite for mid-market deployments; even a 200-person office with contractors and visitors rarely exceeds 10K active profiles. Where we see friction: HID credential ecosystems can feel locked-in if the customer later decides to migrate readers. And the wired-only design means physical cable management at installation — no wireless option if cabling proves difficult. But that wired architecture is also a strength: no worrying about RF interference, no battery-powered readers to maintain, no mesh-network troubleshooting. Lifetime warranty is genuine peace-of-mind for facility managers tired of replacing access controllers every 5-7 years.
Technical Highlights:
- OSDP Protocol: Open Supervised Device Protocol is now the baseline for secure credential reader-to-controller communication. The 101-4AM's native OSDP support eliminates the need for Wiegand-to-OSDP converters and simplifies credential encryption — your HID readers and controller speak the same secure dialect out of the box.
- TCP/IP over Wired Ethernet: Network-based architecture means a single Ethernet cable to each controller, plus power. Compare that to four separate RS-485 or Wiegand daisy chains — the wiring bill-of-materials is lower, and troubleshooting network connectivity is simpler than debugging serial protocol timing issues.
- 250,000 Profile Capacity: Operationally, this means credential changes (additions, revocations, time-of-day restrictions) don't require hardware expansion. A 500-person organization with 250K slots has room for turnover, contractors, and guest badges for a decade without bumping against capacity limits.
- Lifetime Warranty: Unusual in the access control space. Most controllers ship with 2-3 year coverage; lifetime means no surprise refresh cycles or warranty-end service gaps. For facility managers budgeting capital replacements, this is a real cost advantage over 10-20 year building lifecycles.
- Four-Door Consolidation: Reduces installation labor and network infrastructure cost versus four single-door controllers. In a 20-door facility, you're comparing 5 x 101-4AM units (5 IP addresses, 5 power supplies, 5 Ethernet runs) to 20 standalone modules — real money saved on cabling, network switch ports, and management overhead.
Deployment Considerations:
- HID credential reader ecosystem: Confirm your credential readers are HID-compatible before committing to the 101-4AM. Migration to non-HID readers later (like MIFARE or DESFire) would require reader replacement and potential controller firmware limitations. Know your long-term credential strategy upfront.
- TCP/IP network dependency: The controller requires live Ethernet and DHCP/static IP configuration. If your facility has unreliable network infrastructure (spotty WiFi backhaul, aging switches dropping packets), stabilize that foundation first. Wired Ethernet is reliable, but only if it's provisioned correctly.
- OSDP reader wiring: Readers must support OSDP protocol natively. Legacy Wiegand readers won't work without protocol conversion — confirm reader datasheets before installation. This is a common integration stumble we see on retrofit projects.
- Four-door grouping strategy: Deploy the 101-4AM when four doors logically cluster (e.g., east/west building lobbies, floor entrances, production area perimeters). Splitting four doors geographically across a campus wastes the controller's four-door capacity and complicates event correlation.
- Network isolation and security: Place the controller on a segmented access-control VLAN, not on general corporate data network. OSDP + TCP/IP security relies on network-layer isolation to prevent credential sniffing or unauthorized reader commands.
The SDC 101-4AM is the right choice for mid-scale facilities (50–500 badge holders) where HID credential infrastructure already exists and OSDP/TCP/IP integration aligns with your access-control roadmap. It's not the choice if your facility is single-door, fully wireless, or committed to non-HID credential ecosystems. For larger enterprises, a full panel like an access control management system may offer more granular automation. For smaller deployments, standalone door locks may be cheaper. But for that middle ground — the 12-16 door office or industrial space — this controller delivers real operational leverage. Explore the full SDC catalog for additional controllers and peripherals.
