Description

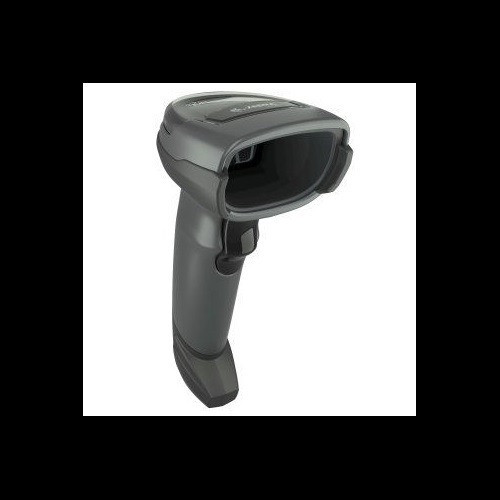

Zebra DS4608-DL00007ZZWW Standard Range Imager

Overview

The Zebra DS4608-DL00007ZZWW is a corded area imager designed for retail environments, specifically addressing the need for rapid transaction processing at checkout and returns desks. Its extended scan range allows associates to capture items directly from a customer's shopping cart without leaving their workstation, directly contributing to reduced queue times and improved customer satisfaction. This model leverages Zebra's PRZM Intelligent Imaging technology and a high-resolution megapixel sensor, powered by an 800 MHz microprocessor, to ensure instant capture of even challenging barcodes.

Compatibility

The DS4608-DL is engineered to integrate seamlessly into existing retail workflows. It is designed to capture a wide variety of 1D and 2D barcodes, including UPC codes up to 28 inches away, driver's licenses for returns, mobile coupons at checkout, and small barcodes found in departments like jewelry. Its patented rear engine design allows it to read wider barcodes at distance compared to other scanners. DataCapture DNA software suite and industry-standard management tools facilitate easy integration and deployment across diverse retail systems.

Installation Notes

This scanner is designed for plug-and-play operation with standard USB interfaces. Its durable construction is intended for the demanding retail environment. The extended scan range of up to 28 inches for UPC codes means associates can easily reach items in a customer's shopping cart without leaving the cashwrap, improving checkout efficiency.

What's in the Box

  • 1x DS4608-DL00007ZZWW Standard Range Imager
  • 1x USB Cable
Expert Analysis
Specifications
Dimensions: 6.5 in. H x 2.6 in. W x 3.9 in. D
Weight: 5.7 oz. / 161.9 g
Input Voltage Range: 4.5 to 5.5 VDC
Operating Current: 340 mA (typical)
Standby Current: 150 mA (typical)
Decode Capability: 1D, 2D, DotCode, Dotted DataMatrix
Image Sensor: 1280 x 800 pixels
Minimum Reflective Difference: 15%
Skew Tolerance: +/- 60°
Pitch Tolerance: +/- 60°
Roll Tolerance: 0° - 360°
Operating Temperature: 32.0° to 122.0° F / 0.0° to 50.0° C
Storage Temperature: -40.0° to 158.0° F / -40.0° to 70.0° C
Humidity: 5% to 95% RH, non-condensing
Drop Specification: 6.0 ft./1.8 m to concrete
Tumble Specification: 2,000 tumbles in 1.5 ft./0.5 m tumbler
Environmental Sealing: IP52
Electrostatic Discharge Immunity: +/- 15 KV Air, +/- 8 KV Direct, +/- 8 KV Indirect
Ambient Light Immunity: 0 to 10,000 foot candles/0 to 107,000 Lux
Host Supported: USB, RS232, TGCS (IBM) 46xx over RS485
User Indicators: Direct Decode Indicator, Good Decode LEDs, rear view LEDs, beeper
Warranty: Five Years
