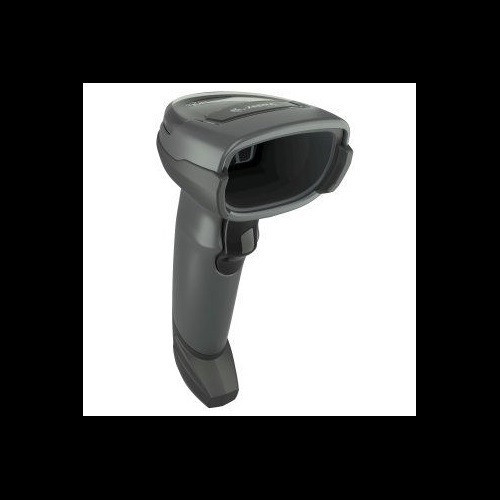

Zebra DS4608-HL00007ZZWW High-Density Area Imager with Driver's License Parsing
The DS4608-HL00007ZZWW is Zebra's high-density corded area imager purpose-built for retail environments where a single scanner must handle everything from tiny jewelry barcodes to driver's license age-verification at returns desks — without swapping hardware mid-shift. Part of Zebra's Zebra DS4600 Series, this Twilight Black unit ships with full driver's license (DL) parsing capability baked in, so cashiers capture and auto-populate loyalty, returns, and age-verification fields with one trigger press instead of manually keying data.
Overview
Retail checkout lanes and service desks impose a wide range of scanning demands: long-reach UPC reads on items still in a cart, dense 2D codes on mobile coupons, and fine-pitch barcodes on jewelry tags — all in a single shift. The DS4608-HL00007ZZWW addresses this with Zebra's PRZM Intelligent Imaging technology, a 1280 x 800 pixel image sensor, and an 800 MHz microprocessor that together deliver instant decode on even degraded or damaged symbols. Unlike general-purpose barcode scanners, the HL variant adds hardware-level driver's license parsing, eliminating a separate ID-reading peripheral at the returns counter.
Key Features
- Driver's License and OCR Parsing: The HL variant captures and parses driver's license data in a single trigger press — age-verification, loyalty enrollment, and returns monitoring all pull structured data automatically. OCR-A, OCR-B, MICR, and US Currency formats are also supported, covering travel documents and financial instruments without a secondary device.
- High-Density Decode Capability: Minimum element resolution of 3.0 mil for Code 39 and 5.0 mil for DataMatrix means the scanner resolves the fine-pitch barcodes found on jewelry tags and pharmaceutical labels that standard-range imagers routinely miss.
- PRZM Intelligent Imaging on a 1280 x 800 Sensor: The megapixel sensor and Zebra's patented rear-engine design let the DS4608-HL00007ZZWW read wider barcodes at every distance compared to scanners with a similar field of view — fewer repositioning attempts, shorter transaction times.
- 28-Inch UPC Decode Range: Associates can scan UPC codes up to 28.0 in. / 71.1 cm away, reaching items still in a shopping cart without leaving the cashwrap. That reach is the same benchmark Zebra's DS4308 established — this generation maintains it.
- Broad 1D and 2D Symbology Coverage: Handles Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32, plus DotCode and dotted DataMatrix through cellophane — one scanner covers every label format in a modern retail supply chain.
- Flexible Orientation Tolerance: ±60° skew, ±60° pitch, and full 360° roll tolerance means associates don't need to align the scanner to the barcode. That matters in high-volume lanes where any hesitation adds up across hundreds of daily transactions.
- On-the-Fly Handheld / Hands-Free Switching: Place the scanner in an optional presentation stand and it switches to hands-free mode automatically; pick it up and it reverts to handheld — no settings change, no mode button. Useful at combination checkout/returns stations.
- IP52 Sealing Plus Double-Sealed Optics: IP52 protects against spills and particulate ingress, while a patented double-sealed optical system keeps dust and liquid away from the imager element itself. The recessed scan window resists smudges and scratches that degrade read performance over time.
- 6 ft Drop Rating and 2,000-Tumble Certification: Tested to survive 6.0 ft / 1.8 m drops to concrete and 2,000 tumbles in a 1.5 ft / 0.5 m tumbler — realistic for a POS scanner pulled off a counter multiple times per shift over a multi-year deployment cycle.
- Multi-Interface Host Support: USB, RS232, and TGCS (IBM) 46xx over RS485 — the RS485 interface keeps DS4608-HL00007ZZWW (often searched as DS4608 HL00007ZZWW) compatible with IBM SurePOS and legacy retail POS hardware without an interface converter.
- DataCapture DNA Ecosystem: Zebra's management framework means the DS4600 Series integrates with the same staging, configuration, and remote-management tools used across other Zebra scanning products — no parallel management infrastructure required.
- Five-Year Manufacturer Warranty: A five-year coverage term is unusually long for a corded retail scanner and meaningfully reduces total cost of ownership on large-quantity deployments measured in hundreds of units per store.
Integration and Compatibility
The DS4608-HL00007ZZWW connects via USB, RS232, or IBM 46xx RS485, covering the full range of modern and legacy POS terminals in retail environments. Zebra's DataCapture DNA platform supports point-of-sale peripheral staging and remote management alongside other Zebra devices, so IT teams don't need separate tooling. Operating range is 4.5–5.5 VDC at 340 mA typical (150 mA standby), consistent with standard USB host power — no auxiliary power injector needed. The scanner operates reliably from 32°F to 122°F (0°C to 50°C) and stores safely down to -40°F / -40°C, which covers distribution center receiving docks that see wide temperature swings seasonally.
Frequently Asked Questions
Q: What does the 'HL' variant designation mean on the DS4608-HL00007ZZWW?
A: The 'HL' designation indicates this model includes hardware-level driver's license parsing capability. With one press of the scan trigger, the scanner captures and parses structured data from driver's licenses — useful for age verification, returns monitoring, and loyalty enrollment at retail service desks.
Q: What is the warranty on the DS4608-HL00007ZZWW?
A: Zebra provides a five-year manufacturer warranty on the DS4608-HL00007ZZWW.
Q: What host interfaces does the DS4608-HL00007ZZWW support?
A: It supports USB, RS232, and TGCS (IBM) 46xx over RS485 — covering modern USB-connected POS terminals as well as legacy IBM SurePOS systems without requiring an interface converter.
Q: How durable is the DS4608-HL00007ZZWW for a retail checkout environment?
A: The scanner is rated for 6 ft / 1.8 m drops to concrete and has passed 2,000 tumbles in a 1.5 ft tumbler test. IP52 sealing protects against spills and dust, and a patented double-sealed optical system additionally shields the imager element itself.
Q: Can the DS4608-HL00007ZZWW read barcodes displayed on a customer's smartphone?
A: Yes. The DS4608 Series is designed to scan 1D and 2D barcodes whether printed on a label or displayed on a mobile device screen, including mobile coupons at checkout.
Q: What is the minimum barcode size the DS4608-HL00007ZZWW can resolve?
A: The high-density configuration resolves a minimum element width of 3.0 mil for Code 39 and 5.0 mil for DataMatrix — fine enough for jewelry tags and other small-label applications where standard-range imagers typically fail.
The DS4608-HL00007ZZWW is the variant I'd specify for any retail environment that runs both high-volume checkout lanes and an active returns or age-verification counter — the driver's license parsing eliminates a separate ID reader and the 3.0 mil minimum element resolution handles jewelry and specialty retail labeling without a category-specific scanner sitting beside it. That combination in a single corded unit, backed by a five-year warranty, is hard to argue with on a TCO basis across a 50-plus lane deployment.
Technical Highlights:
- 1280 x 800 Pixel Sensor with PRZM Imaging: The megapixel imager resolves DotCode and dotted DataMatrix through cellophane and captures fine-pitch barcodes down to 3.0 mil — meaningfully wider decode coverage than standard-density retail imagers.
- 28-Inch UPC Decode Range: Associates reach cart items without leaving the cashwrap. At 0.36 lbs / 161.9 g and 6.5 in. tall, the scanner is light enough to hold extended without fatigue during that reach.
- IBM 46xx RS485 Interface: The TGCS interface keeps this scanner viable on legacy IBM SurePOS terminals that are still running in grocery and department store environments — no protocol converter, no middleware shim.
Deployment Considerations:
- The HL variant requires host-side software to consume the parsed DL data fields — confirm your POS or returns management application supports Zebra's DL parsing output format before deploying at scale.
- IP52 covers counter-level spills and dust, but this is not a washdown-rated device — avoid deployments in deli or food-prep counters where direct water exposure is routine. IP52 is sufficient for dry retail; it is not a substitute for IP54 or higher in wet environments.
For a multi-format retail operation — grocery, specialty, or department store — where one scanner needs to handle UPC at distance, tiny barcodes in a jewelry case, mobile coupons, and DL parsing at a service desk, the DS4608-HL00007ZZWW is the right tool. If your environment is purely standard-barcode checkout with no ID or OCR requirement, the SR variant will cost less and cover the lane just as well.
